Connectors in Qntrl | Qntrl | Bridge | Online Help

Connectors

Connectors serve as a repository for storing and organizing the necessary parameters to establish a database connection. The connectivity parameters stored within a connector are utilized to establish a secure connection between the bridge and an in-house database.

When retrieving values from a remote machine's database, it is essential to use both connectors and the bridge in conjunction. This combined usage ensures secure access to the client's database.

A connector can be reused in any bridge to communicate with a remote database.

Create a Connector

To create a new connector:

  1. Click the settings gear iconat the top right of the header bar.

  2. Navigate to Advanced >> Bridge >> choose Connectors.

  3. Click New Connector.

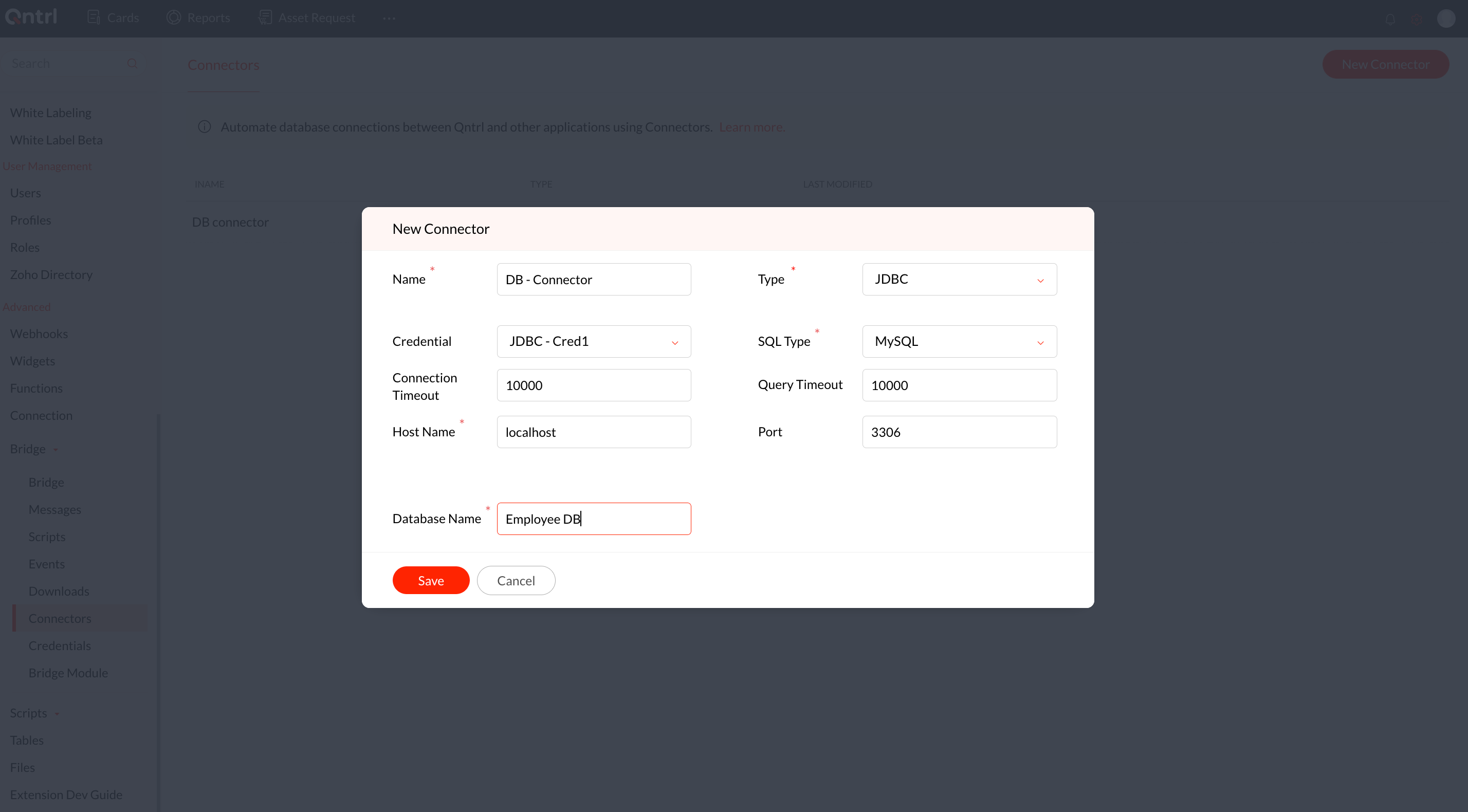

  4. Fill in the New Connector details.

    1. Name: Provide a unique name for the connector.
    2. Connection Type: Select the Type of connection. Currently Qntrl supports only JDBC.
    3. Credential: Select the credential name that has the credentials to connect to the intended database.
    4. SQL Type: Select the type of your SQL database
      1. SQL Server
      2. MySQL
      3. PostgreSQL
    5. Connection Timeout: Specify the maximum timeout limit beyond which the connection will expire.
    6. Query Timeout: Specify the maximum timeout limit beyond which the query execution will be suspended.
    7. Host Name: Enter the hostname in which the DB is hosted.
    8. Port: Enter the port number in which the DB runs.
    9. Database Name: Enter the database name to be connected.
    10. Instance: This field appears if the SQL Type is SQL Server. Enter the DB instance name.
  5. Click Save.



Edit a Connector

To update the details of an existing connector:

  1. Navigate to (settings) >> Advanced >> Bridge >> select Connectors.

  2. In the connectors list page loaded, click on the connector name you want to edit.

  3. Make modifications and click Save.

Delete a Connector

To remove a connector from Qntrl,

  1. Navigate to(settings) >> Advanced >> Bridge >> select Connectors.

  2. Hover over the name of the connector you want to delete, click the mouse over action menu , and select Delete.

  3. Confirm your delete action.
