Implementing a Checklist in Qntrl

To create a new checklist for a transition:

1. Navigate to    and select  Orchestration from the menu.

2. Click on an existing orchestration or create a new one. Learn how to create an orchestration.

• You will land in Step 1: Create Form.

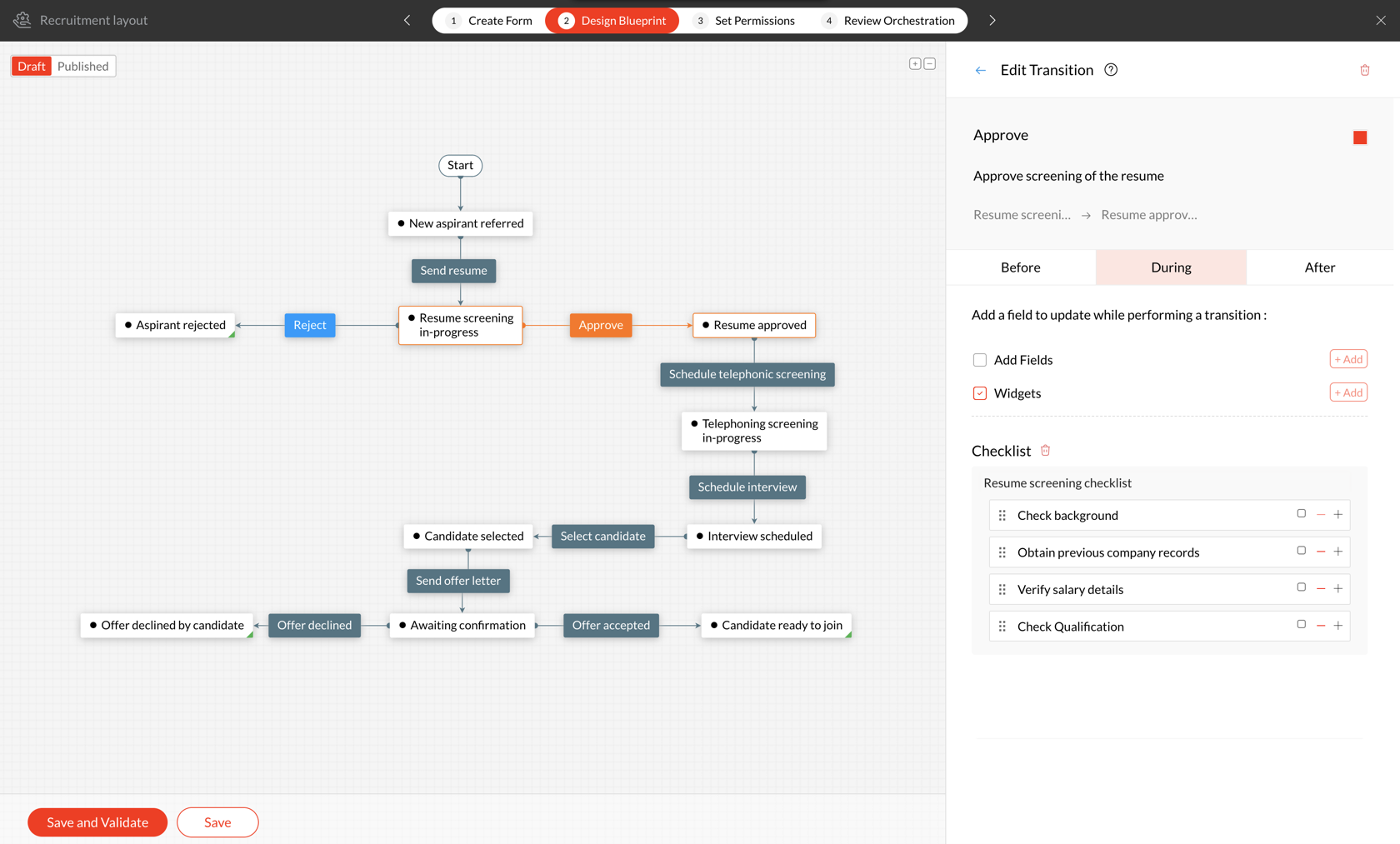

3. Navigate to Step 2: Design Blueprint . Click on a transition to view the transition details in the right panel.

• Under the  During tab ,  tick  Widgets and click the  Add  button.

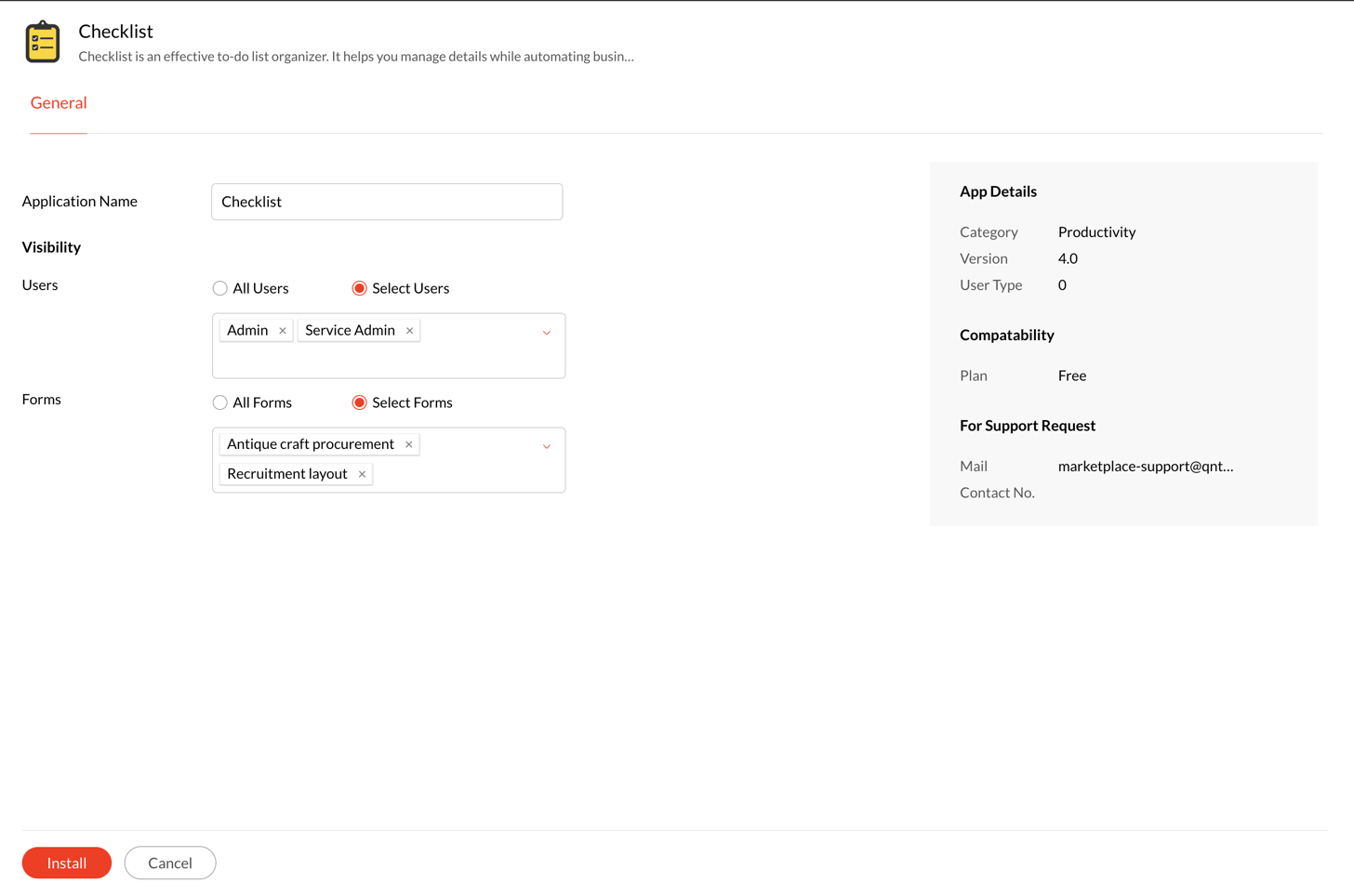

• Under  Select Widget dropdown, choose the application name.

• Enter a title for the checklist and proceed to add checklist items.

• You can add more items to the list by clicking the   icon.

• If you want to mandate an item, enable the check box next to the item.

4. Save  the blueprint.

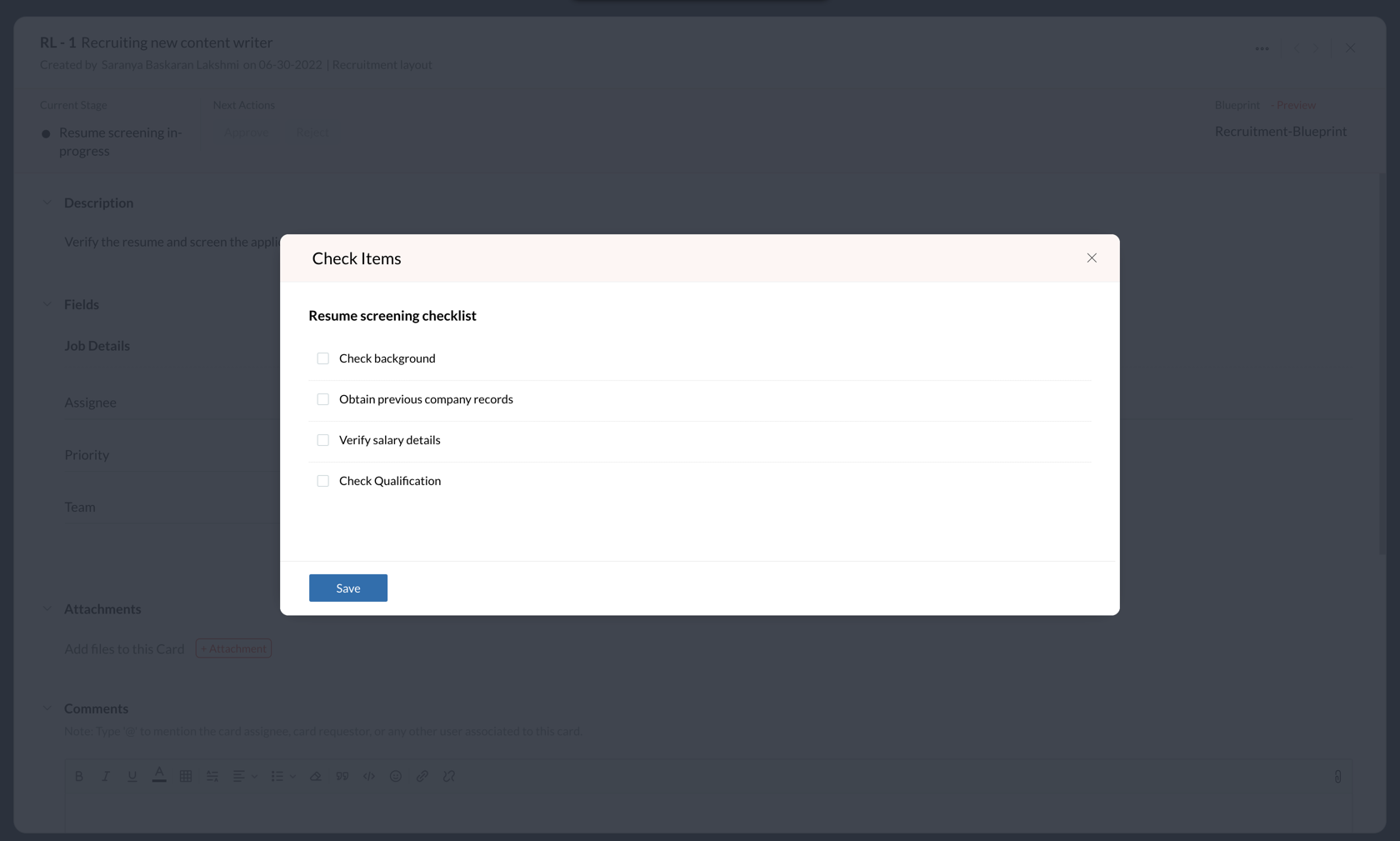

While performing this transition in a card, a pop-up with the created check list items will appear. You will only be able to proceed to the next stage when the mandatory items of the checklist are completed.

• Each checklist can hold 20 items.

• The status of checklist items can be viewed along with card details even after the transition is complete.

• You can also track the progress in the Activities section of Cards.
