How to Set Up Custom Workflows with Deluge Script in Zoho Writer?

How to Set Up Custom Workflows with Deluge Script in Zoho Writer?

Overview

Custom Functions in Zoho Writer allow you to add automation, logic, and integrations to document workflows. Using Deluge scripts, you can program actions to occur immediately after a document is merged, filled, signed, PDF combined or when a workflow is completed.

Where can custom functions be used in automation?

You can execute a custom function in Zoho Writer at various stages of a document workflow:
  • After the merge is complete
  • After the merged document is stored
  • After a user submits a fillable document
  • Once the document signing process is complete
These trigger points allow you to automate follow-up actions such as storing files, updating records, notifying stakeholders, or integrating with other apps and services.

Prerequisites (while using API)

Before using Merge and Email, Merge and Sign, Sign, or Combine and Store APIs, ensure you access the 'Automate' panel from the Writer UI at least once before sending the API request.

Steps to Configure Custom Actions

Step 1: Open Deluge Editor
  • For Merge Templates: Choose the required Merge Output Option > Select Configure Execute Function to open the Deluge editor.

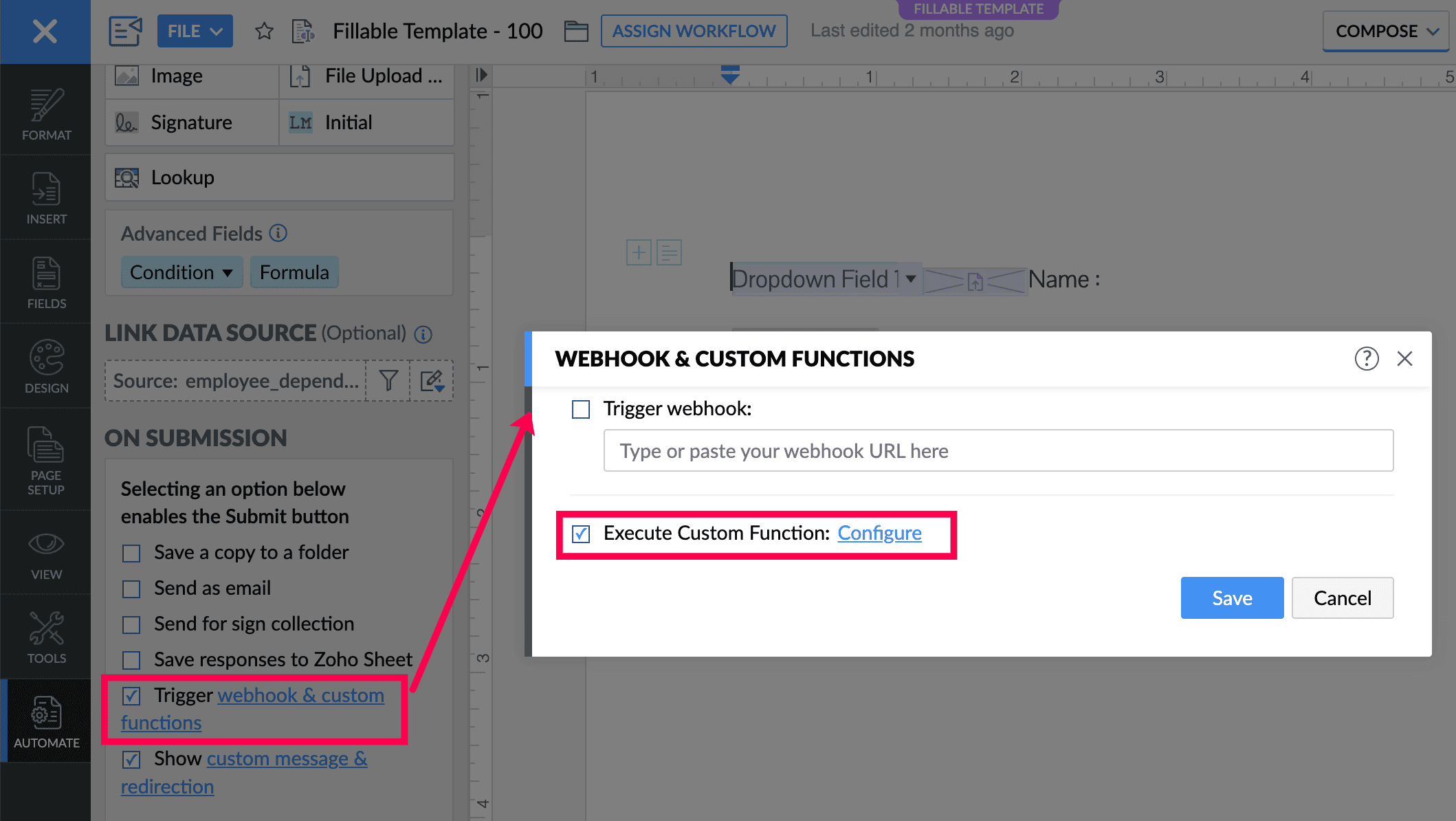

  1. For Fillable Templates: Under "On Submission", choose Trigger Webhook and Custom Function.

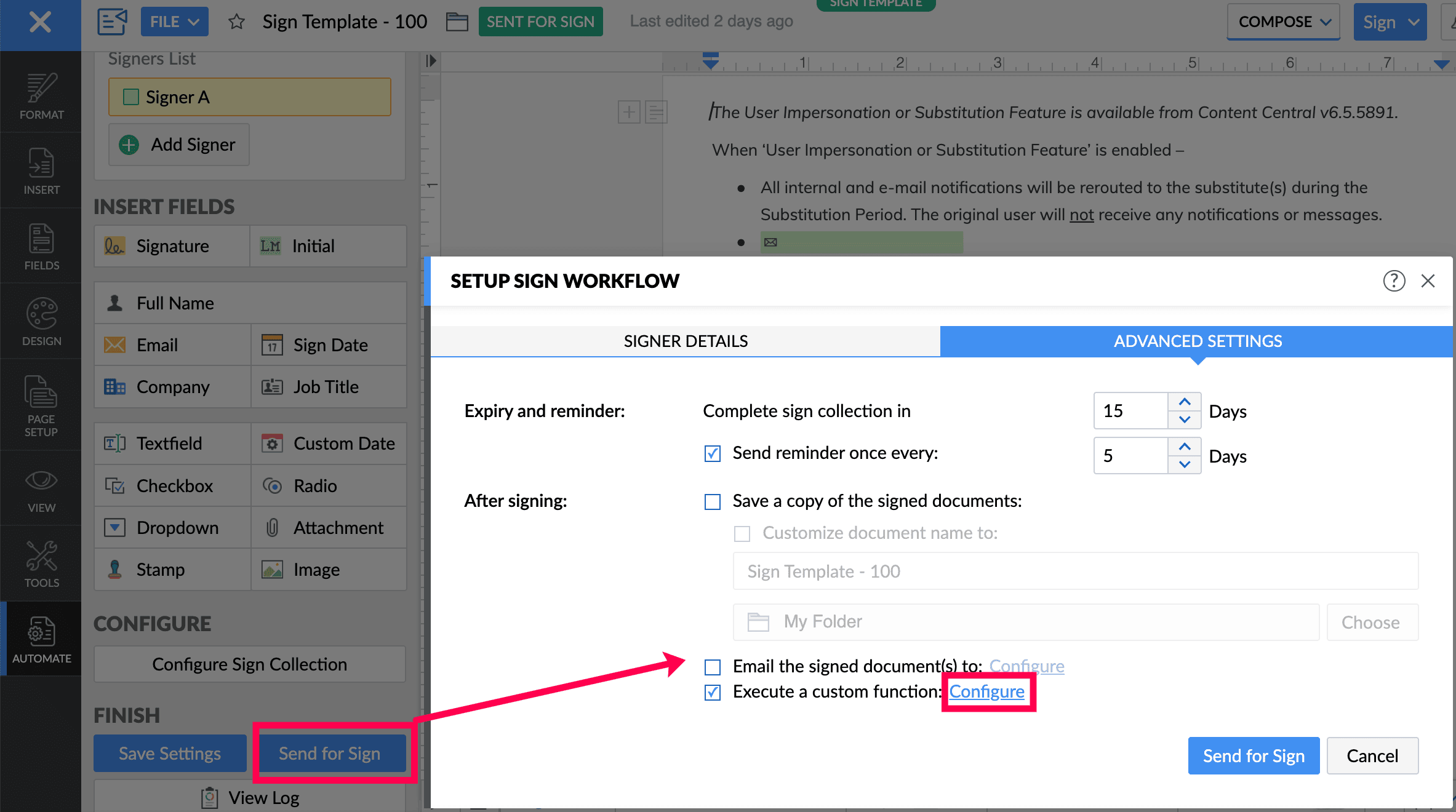

  1. For Sign Templates: Select Send for Sign > Enable Execute Custom Function > Configure.

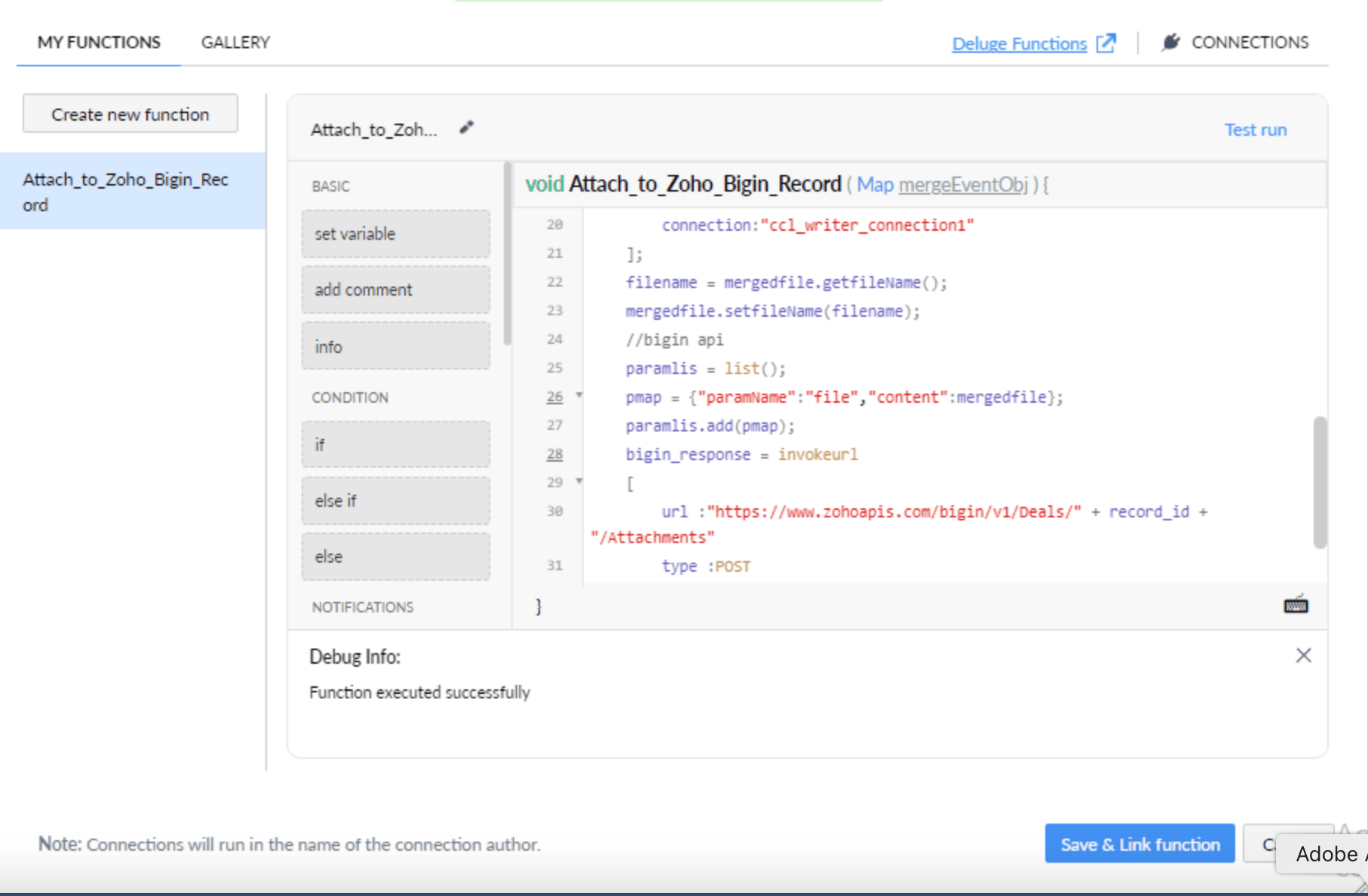

Step 2: Choose or Create a Function
  • Create a new custom function using Deluge scripting.

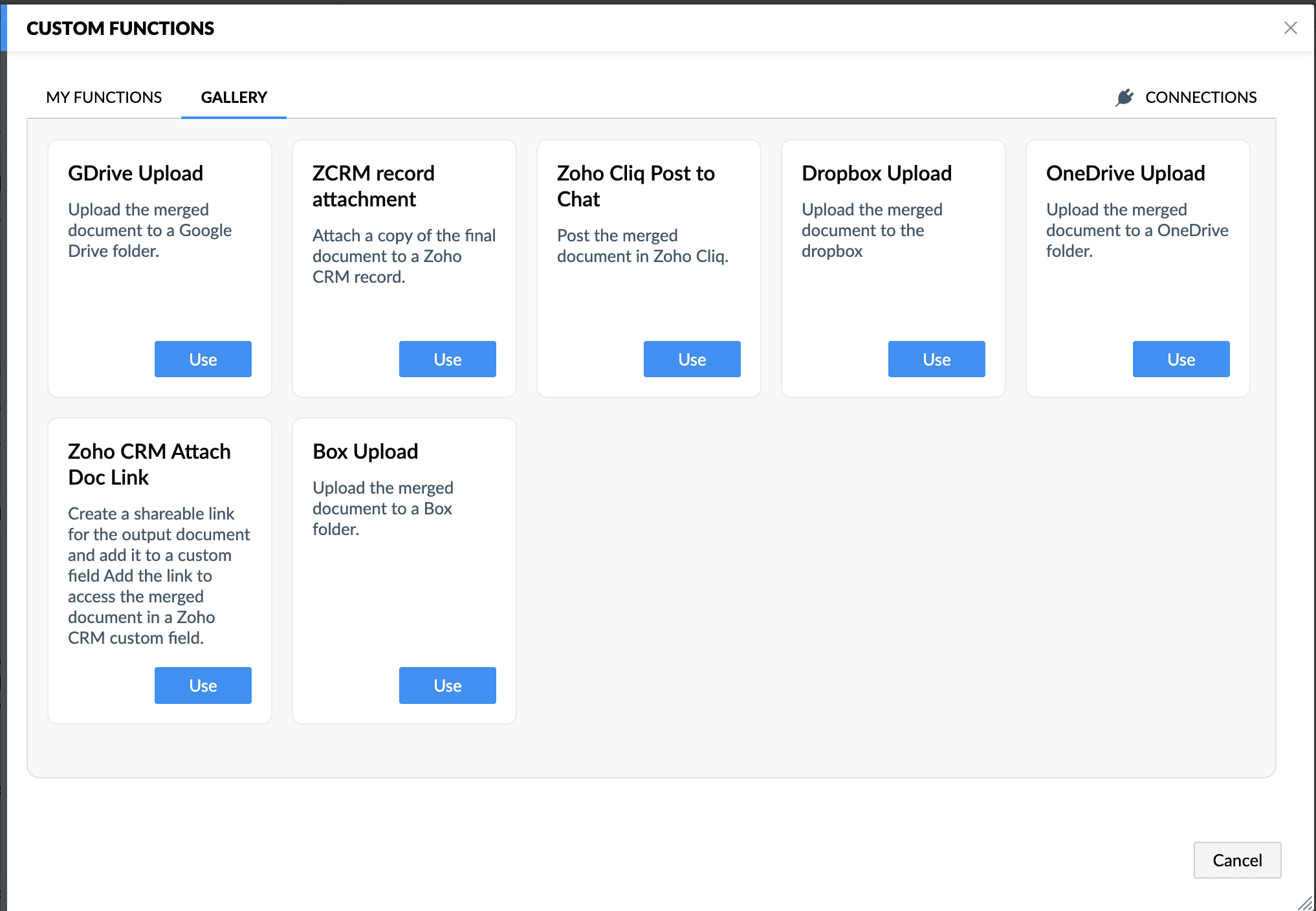

  1. Or, use a prebuilt function from the gallery

Step 3: Create a Connection

Connections are used to authenticate requests sent to external services and can be integrated into Custom Functions in Zoho Writer. They enable you to retrieve data from other services directly into your document workflows.

To use a connection in a custom function:
  1. You must create the connection that links Zoho Writer with the external service.
  2. Then, write a custom function that uses this connection to fetch or send data as needed.
To know how to create a connection, refer to this help link.

Step 4: Save & Link the Function
  • After writing the Deluge script, click Save & Link to associate the function with the relevant output event (e.g., After Merge).

Limitations of Deluge Custom Functions

Limitation
Description
Execution Timeout

Max 5 minutes per function execution.
Max 40 seconds per invoke url task.

File handling size
Max upto 20MB
Recursive Calls

Recursion is not supported.

No Multi-threading

Scripts run sequentially; parallel execution isn't allowed.

Frequently Asked Queries

1. Can I execute Custom Functions on templates/documents shared with me?
Yes. The function executes using the creator's authorization and access rights.

2. How to create a dynamic table and pull subform records using Deluge?
Refer to
this article for details on handling subform data.

3. Can I trigger a Deluge function after an approval workflow is completed?
Yes. In your merge template, choose
Merge > Send for Approval, enable Execute Custom Function, and configure it to move the document to Zoho Contracts.

4. How can I attach a merged document to a CRM record?
Use
Merge & Store > After Merge > Execute Custom Function and configure using the Attach to CRM Record gallery function.

Troubleshooting

Error/Symptom

Possible Cause

Recommended Solution

Error R6000 during merge

Syntax error in Deluge script

Use colon instead of comma when mapping merge_data.
Example: merge_values.put("merge_data", {"data": mp});
Refer to this article for error details.

Images from Inventory not showing

Inventory image URL not accessible

Upload image to WorkDrive via Deluge, get public URL, and use that in merge field.
Refer to this article for more details.
Error R3000 when merging and saving to WorkDrive

Missing scope

Include WorkDrive.files.ALL for WorkDrive folders in OAuth scopes
