panel Tag in ZML

panel tag

<panel>

The <panel> tag defines a generic container for adding content.

Parent tag : <column>
Child tag   : <pr>

Attributes

1. Title

The title attribute specifies a title for the <panel> element. This can be used to describe the contents of the panel.

Possible Values - A String
Example

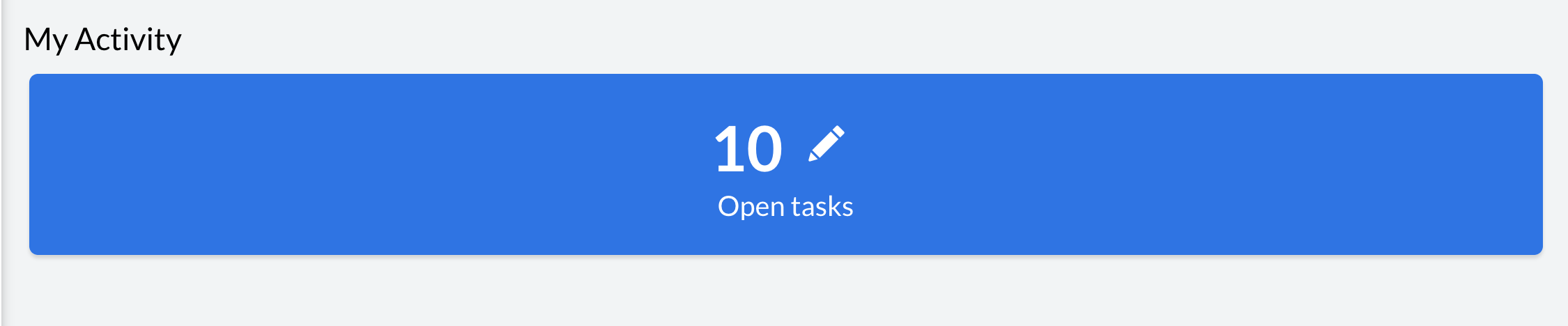

Syntax<panel title='My Activity'>
Output



Note :

  • title attribute is optional.
  • title acts as a source attribute. i.e:  All the below listed attributes viz: titleSize, boldTitle, italicTitle, titleColor are styling attributes for the title and applicable only when a title is specified.

2. titleSize

The titleSize attribute specifies a font size for the title content.

Possible Values - A number from 1 - 9.

Default Value - 4

Example

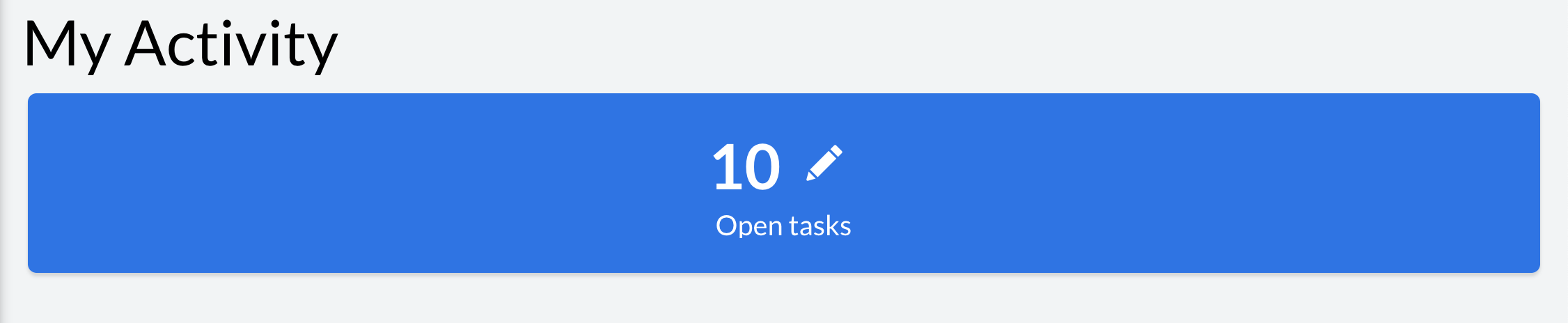

Syntax<panel title='My Activity' titleSize='7'>
Output



Note :

  • titleSize attribute is optional.

3. boldTitle

The title attribute specifies a title for the <panel> element. This can be used to describe the contents of the panel.
Possible Values
  • true
  • false

Default Value

  • false

Example

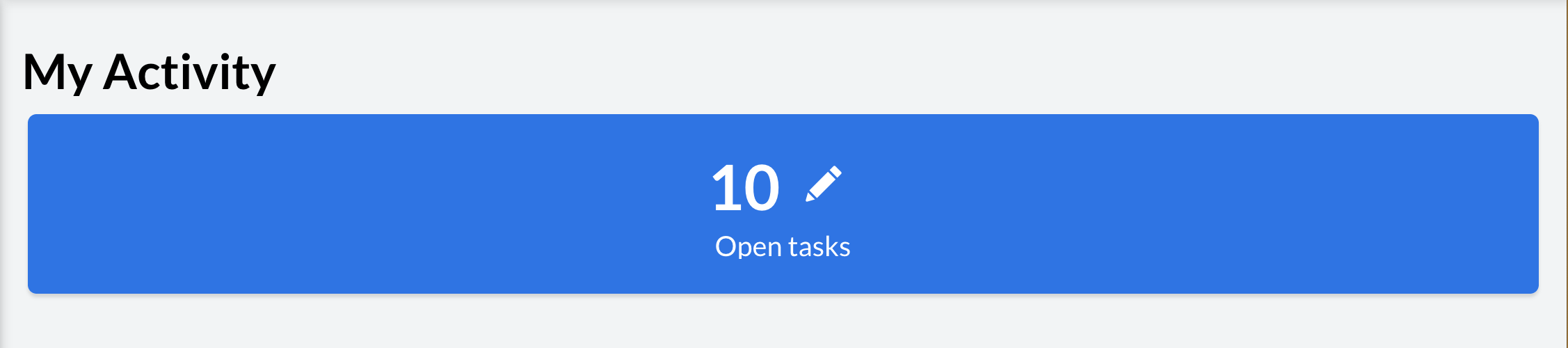

Syntax<panel title='My Activity' boldTitle='true'>
Output



Note :

  • boldTitle attribute is optional.

4. italicTitle

The italicTitle attribute adds an italic style to the title content.

Possible Values
  • true
  • false

Default Value

  • false

Example

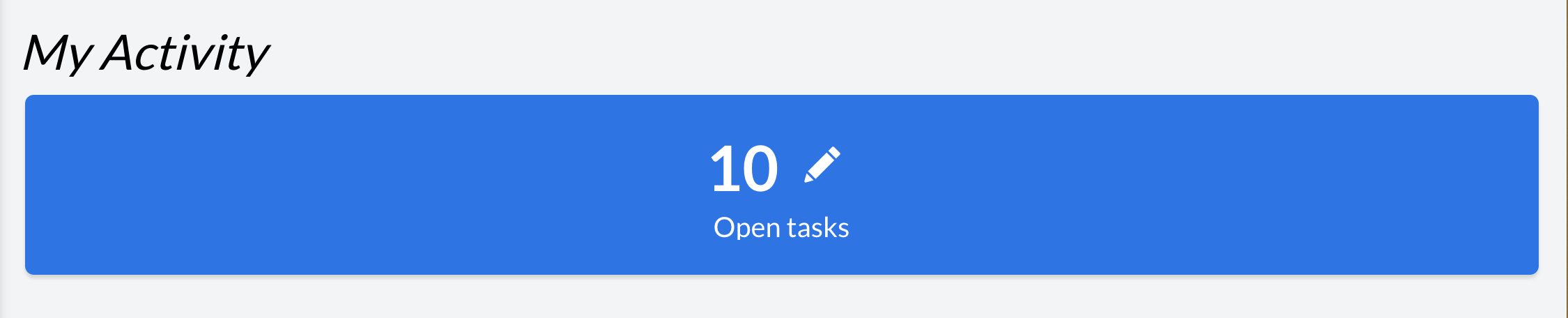

Syntax<panel title='My Activity' italicTitle='true'>
Output



Note :

  • italicTitle attribute is optional.

5. titleColor

The titleColor attribute specifies a font color for the title content.

Possible Values
  • A hexadecimal color value. Refer this page for hexadecimal color codes.

Default Value

  • #444444

Example

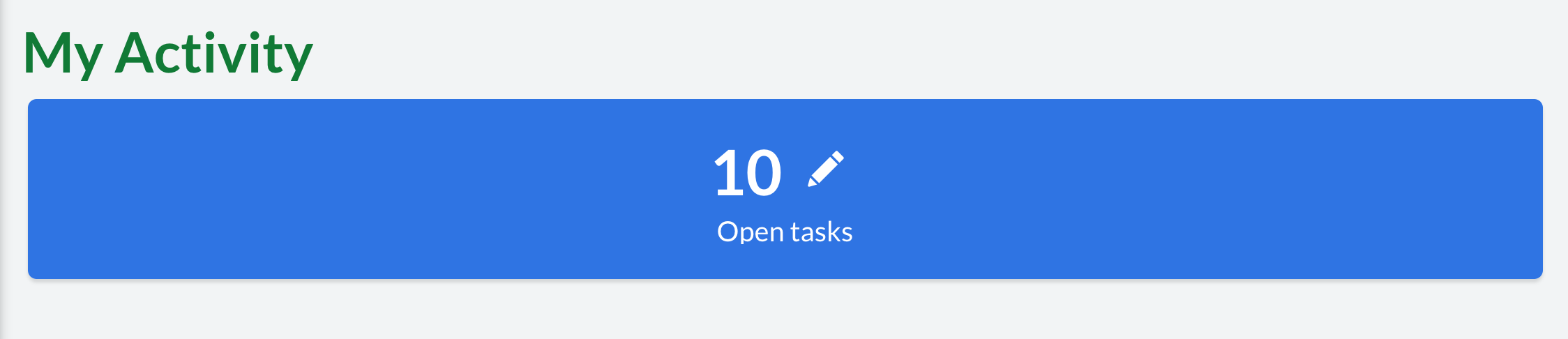

Syntax<panel title='My Activity' titleColor='#047B33'>
Output



Note :

  • titleColor attribute is optional.
