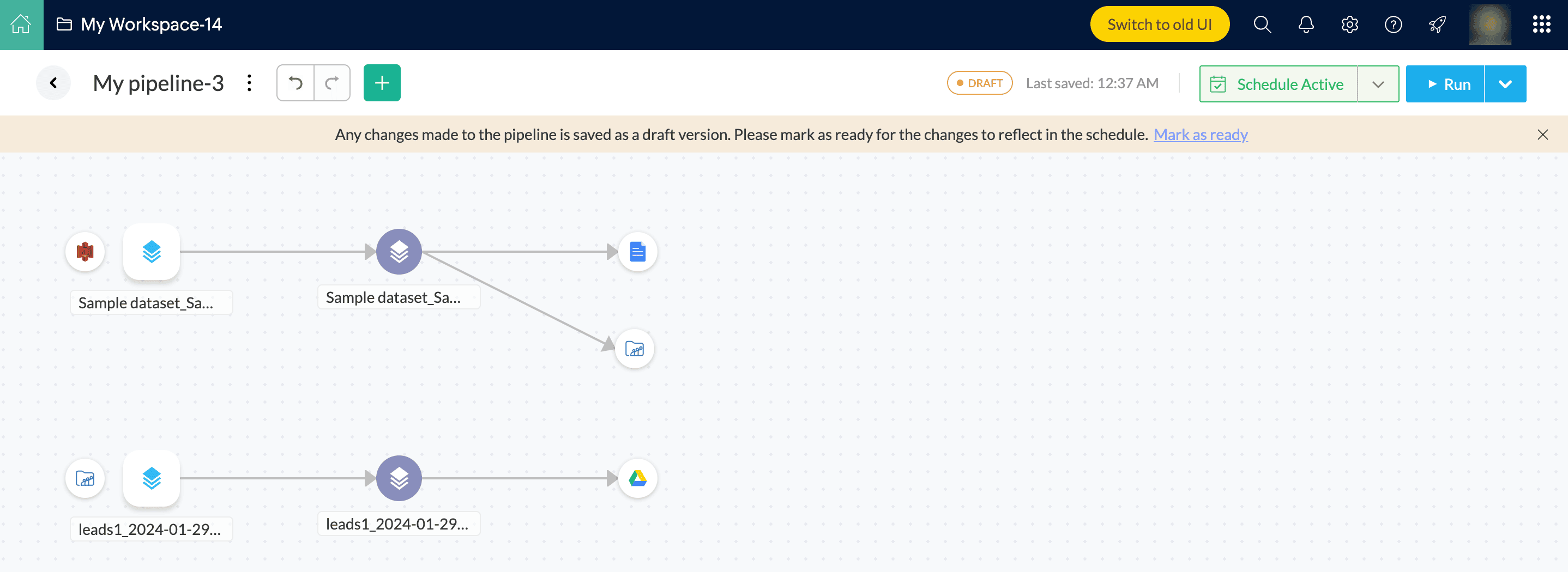

Pipeline builder is a place that allows the users to create data flows in DataPrep, with multiple data stages and various flow level transforms. Whenever a new pipeline is created, the pipeline builder page opens into view. The pipeline builder page lists all the relevant information about the pipeline. It includes details on the pipeline, data source details, dataset details, destination details, and options like undo and redo the pipeline, import data, version history, schedule, run, and pipeline options.

Let us take a look in detail.

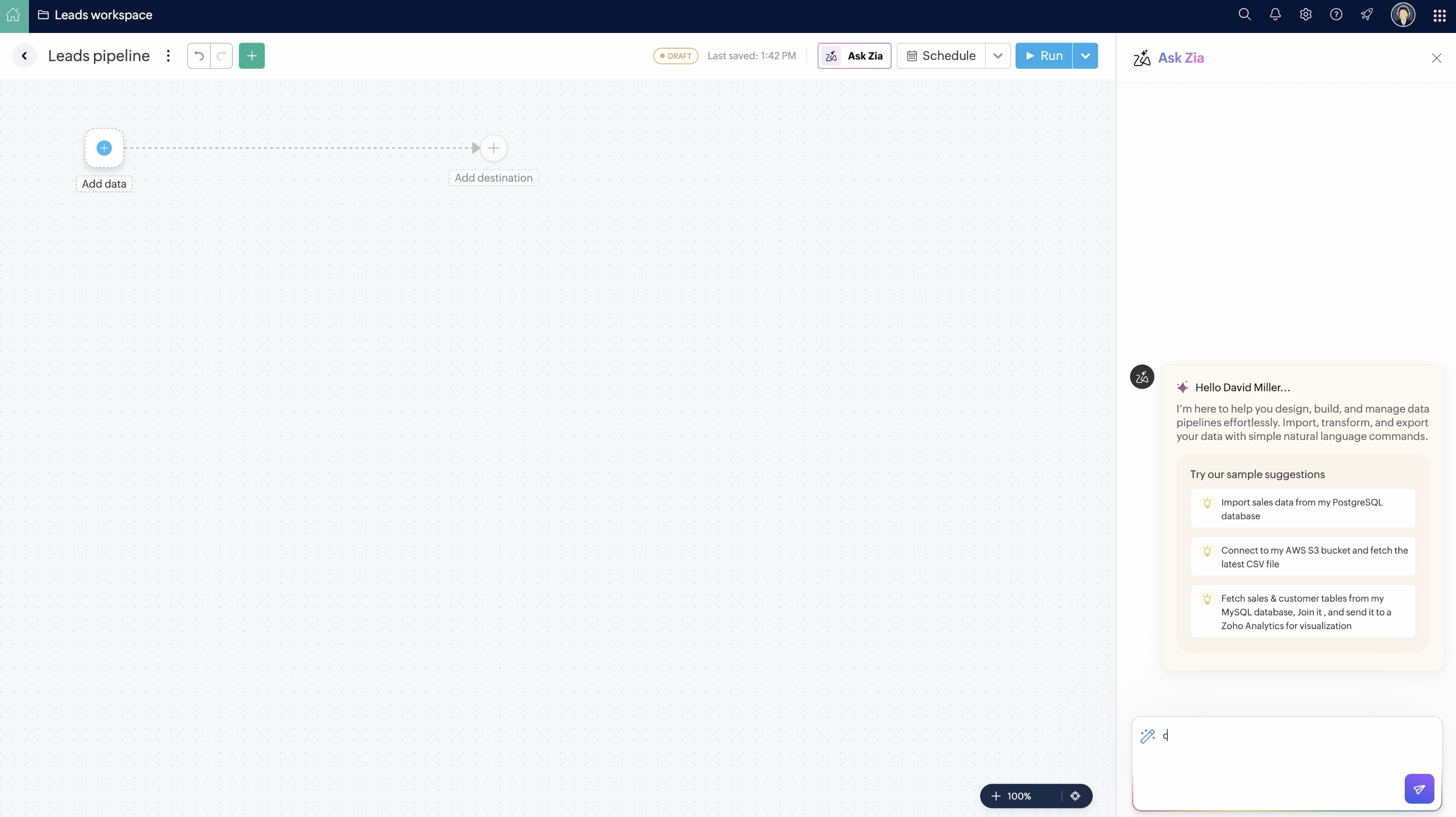

Ask Zia – AI Assistant for Pipeline Builder

Pipeline options

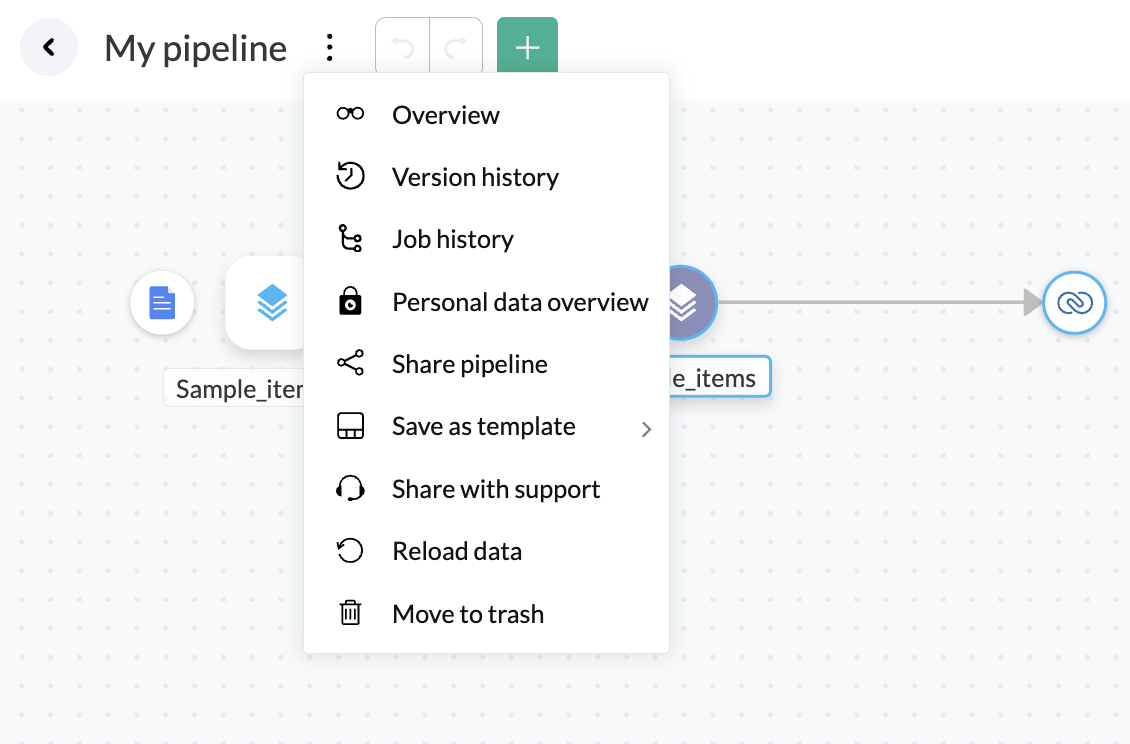

You can use the following options associated with your pipeline from the ellipses icon.

 Overview

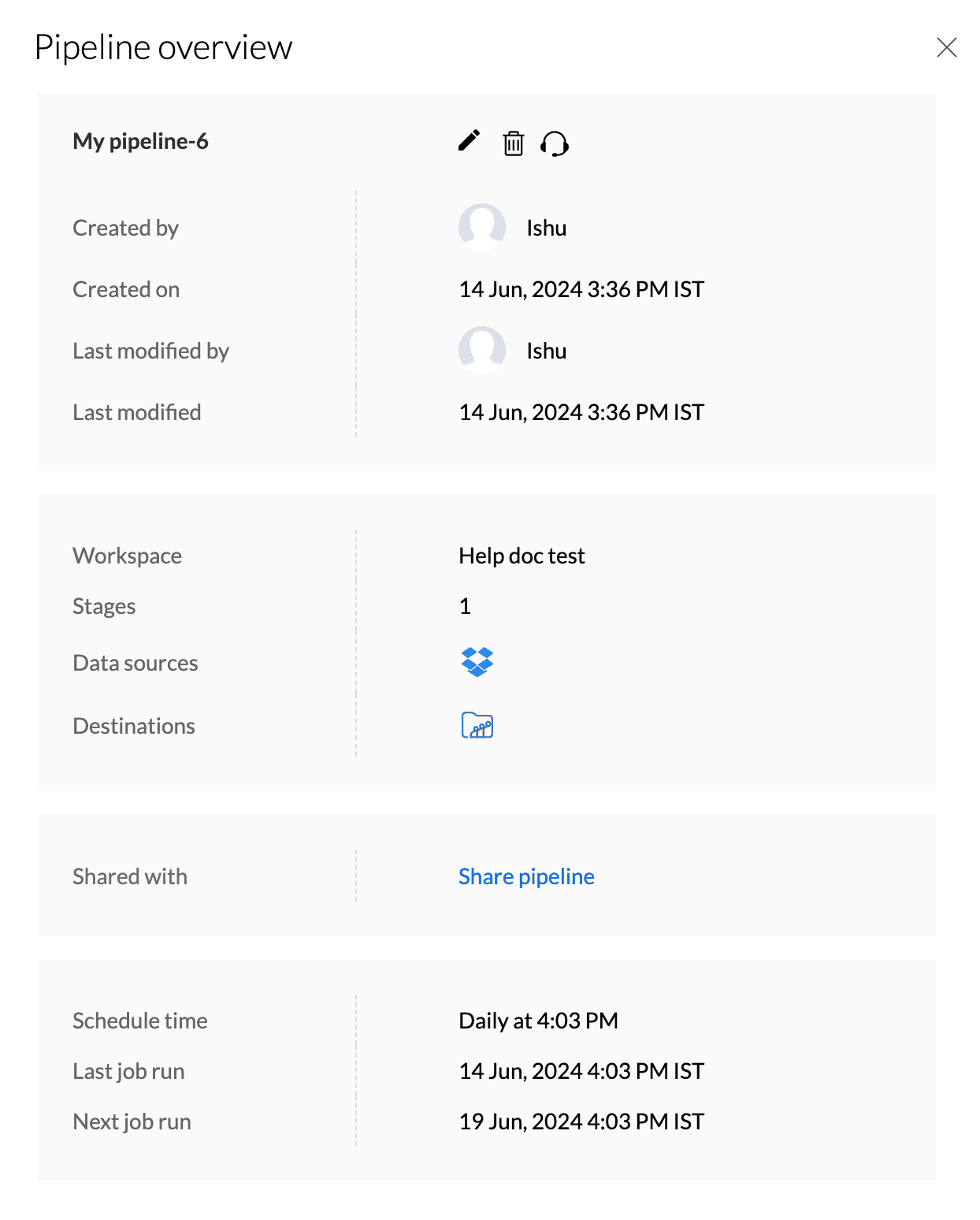

Go to the ellipses icon from the pipeline builder, and click on the Overview menu. You can view the pipeline overview for details such as the pipeline name, created by, created on, last modified date and time, last modified user, workspace name, stages, data sources, destinations, shared users, schedule time, last job run, and next job run. You can also rename, delete, and share with support from the pipeline overview.

Info: If you have not shared the pipeline, then you can click the share pipeline link and share your pipeline with users. Click here to know more about how to share your pipeline.

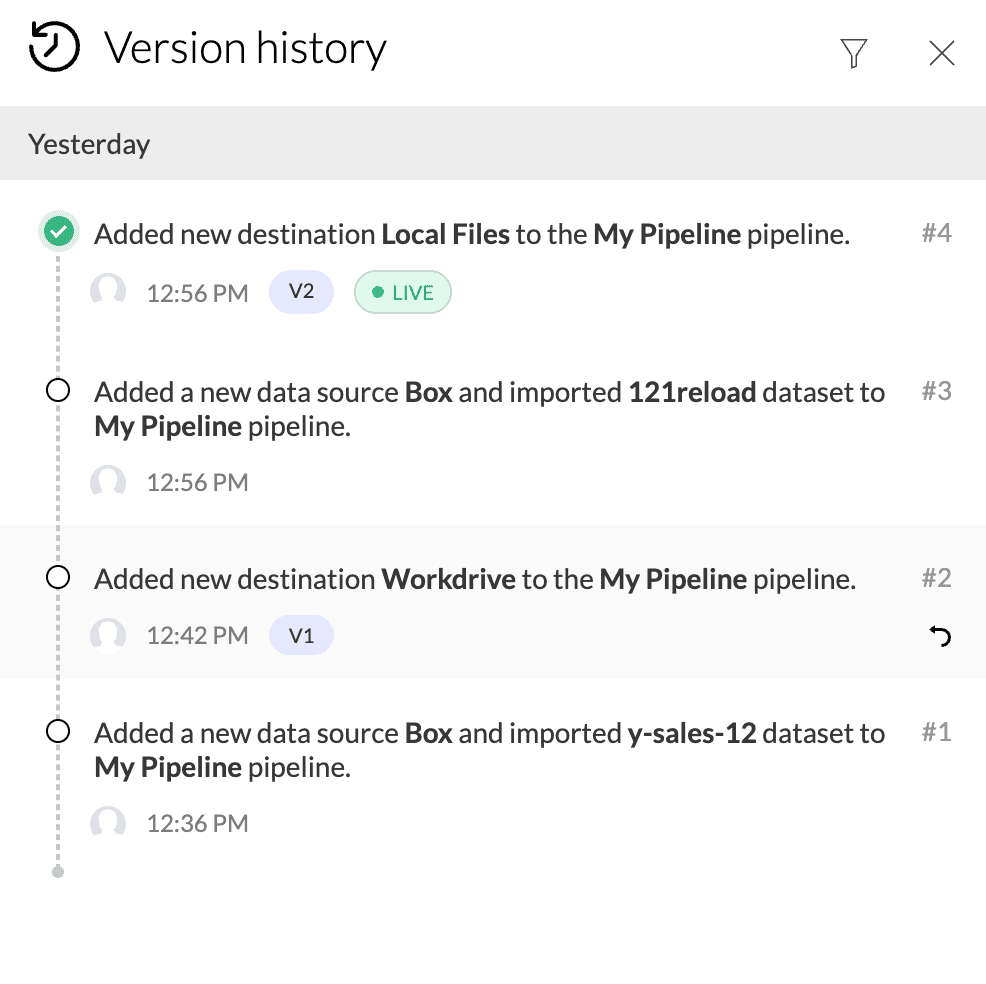

 Version history

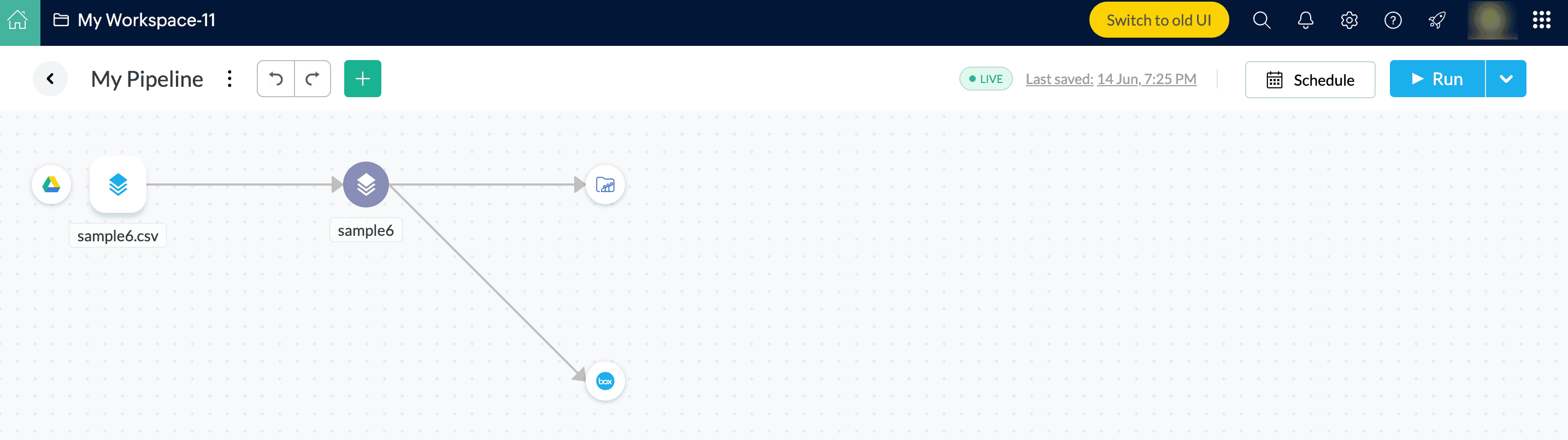

Go to the ellipses icon from the pipeline builder, and click on the Version history menu. The pipeline undergoes multiple updates during drafting, and once it is marked as ready, the changes are made live and a new version is created.

Note: You can access the Version history from the Last saved link at the top of the pipeline builder after the draft is published to live once.

Version history helps you keep track of all the actions done in a pipeline. You can view the list of the published older versions of the pipeline and view which version is currently live.

This helps in switching to a particular version to view its content and keep track of the changes made. You can also restore the pipeline to an earlier version if needed. After restoring the version, the pipeline will be in draft state. Mark it as ready for the version to be published and made live.

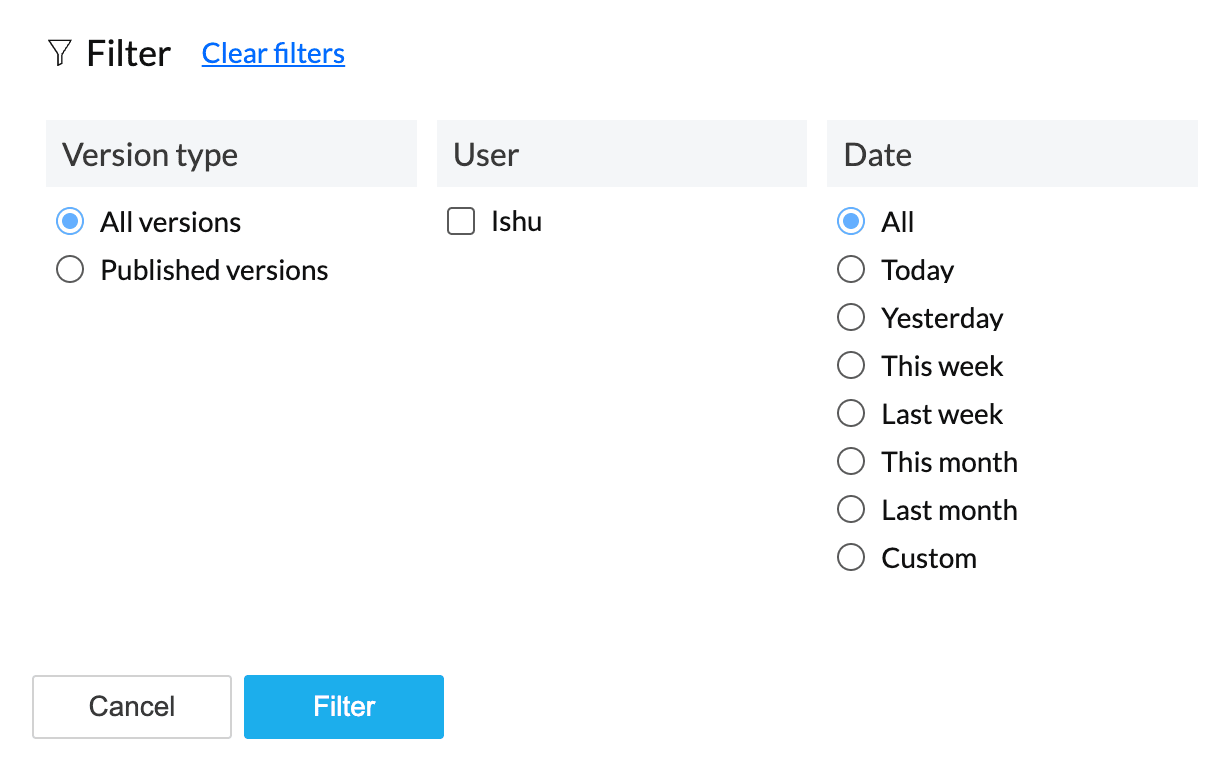

The history view by default displays all actions of a pipeline in chronological order. You can use filters to view the history by version types, user, or date as needed.


Draft

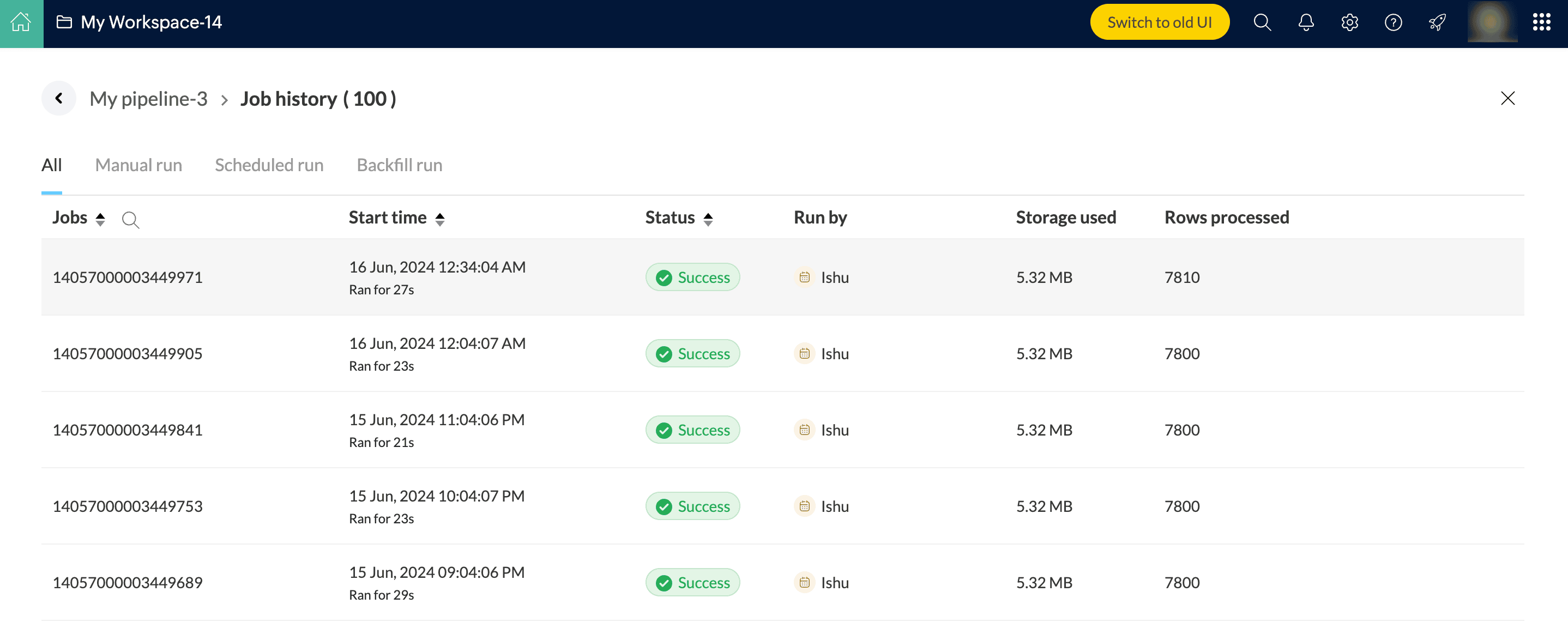

 Job history

Go to the ellipses icon from the pipeline builder, and click on the Job history option to view all the jobs of a particular pipeline.

Click on a job in the Jobs page to navigate to the Job summary. The Job summary shows the details of a job in three different tabs: Overview, Stages, and Output. Click here to know more.

 Personal data overview

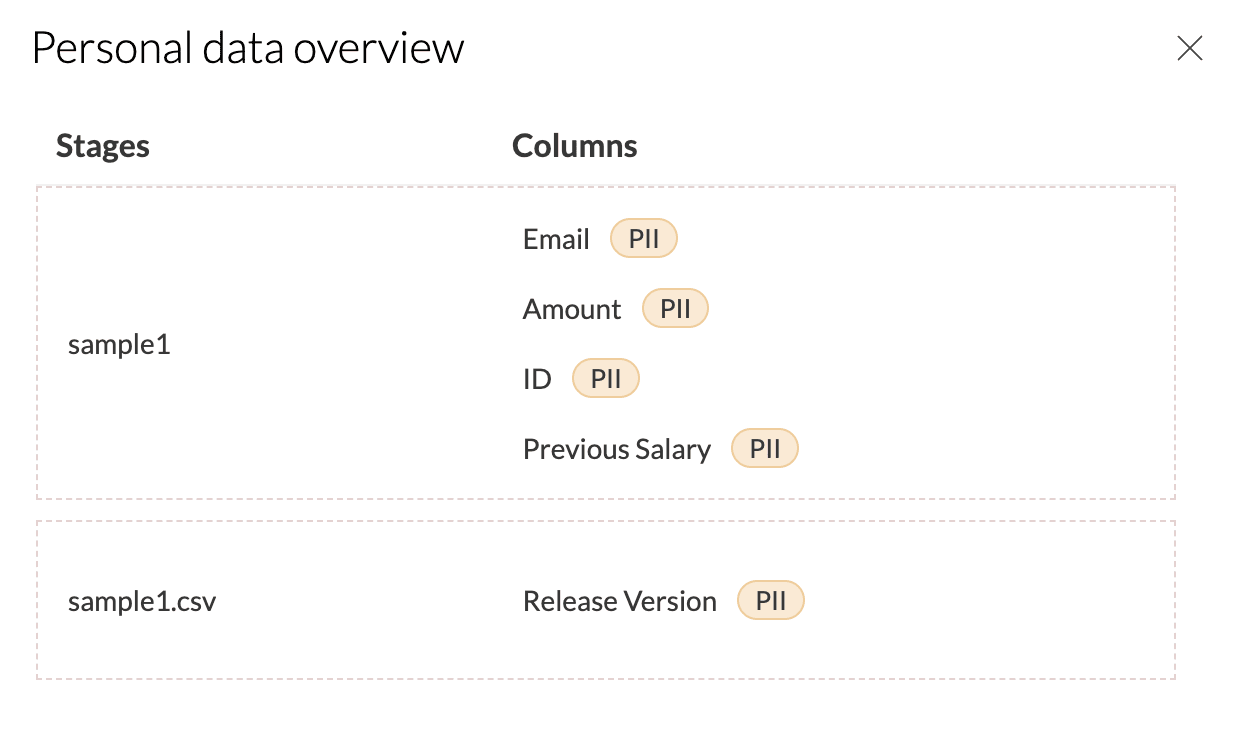

Go to the ellipses icon from the pipeline builder, and click on the Personal data overview menu. You can review how personal data is protected in your pipeline using the Personal data overview option. The name of the stage and the number of columns containing PII and ePHI data are displayed in this section. Click here to know how to mark a columns as personal data in DataPrep.

Info: You can also review the personal data in all your pipelines and workspaces under the Personal data audit in the Manage privacy section under the Settings page.

 Share pipeline

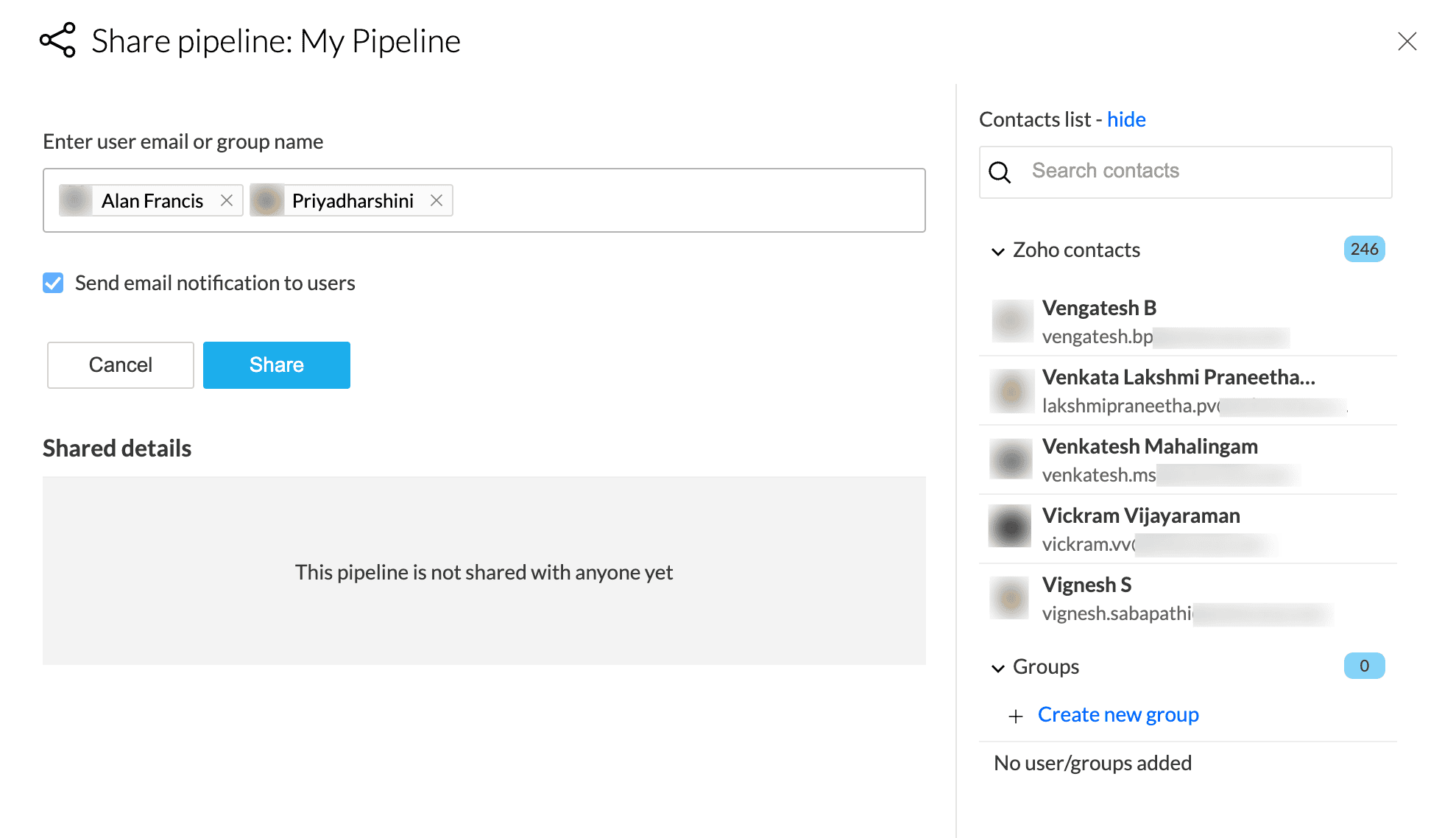

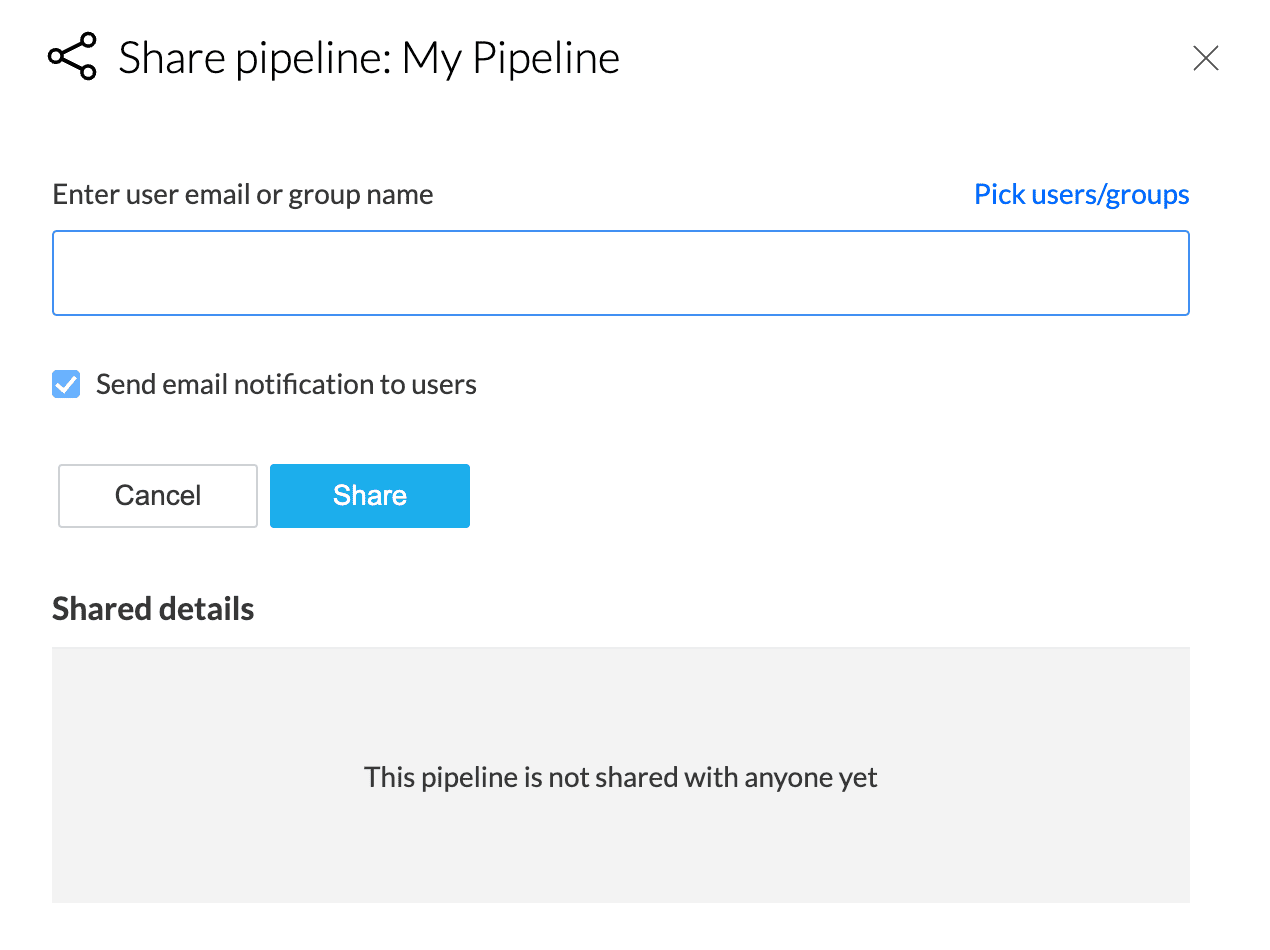

Go to the ellipses icon from the pipeline builder, and click on the Share pipeline menu.

Enter the user email or group name to share with users or groups.

You can choose the Send email notification to users checkbox to notify the user through email.

You can also Pick users/groups from your previously shared contact list.

Click Share to share your pipelines with the users or groups.




Click the button if you want to stop sharing your pipeline with the user.

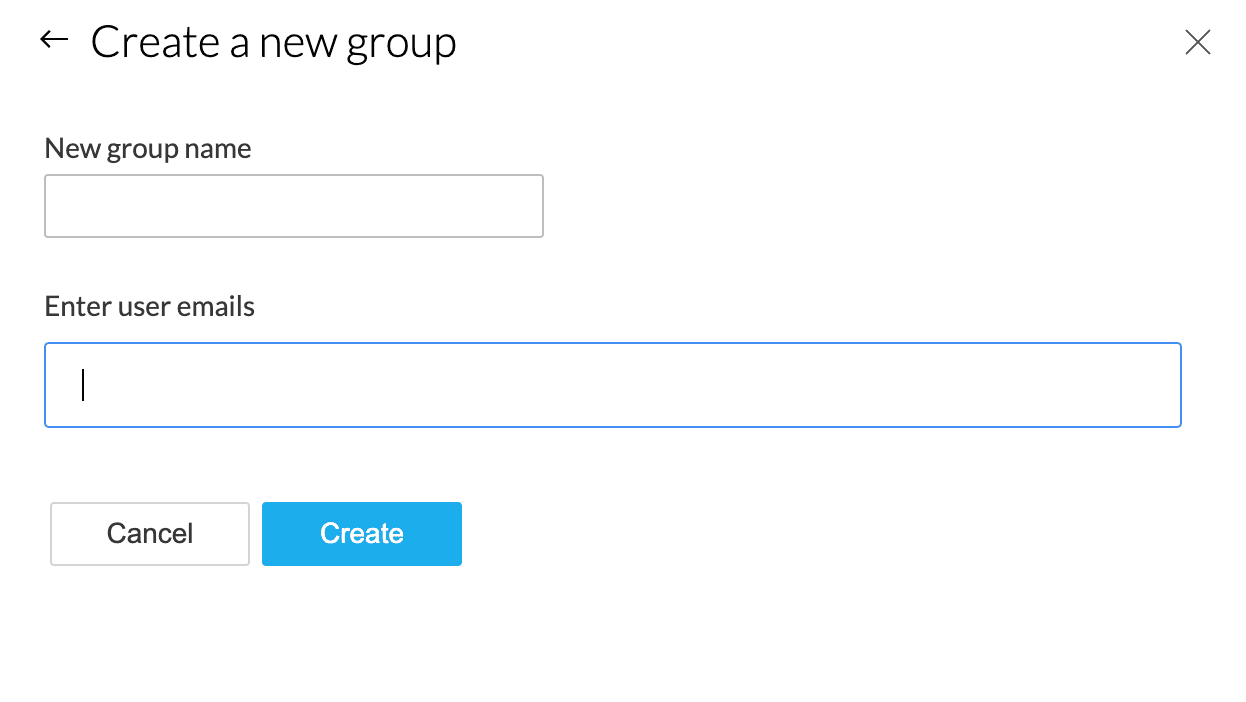

To create a new group

3. Click Create to create your new group.

Click here to know more about sharing your pipeline.

Save as template

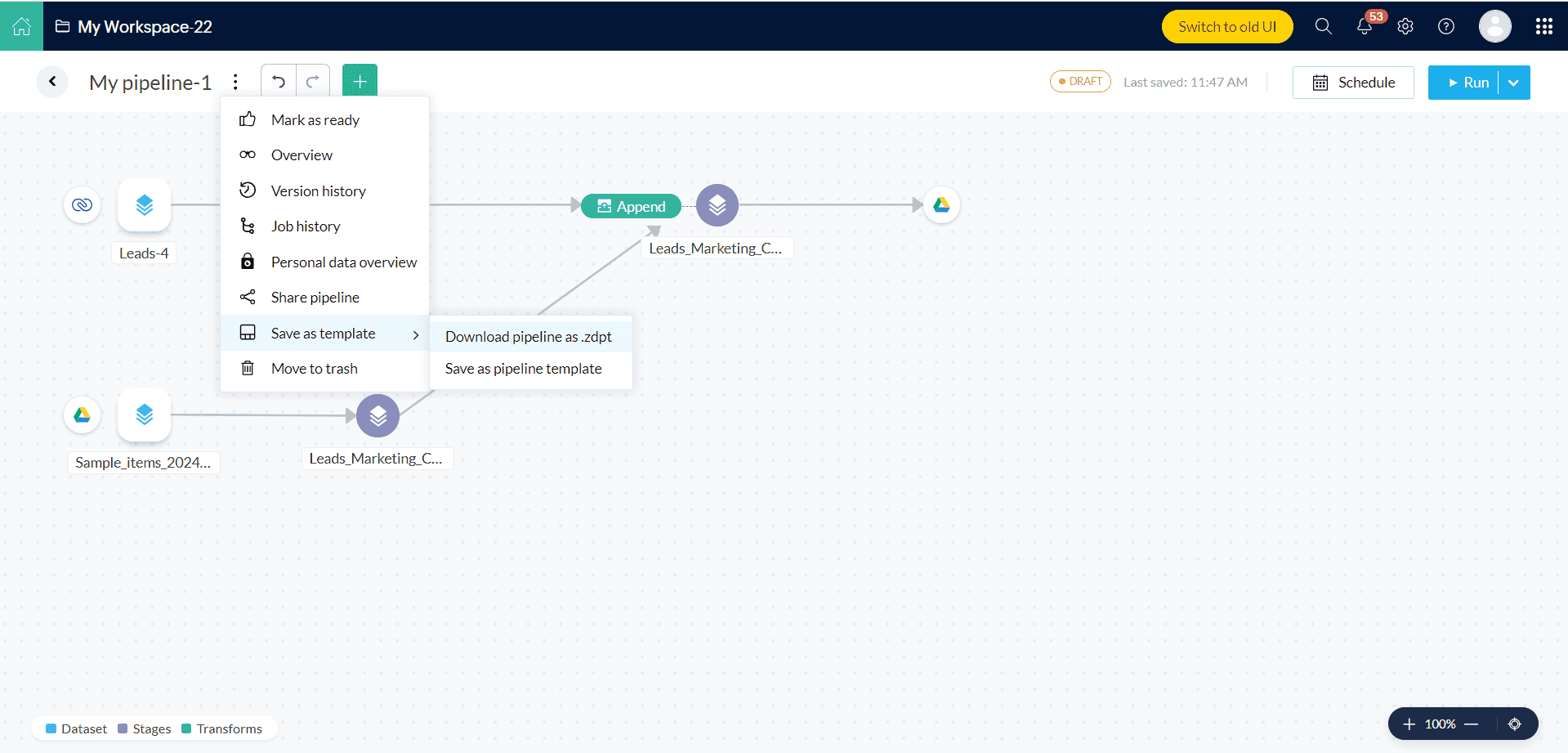

1. Open the required pipeline and click the ellipses icon in the Pipeline builder page.

2. Click the Save as template option and choose Save as pipeline template. The pipeline will be saved as a pipeline template in the templates library.

You can also download the pipeline template and use it using the Download pipeline as .zdpt option.

3. In the Workspace tab, navigate to the Pipeline template and click Use now to create a new pipeline using the saved template.

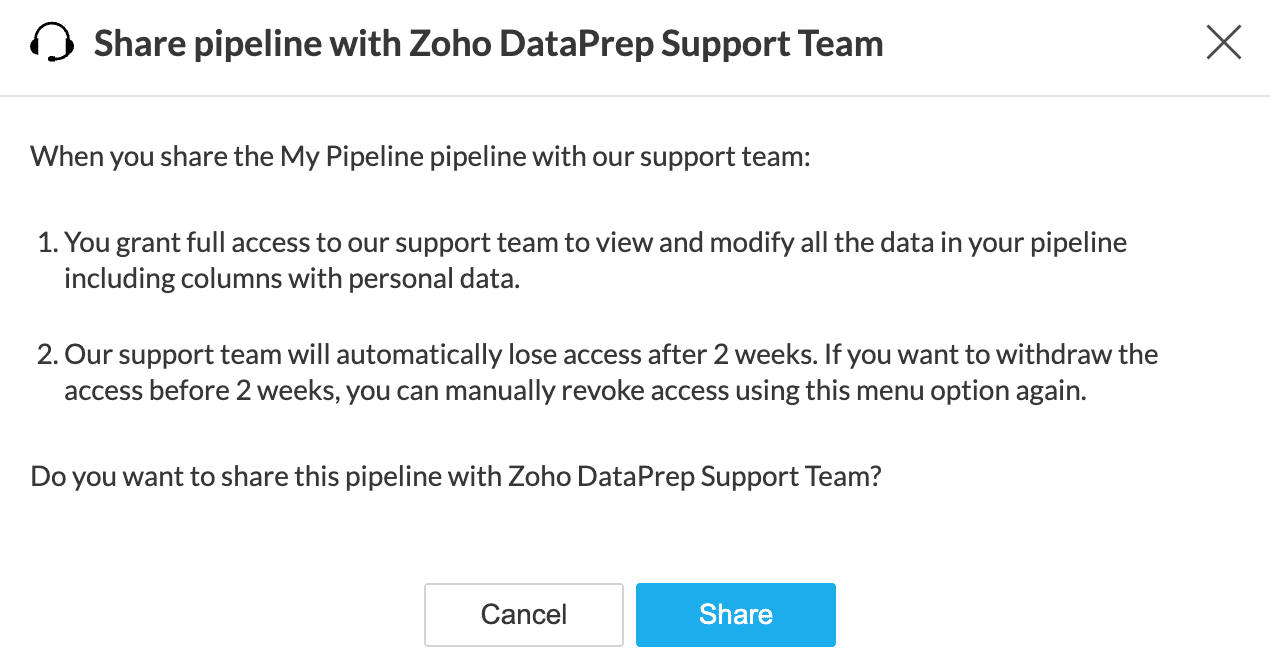

Share with support

Open the required pipeline and click the ellipses icon in the Pipeline builder page.

Click the Share with support option. When you share the pipeline with our support team:

• You grant full access to our support team to view and modify all the data in your pipeline, including columns with personal data. If you want to proceed, then click Share option.






• Our support team will automatically lose access after 2 weeks. If you want to withdraw the access before 2 weeks, you can manually revoke access using this menu option again.



Reload data

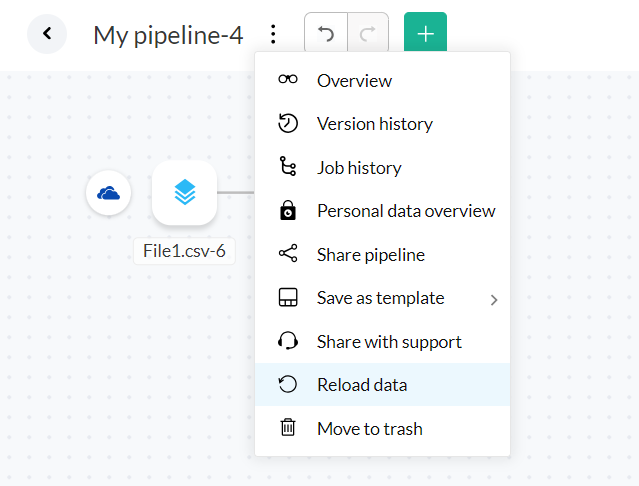

1. Click the  ellipses icon in the Pipeline builder page, and choose the Reload data option.

Move to trash

Use this option to delete and move your pipeline to trash. The pipelines that are deleted can be located under the trash tab in the Workspace page. You can choose to restore the entities or permanently delete them from the trash section. Items in the trash will be permanently deleted after 180 days.

Zoom in, Zoom out - You can zoom in and out of the pipeline using this option. The range is between 60% - 100%

Scroll back to content - If your pipeline moves out of view, click this to scroll back to the top content.

Undo and Redo

You can revert or reapply all the changes made in the pipeline using the undo and redo button in the pipeline builder.

Import data

You can click on the Import data  icon at the top of the pipeline builder to bring data from multiple sources into the pipeline.

Elements in a pipeline

Change source

 1. Right click the source icon and choose Change source option. You will be redirected to the import page from where you can import data from any source as required.

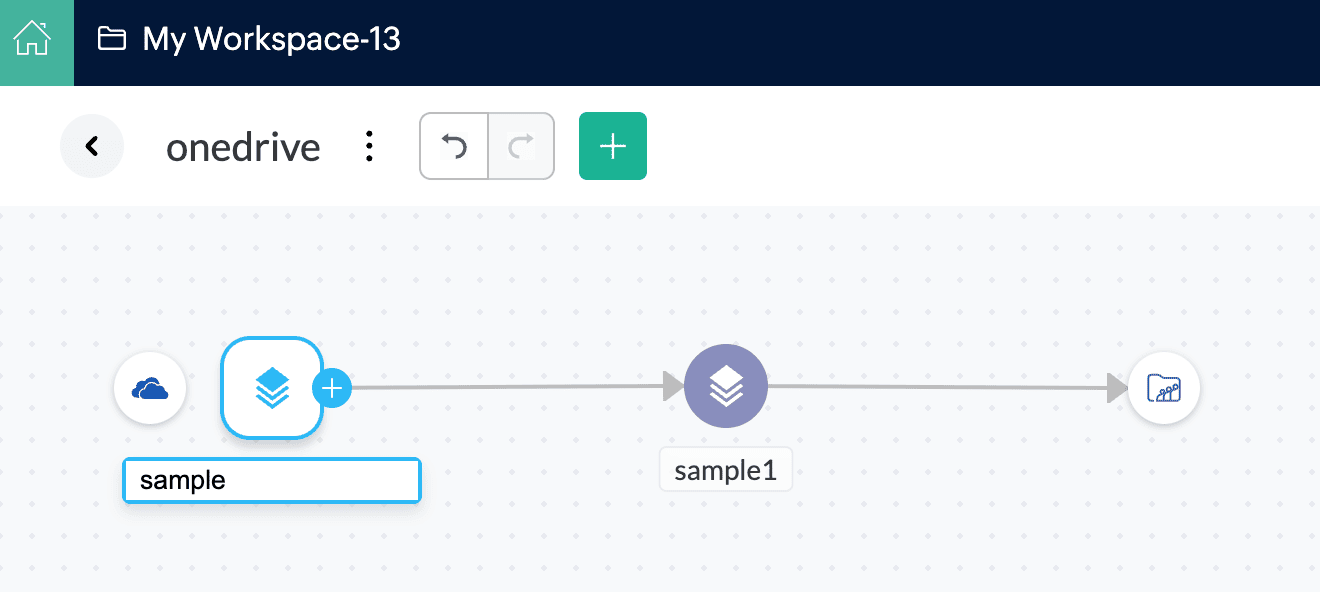

Note: You can also rename the name of the file imported by clicking on the name below the data source.

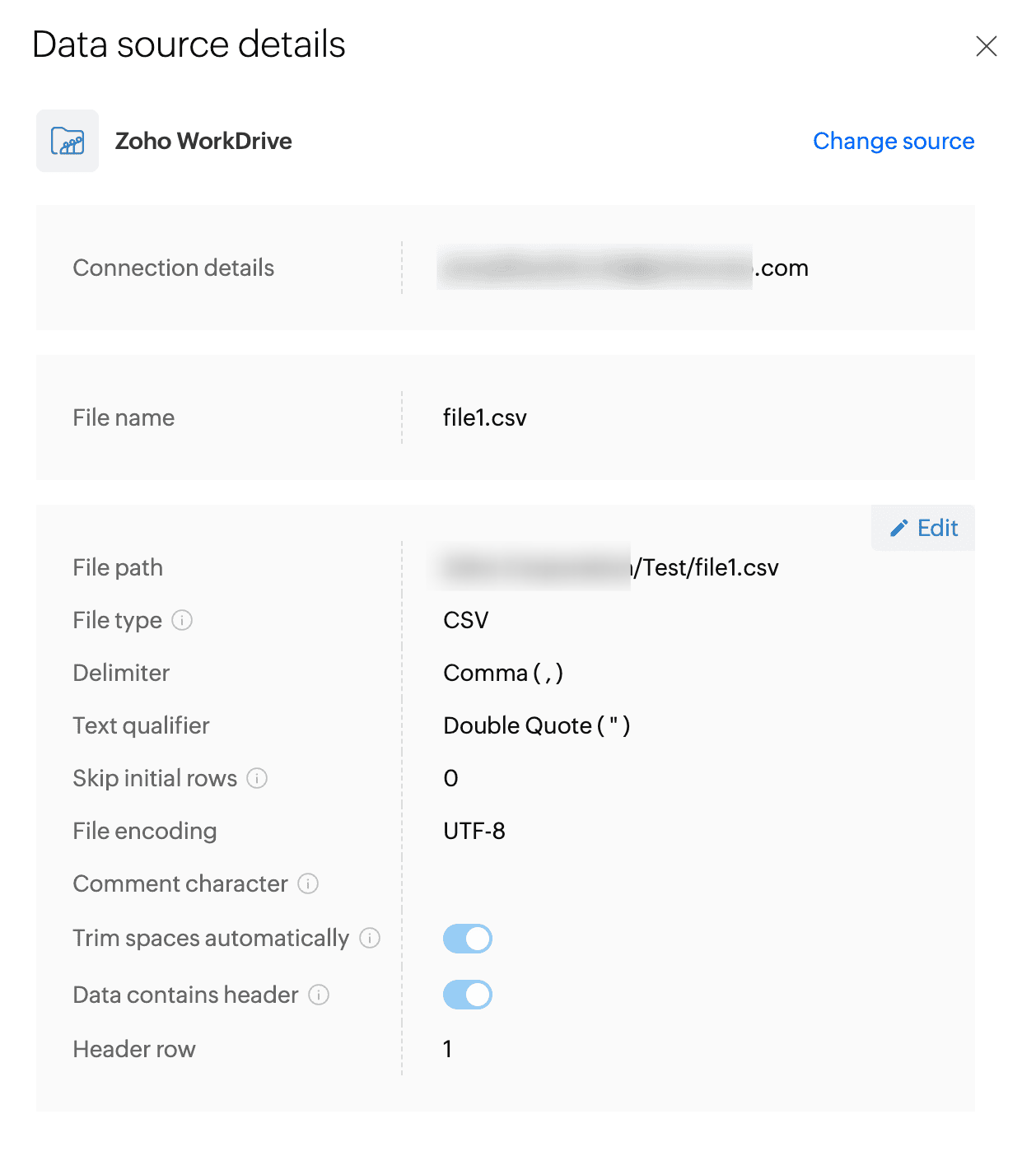

Data source details

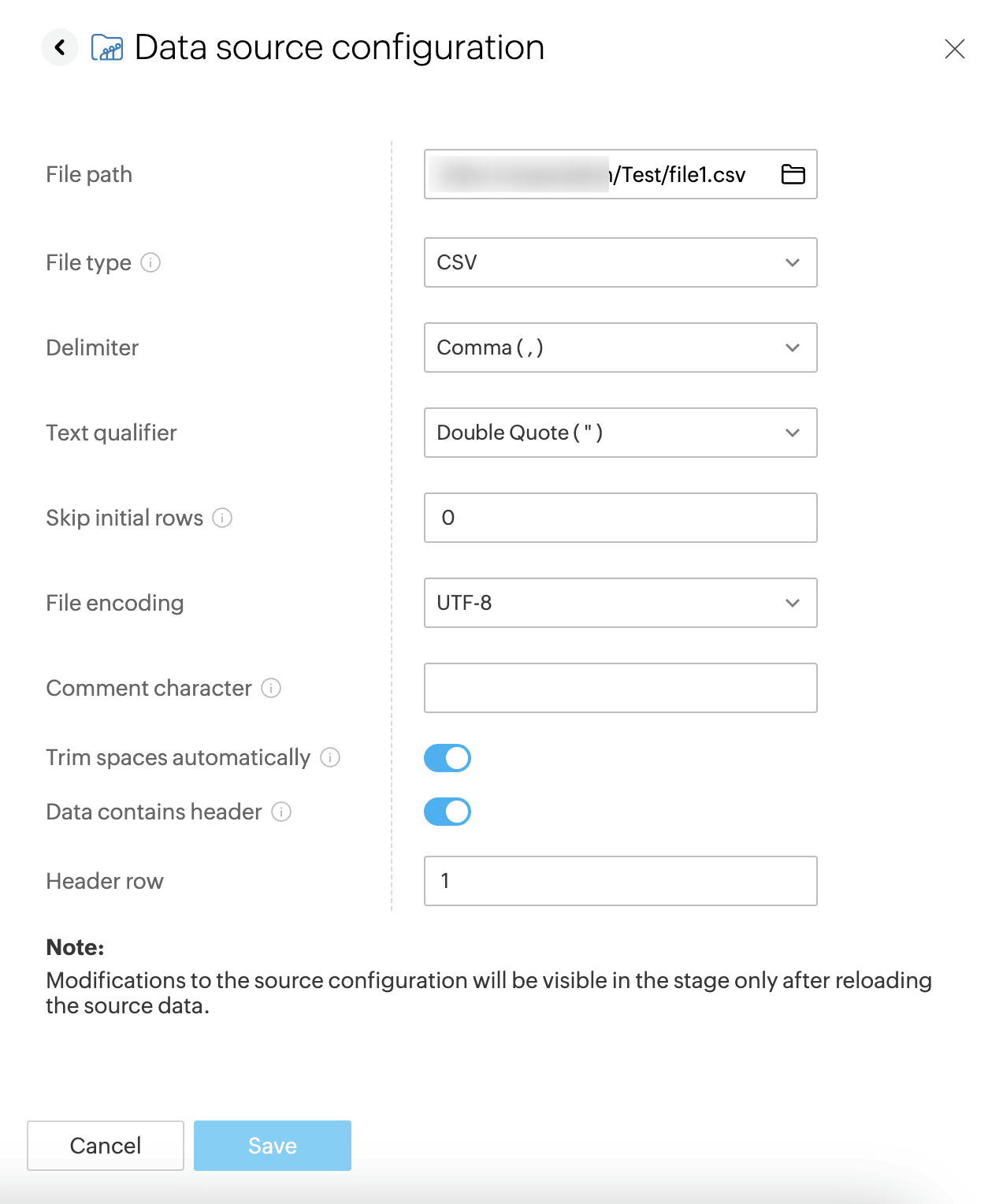

2. Right click the data source icon and choose the Datasource details option or click the data source icon once to view the data source details.

Note: Changing the file format from CSV or TSV to XSLSX or HTML will not be supported.

Copy to

3. To copy a flow from one pipeline to another, right-click the data source or data destination icon and select the Copy to option. Alternatively, you can click the  icon  or right-click the stage linked to your data source or any other stage.

The whole upstream and downstream of the selected flow will be copied and added to the new pipeline.

Note: Copy of the data source will be created as well, when a flow is copied from one pipeline to another pipeline.

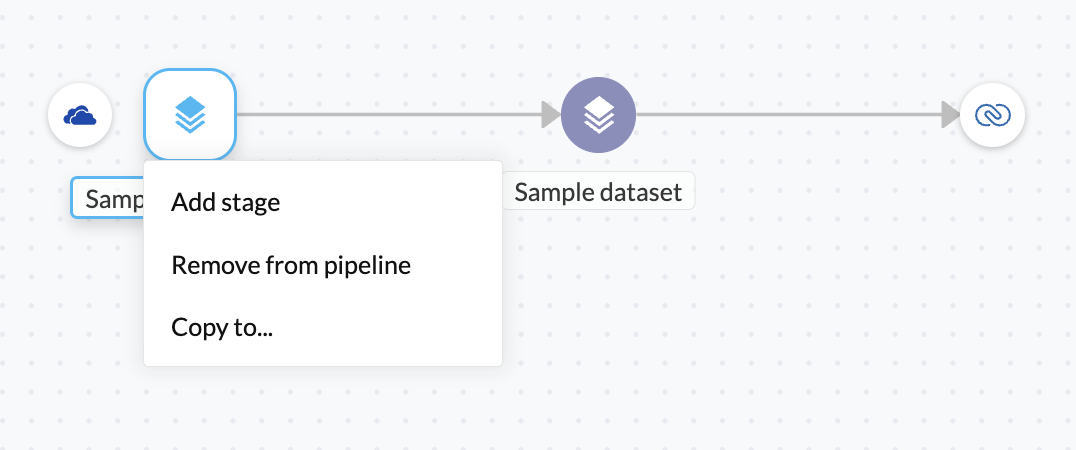

4. Click the icon or right click the stage linked to your data source and choose,

Add Stage - To add a new stage using the imported data. Stages are nodes created for processing data while applying data flow transforms. Every data imported from your data source will have a stage created by default.

Remove from pipeline - You can use this option to remove the imported data and the flow from the pipeline.

Dataset details

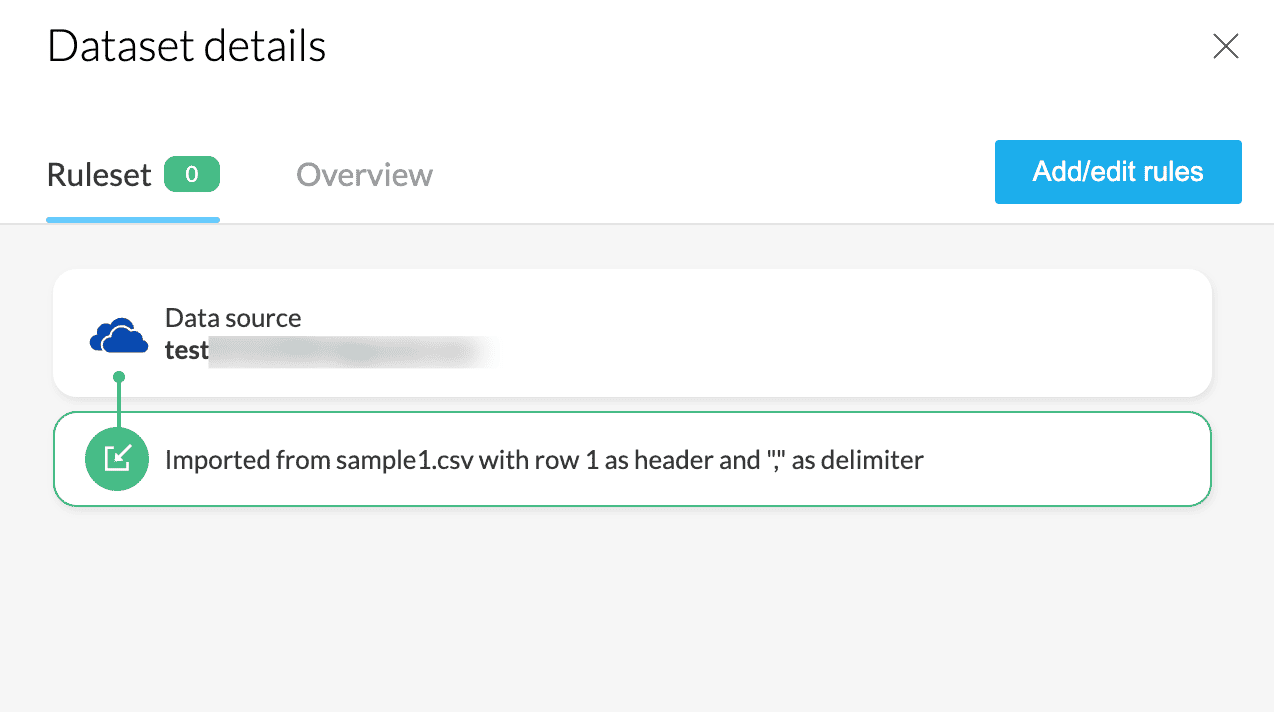

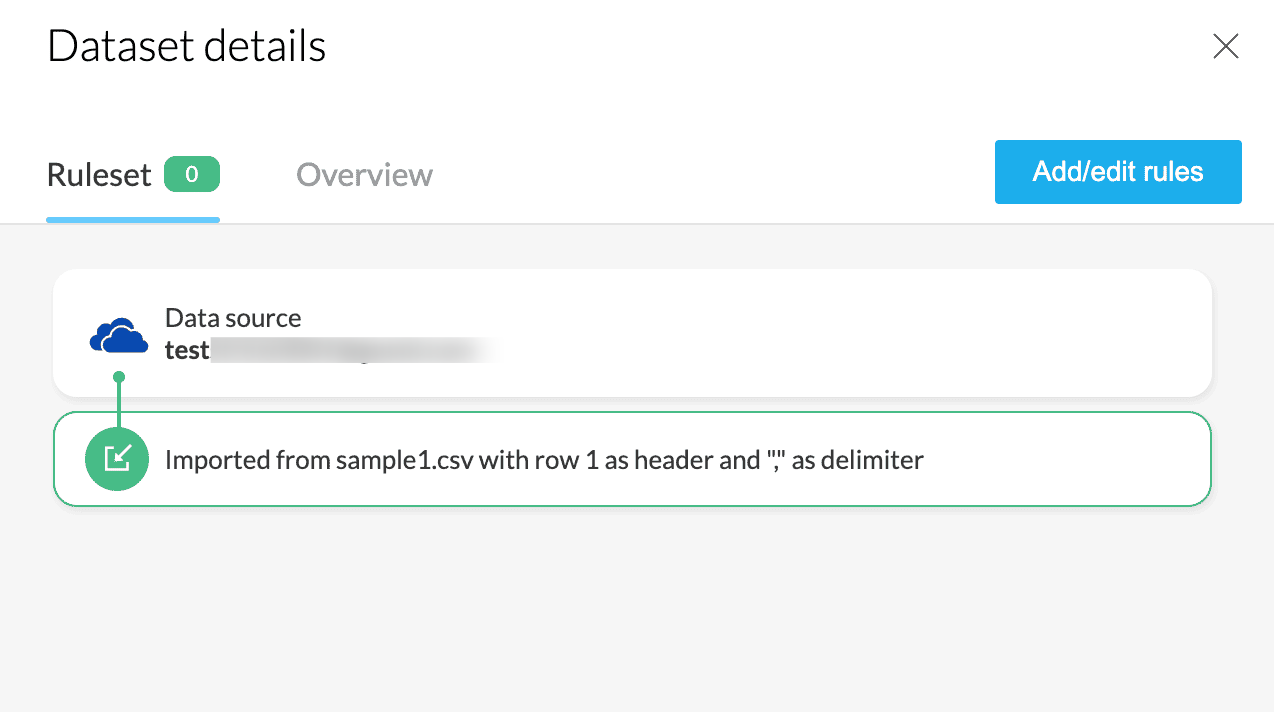

5. Click the stage icon once to view the dataset details - Ruleset, overview.

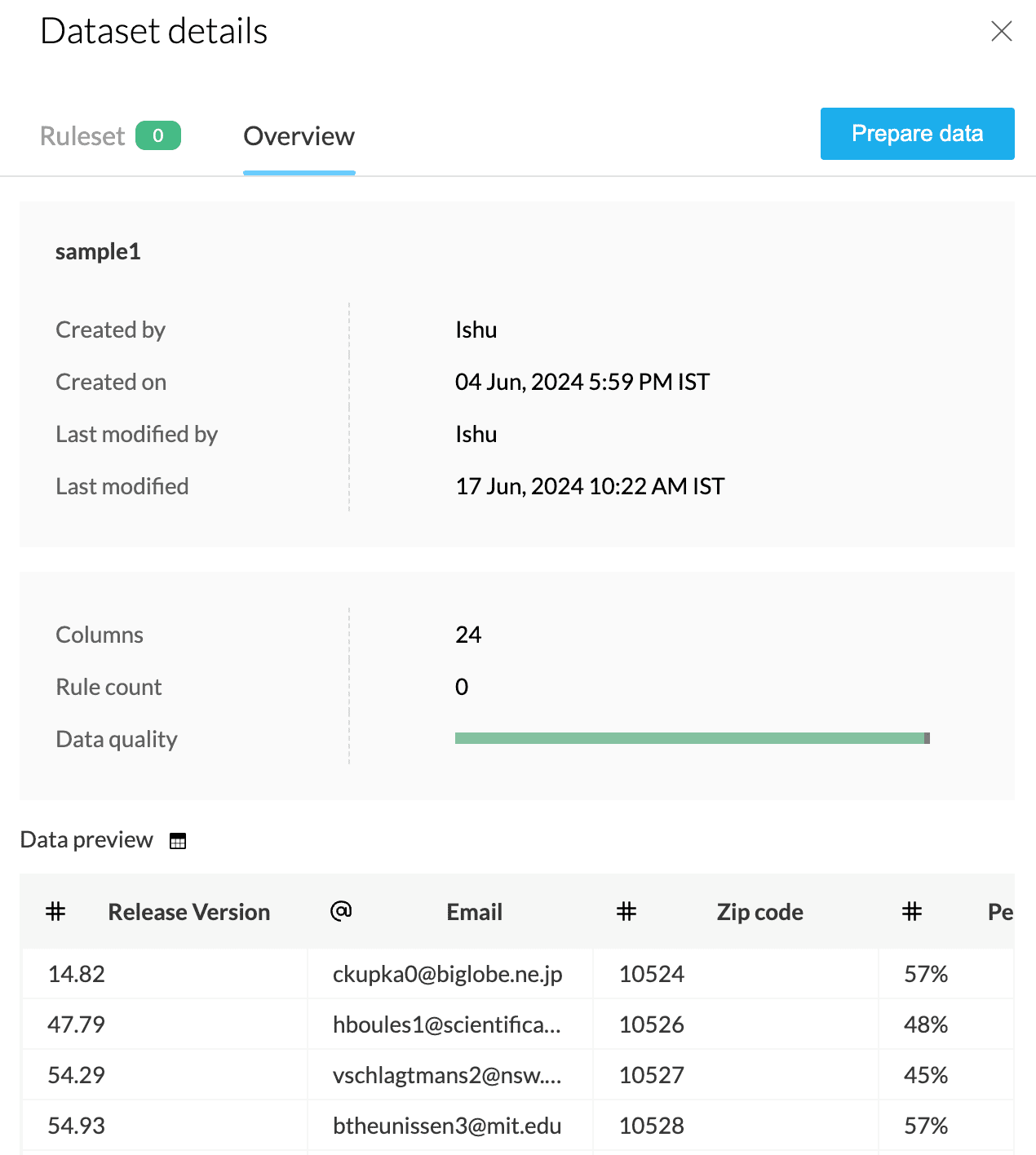

Overview of dataset: The overview shows the list of the name of the dataset created by, created on, last modified by, last modified, columns, rule count, data quality, and data preview.





You can also choose to Prepare Data to open the DataPrep Studio page and explore more data transforms.

Ruleset: Each transform applied on the dataset is stored in DataPrep as a rule, in order of their execution. The ordered list of these rules is called a Ruleset. You can access the Ruleset from the Ruleset pane, where you can add, edit, or remove rules that have been applied on the stage.

Stage options

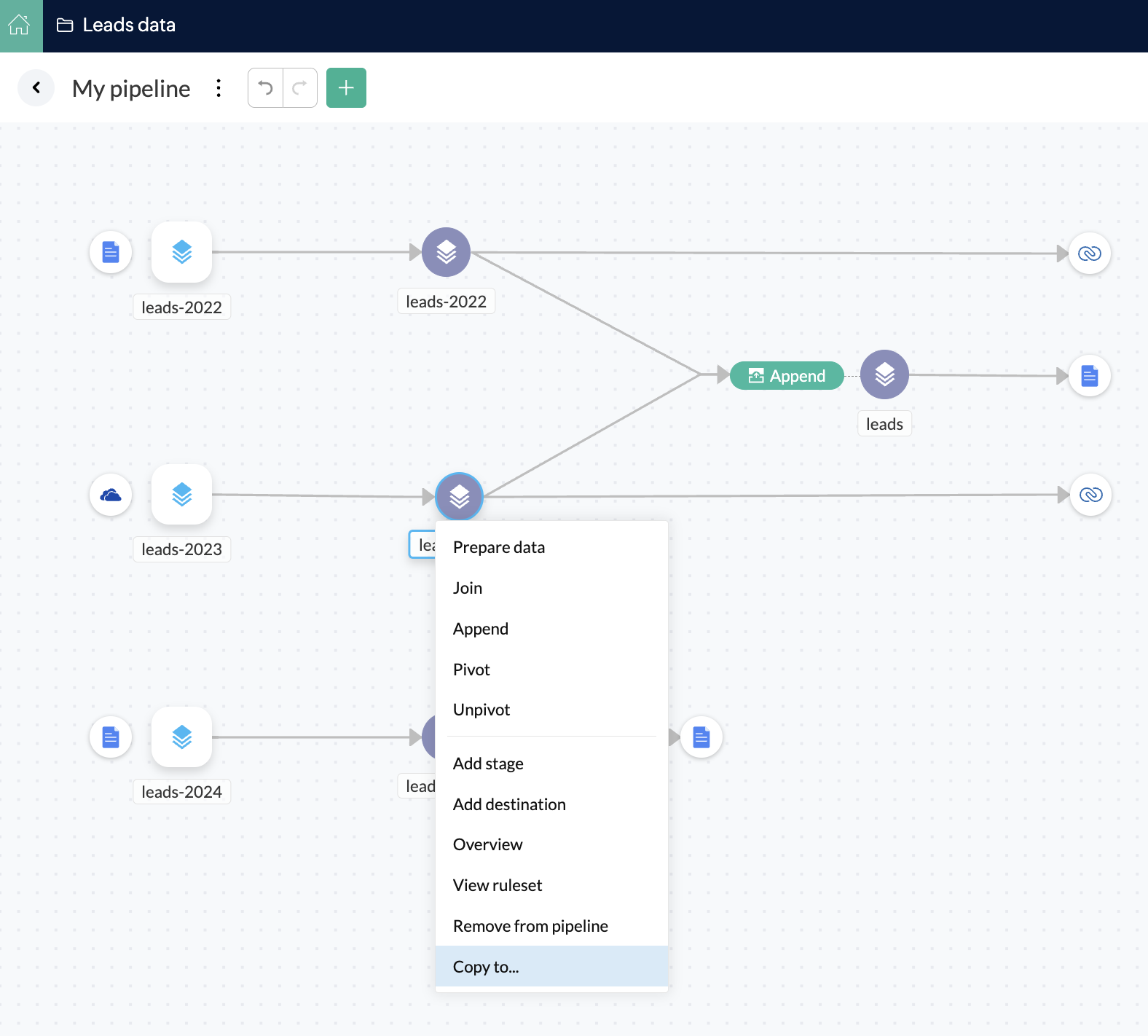

6. Click the  icon or right click the stage and choose the following options.

Prepare data

Join

Append

Pivot

Unpivot

Add stage

Add destination

Data destination is a place where you want to export your data to. It can be a cloud database, business applications like Zoho CRM, Zoho Analytics, etc. You can choose your preferred destination out of 50+ data destinations in DataPrep to export your prepared data to.

Overview

The overview shows the list of the name of the dataset created by, created on, last modified by, last modified, columns, rule count, data quality, and data preview.




You can also choose to Prepare Data to open the DataPrep Studio page and explore more data transforms.

View ruleset

Remove from pipeline

Copy to

To copy a flow from one pipeline to another, click the  icon on any stage or right-click the stage linked to your data source and select the Copy to option. Alternatively you can right-click the data source or data destination icon

The whole upstream and downstream of the selected flow will be copied and added to the new pipeline.

Note: Copy of the data source will be created as well, when a flow is copied from one pipeline to another pipeline.

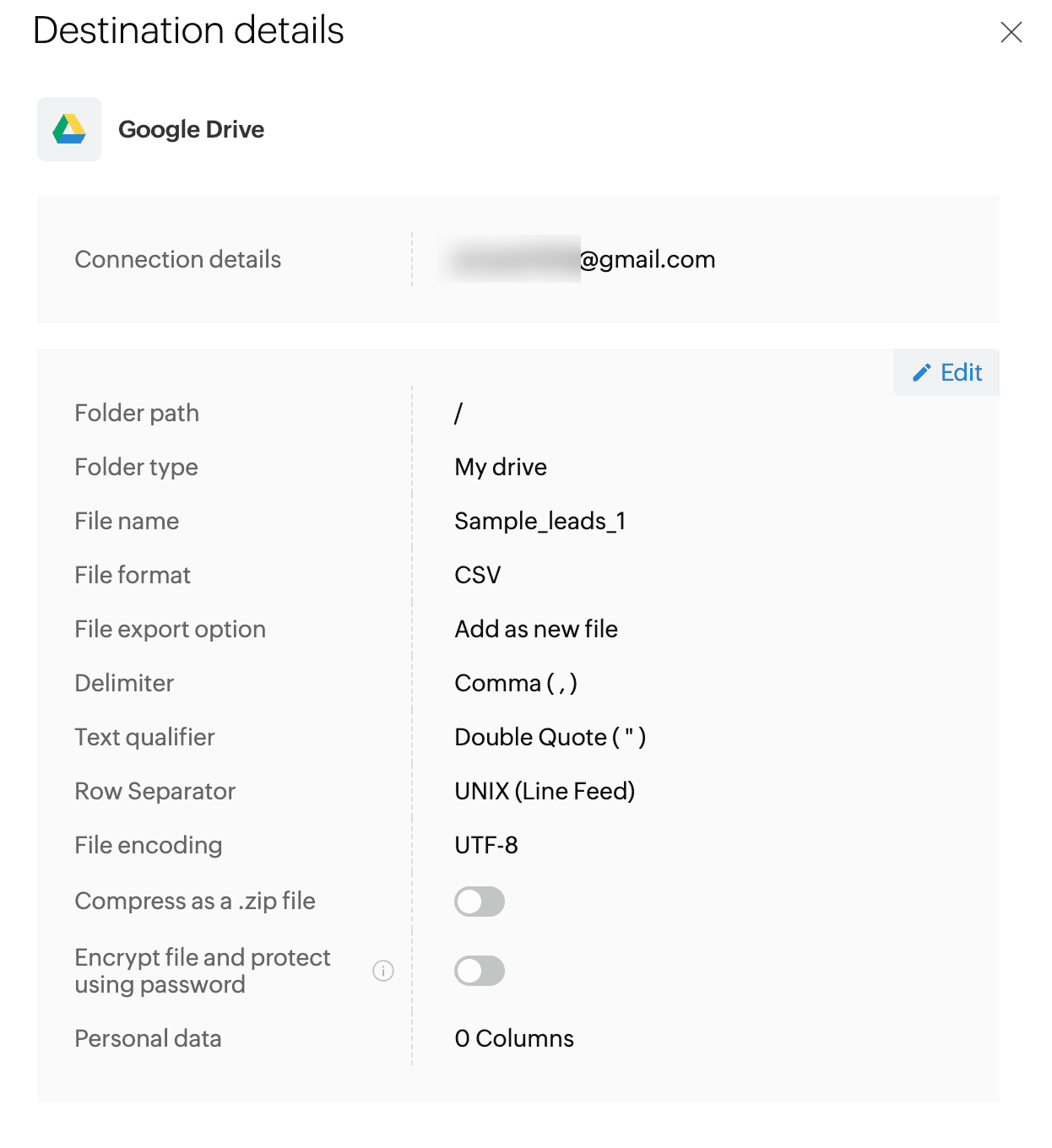

Destination details

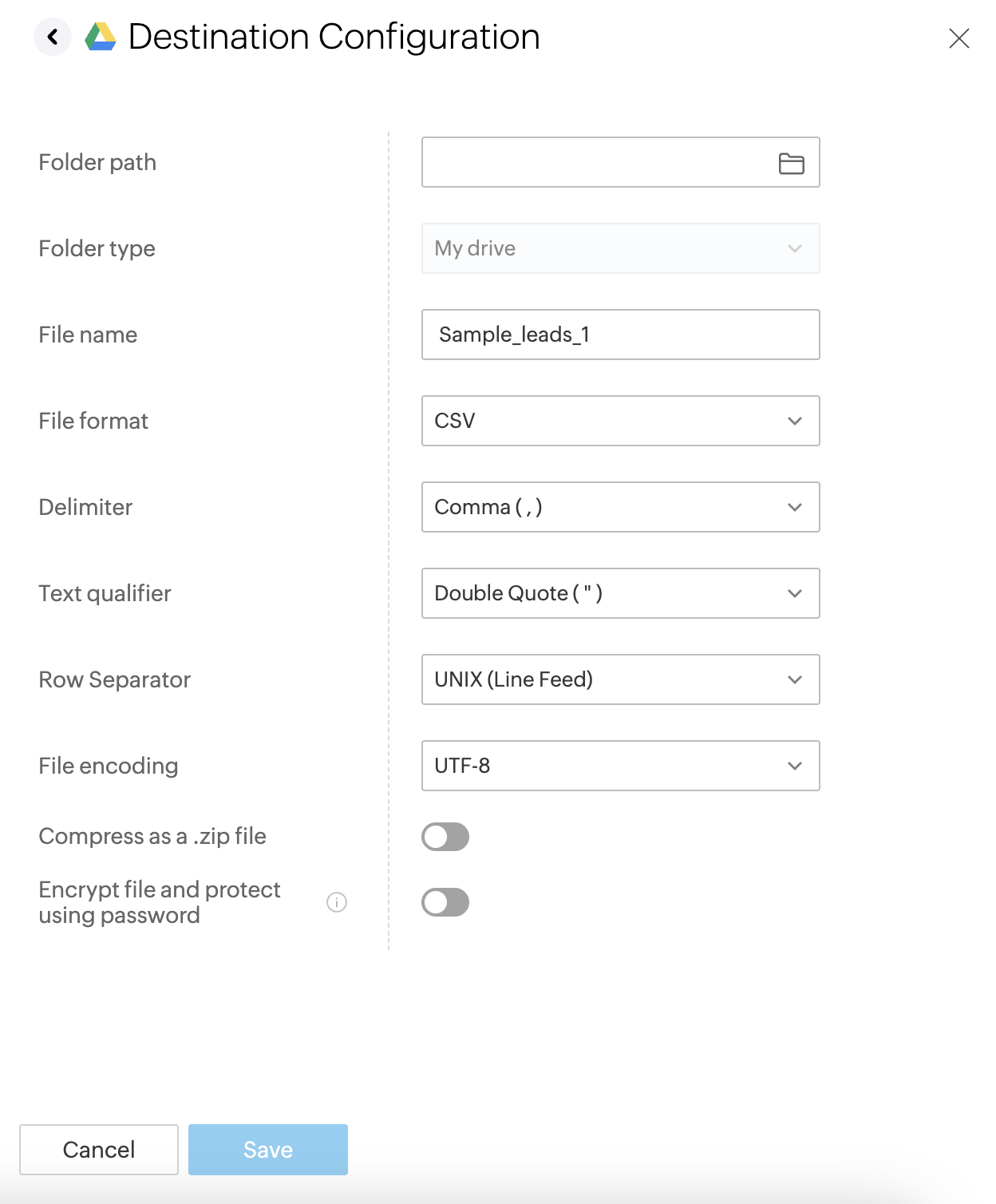

7. Click the destination once to view the details such as Connection details, Folder path, File export option, File name, File format, Delimiter, Text qualifier, Row Separator, File encoding, Compress as a .zip file, Personal data etc. Click the Edit option to edit the destination details.

Note: Changing the file format from CSV or TSV to XSLSX or HTML will not be supported.

Copy to

3. To copy a flow from one pipeline to another, right-click the data source or data destination icon and select the Copy to option. Alternatively, you can click the  icon  or right-click the stage linked to your data source or any other stage.

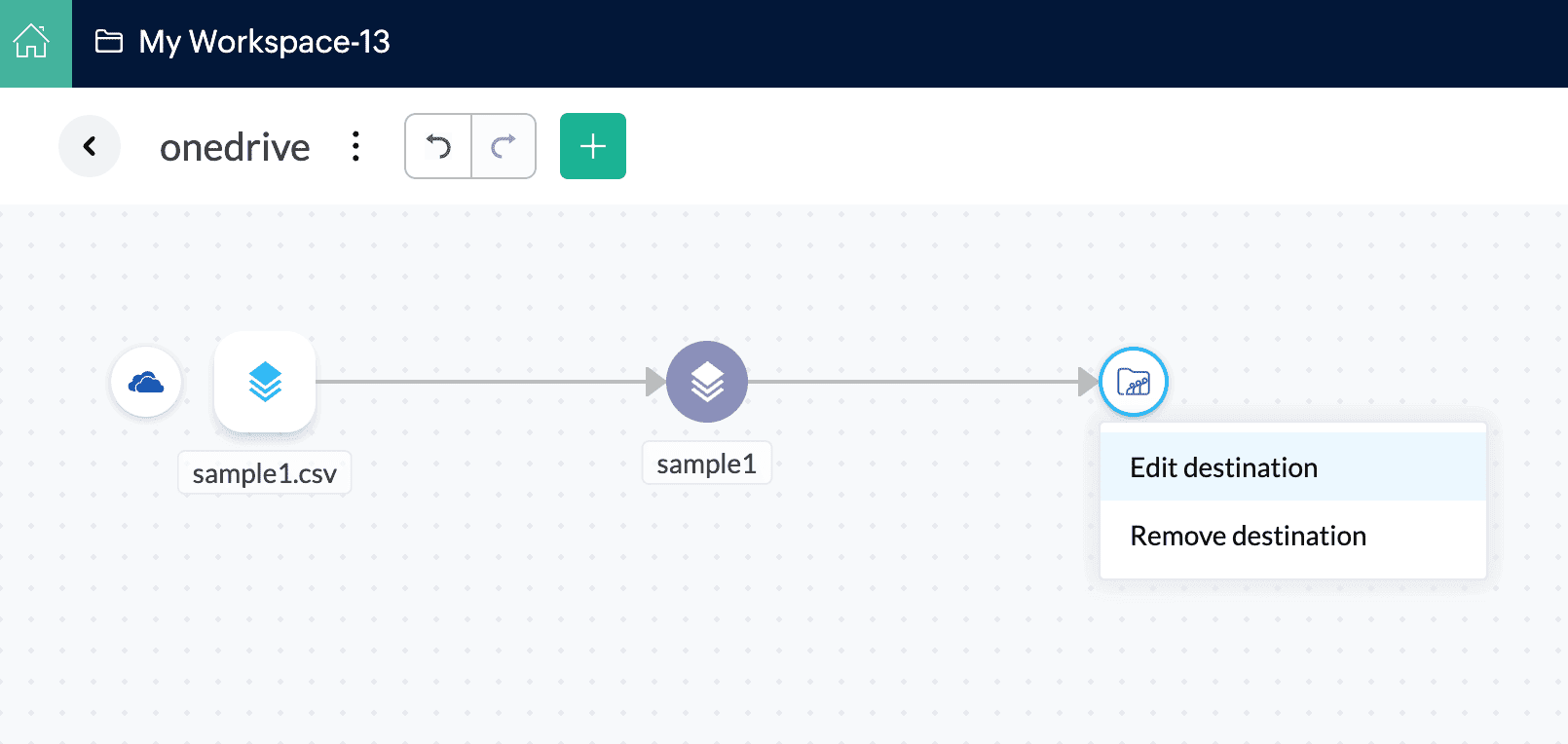

Right click the destination and you'll find the following option,

Edit destination - You can change the destination of your pipeline using this option. Click the Edit destination option and you will redirected to the Choose your destination dialog box, from where you can choose your preferred destination out of 50+ data destinations in DataPrep.

Remove destination - You can use this option to remove the destination added to your pipeline.

Schedule

The Schedule option is used to schedule the import from various sources, apply the transforms, and export to the destinations in your pipeline at regular intervals. You can also import incremental data from various sources like cloud storage, CRM, Creator, etc. while scheduling. Incremental data import is a method used to import new or modified records after the previous sync. Click here to know more about how to schedule a pipeline.

Run

Manual run

 By triggering the manual run option in your pipeline, you can export the data you have prepared to your destination. A manual run will run your pipeline on the existing data without refreshing, which means no new data will be imported. Click here to know more about how to execute a manual run in a pipeline.



Backfill run

Backfill run is an option used to export the data you have prepared to your destination.  Backfill run can be mainly used to catch-up with failed schedules or for users who want to import specific timeframe data or to manually fetch incremental data without scheduling a job. Data interval needs to be defined before triggering a backfill run. Click here to know more about how to execute a backfill run in a pipeline.

Webhooks

Zoho DataPrep allows you to trigger your pipeline using Webhooks. A webhook is a user-defined HTTP callback that is triggered when a particular event occurs at the source site. When the event occurs, the source site makes an HTTP request to the URL specified. Click here to know more about Webhooks.

Zoho Flow

Zoho DataPrep allows you to trigger your pipeline using Zoho Flow. Zoho Flow is an integration platform which connects cloud applications. It helps you set up workflows to automate information exchange among the apps you use. Click here to know more about Zoho Flow.

Mini map

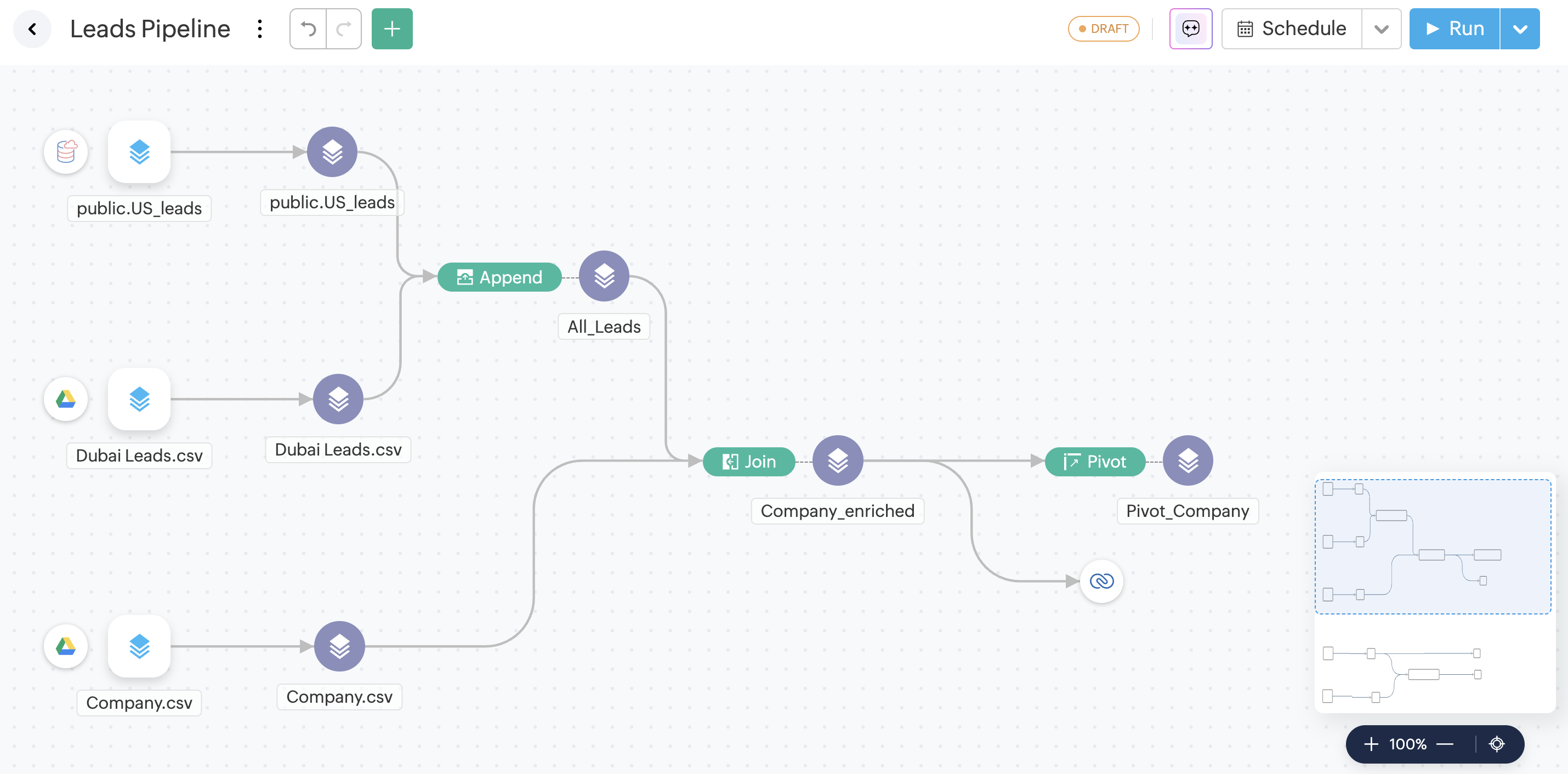

It is located at the bottom-right corner of the pipeline builder, next to the zoom in/out controls. The mini map offers a compact visual representation of the entire pipeline. This feature is especially helpful for navigating and understanding the layout of large or complex pipelines.
