To use Google Maps services for Address Auto-fill and Postal/Zip Code Validation, a Google Maps connection must be created using a Google API key. The steps below explain how to create the connection and obtain the API key from Google.

Steps to Create a Google Maps connection

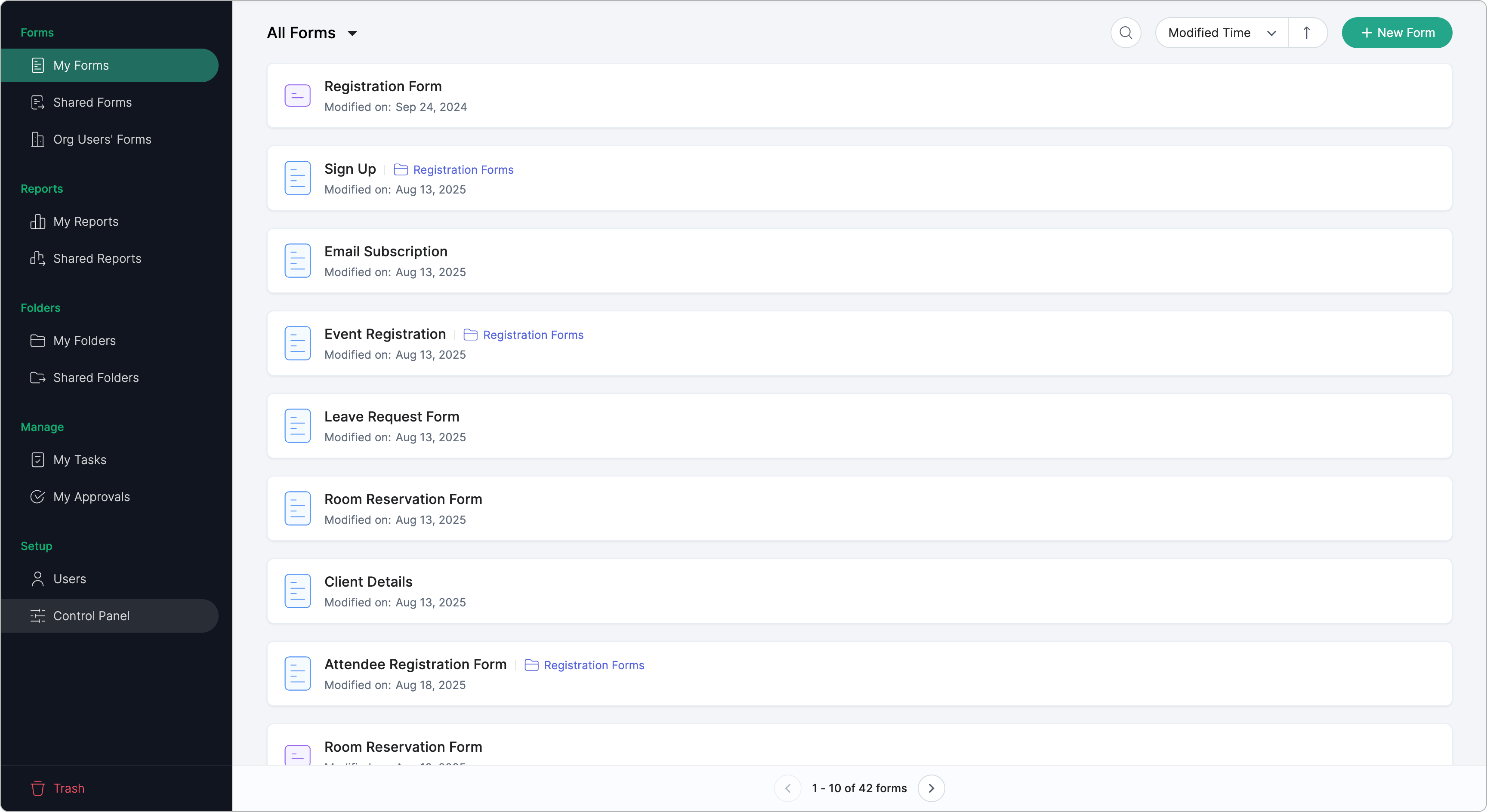

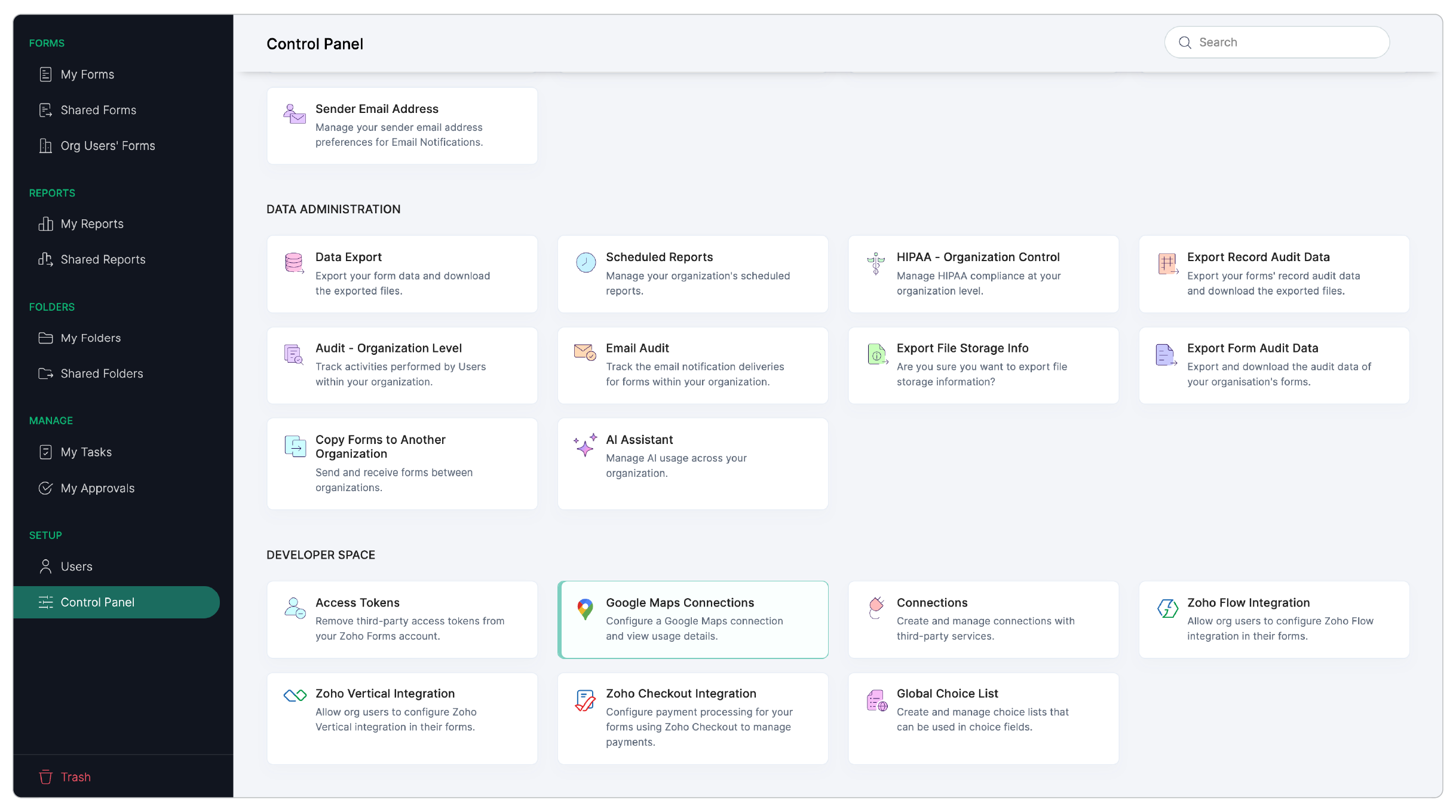

1. On the forms listing page, in the left pane under Setup, click Control Panel.

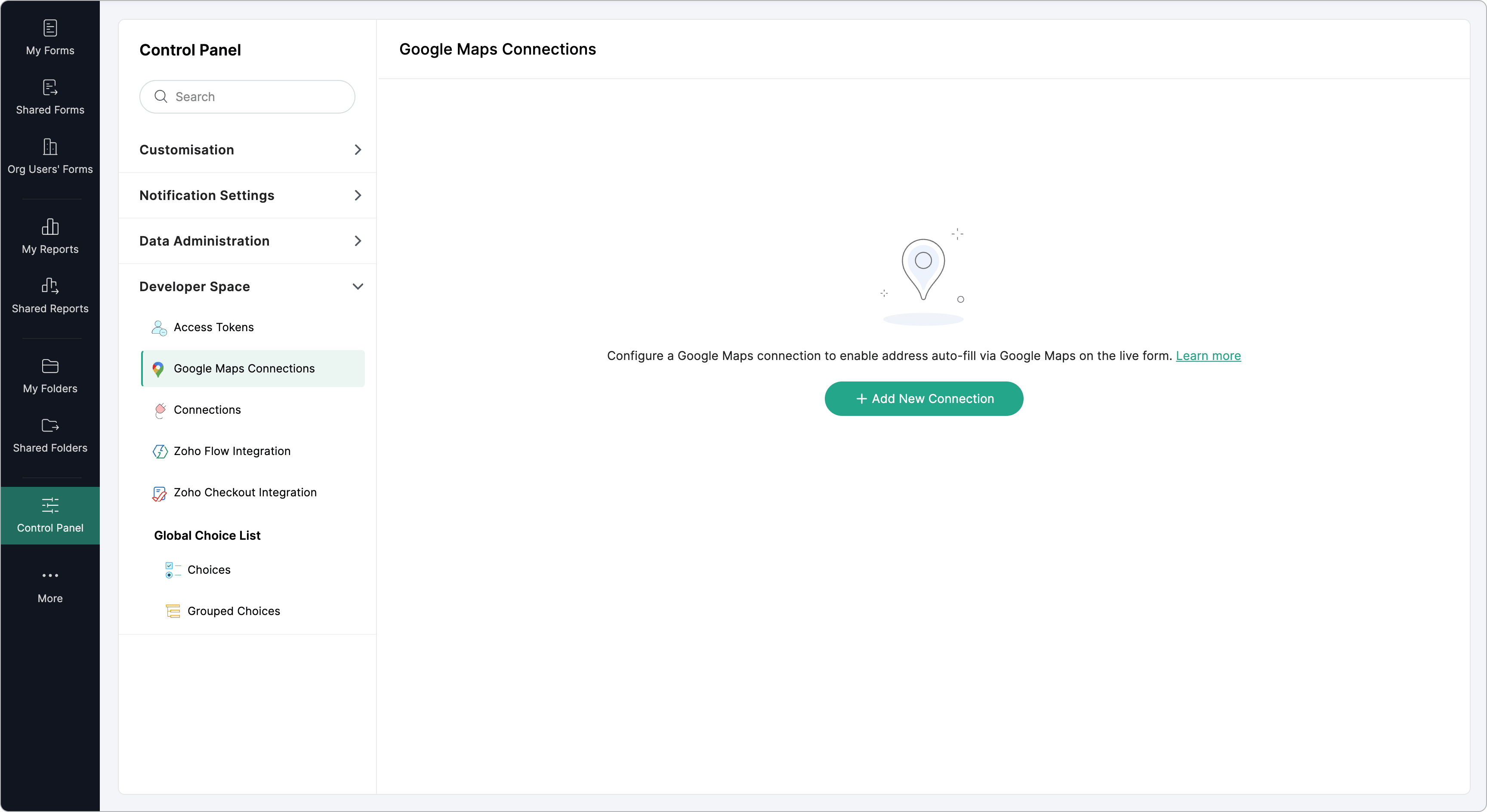

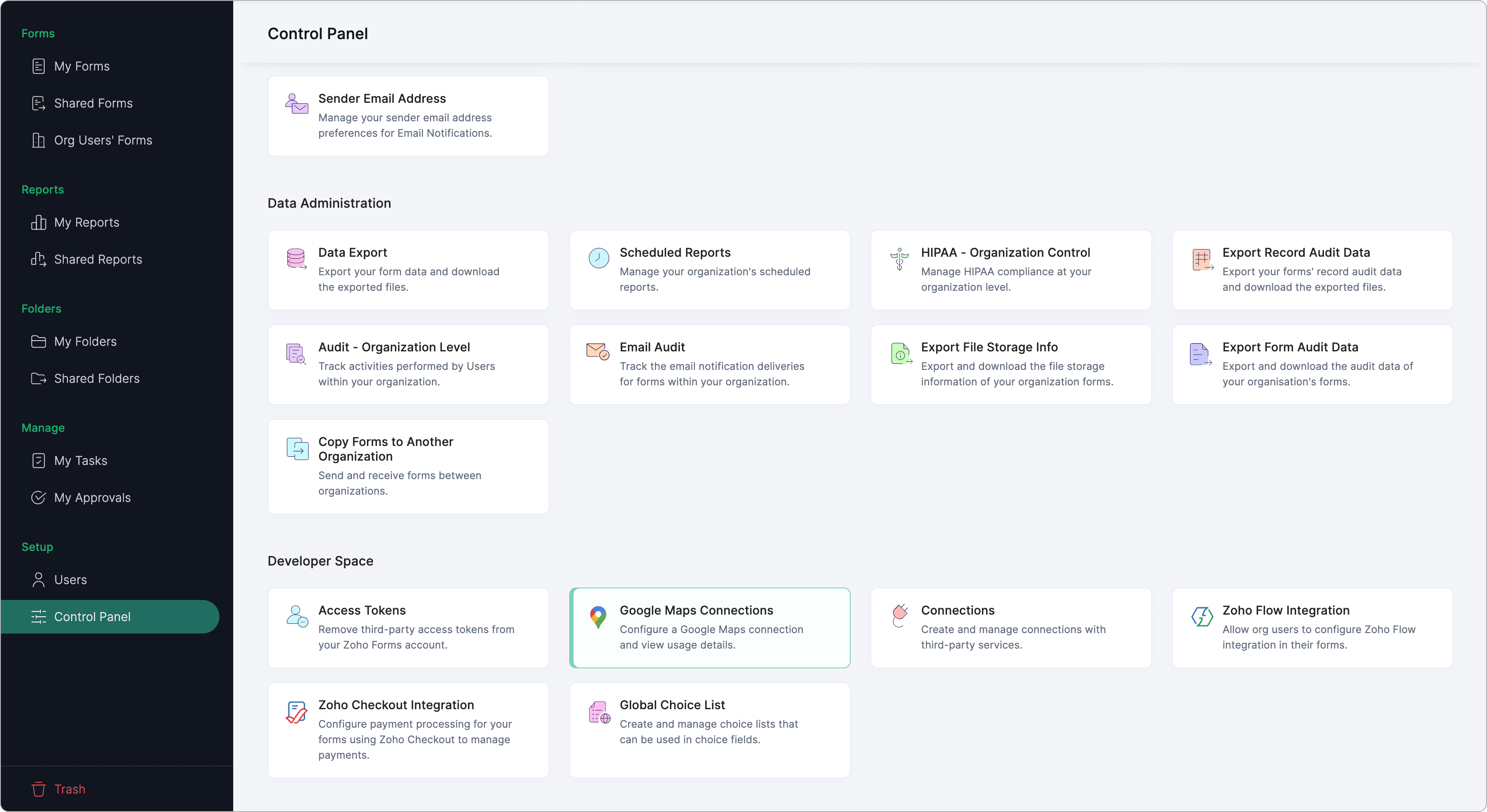

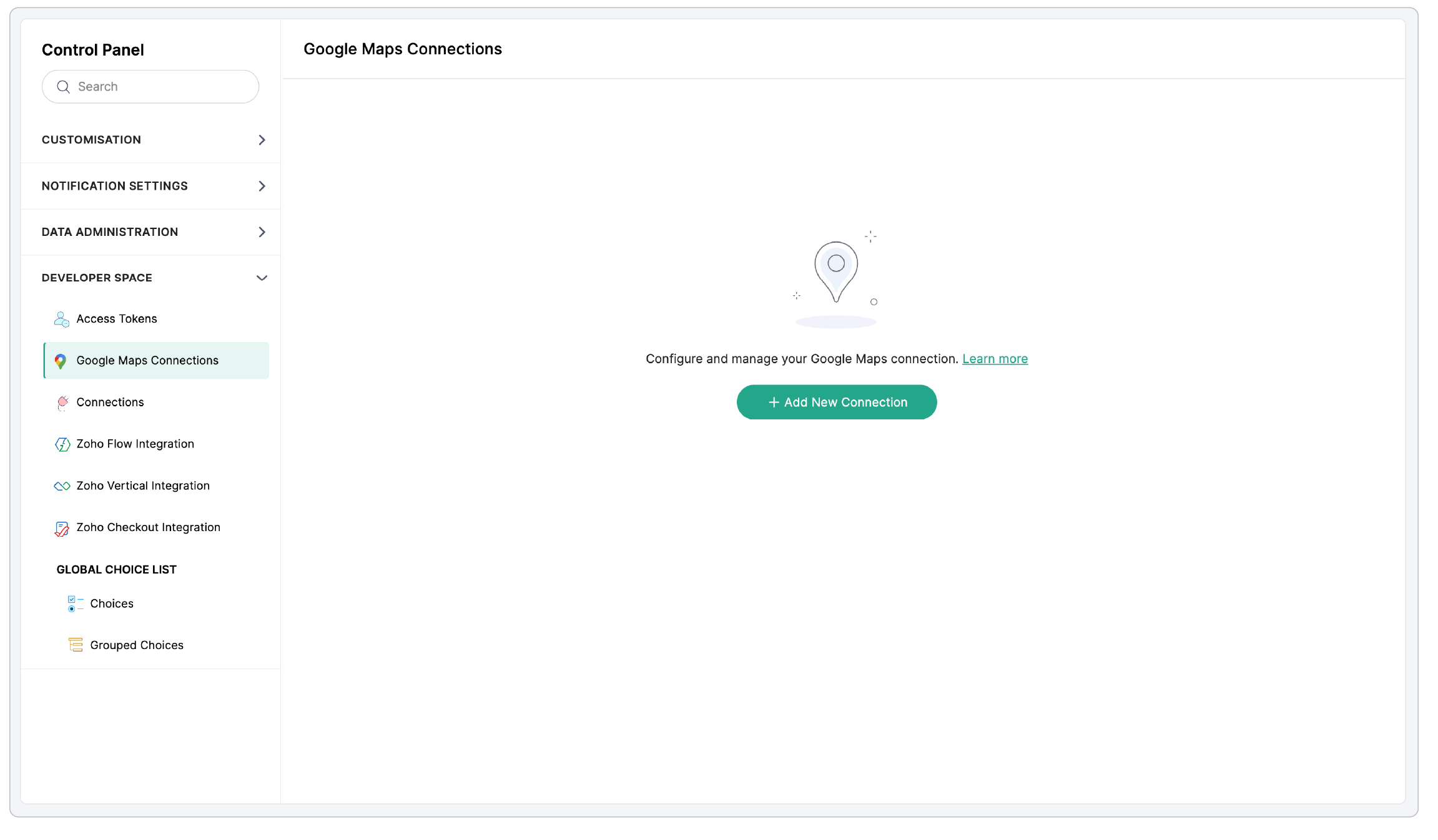

2. Click Google Maps Connections under Developer Space.

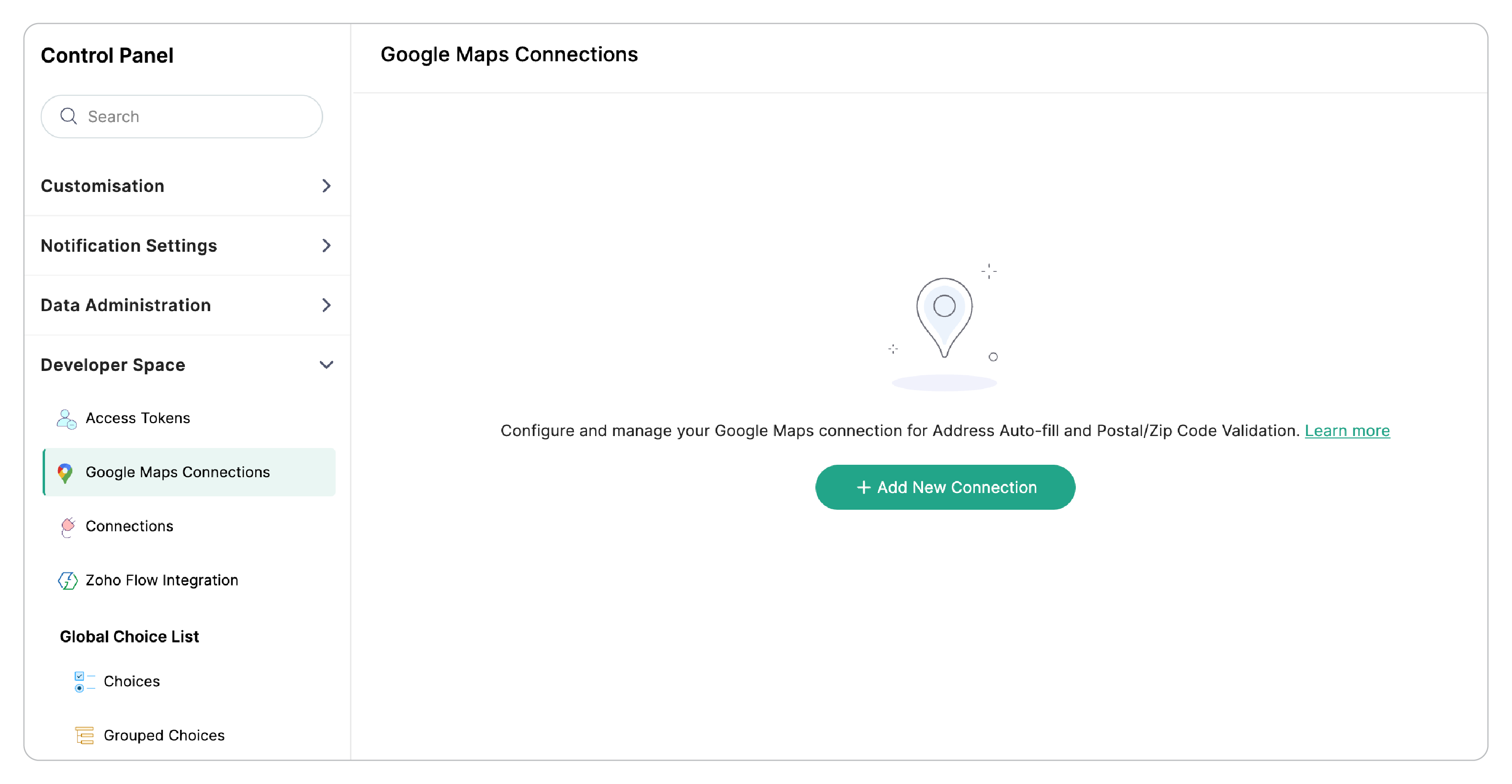

3. Click Add New Connection.

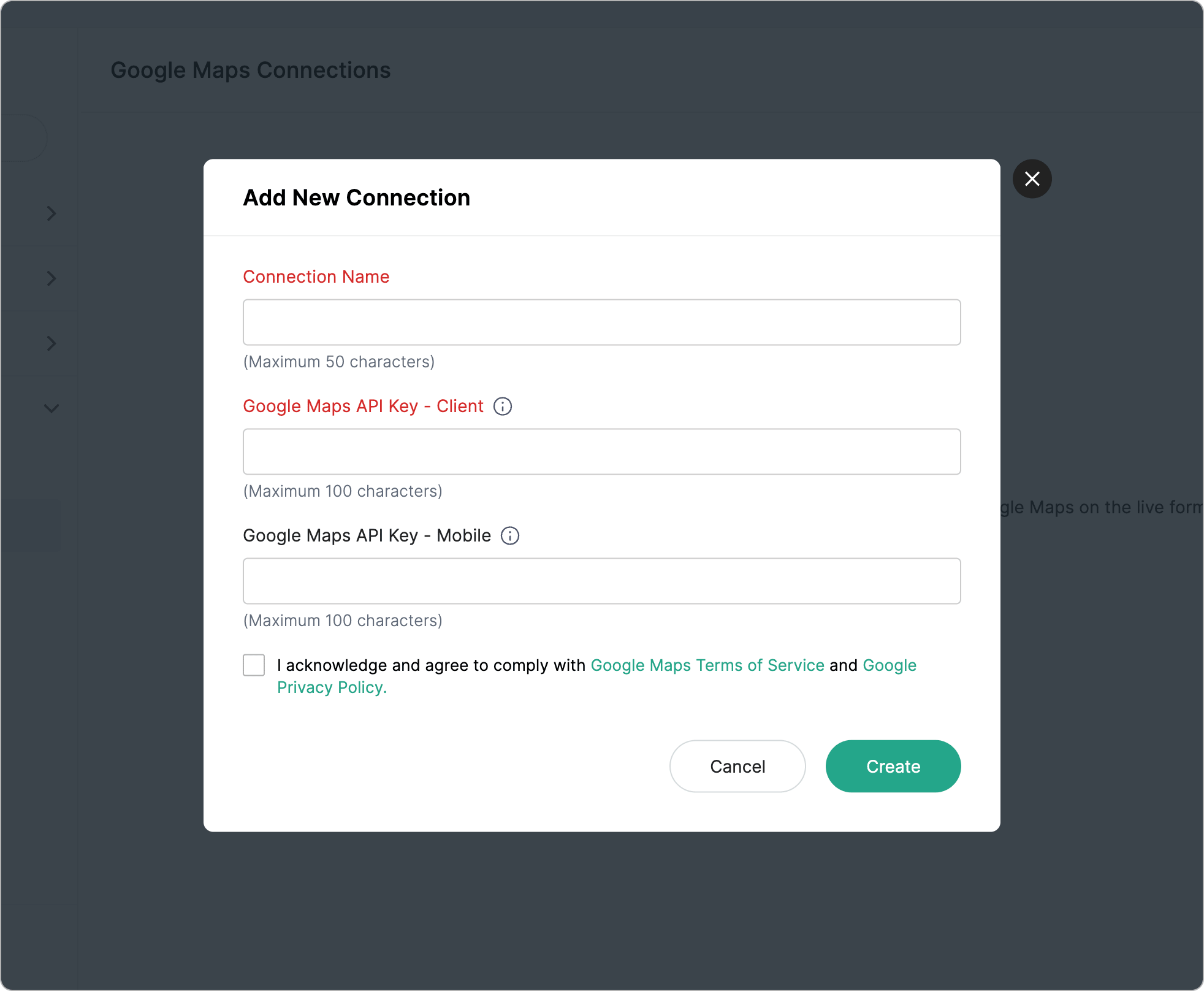

4. On the Add New Connection popup, enter a Connection Name.




5. Provide the Google Maps API Key - Client value.
   This key will be used to access Google Maps from the web app.



6. Provide the Google Maps API Key - Mobile value.
   This key will be used to access Google Maps from the Zoho Forms mobile app.
   Learn More about creating an API key


   Notes:


   1. If the Google Maps API key - Mobile is left empty, the API key provided for the client (web app), will be re-used for mobile app.
   2. To use Google Maps features in the web app, enable the Places API and Maps JavaScript API from the Google API Library. For Postal/Zip Code Validation feature, you must also enable the Geocoding API. Learn More

   3. To use Google Maps features in the  Zoho Forms Mobile app, enable Places API and Geocoding API from the Google API Library. Learn More

7. Accept the terms and conditions and privacy policy of Google, then click Create to proceed.

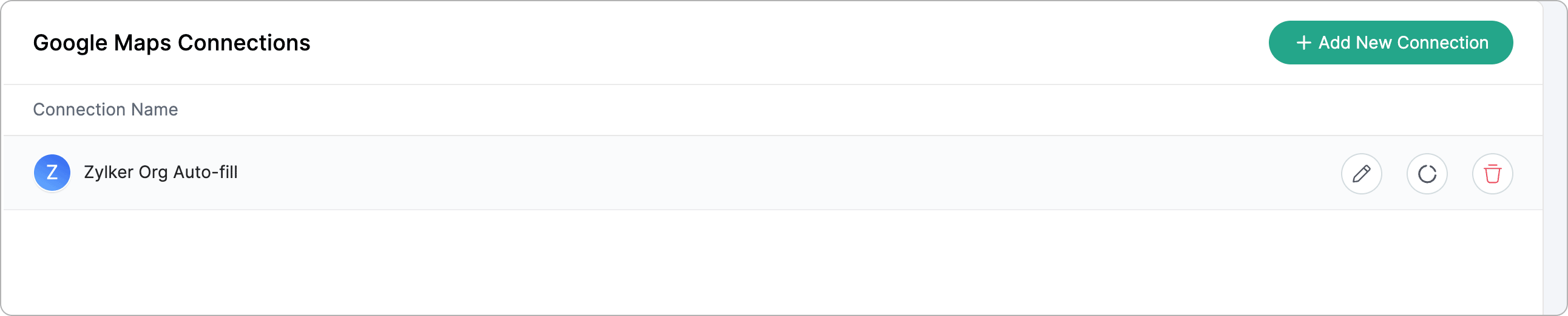

   Once created, connections can be viewed later by navigating to Control Panel > Google Maps Connections. Options to edit and delete the connection are available. Additionally, the usage details can be viewed by clicking the  icon.




Setting up a Google API Key

To use Google Maps features, a Google Maps connection must be created. This requires a Google API key.

Below are the prerequisites for creating an API Key:

1. Create a Google Cloud Project.

2. Create a Google Cloud Billing Account.

3. Link the Billing Account with your existing Project to enable billing.

4. Enable the required Google APIs by navigating to Google Maps Platform > APIs & Services.

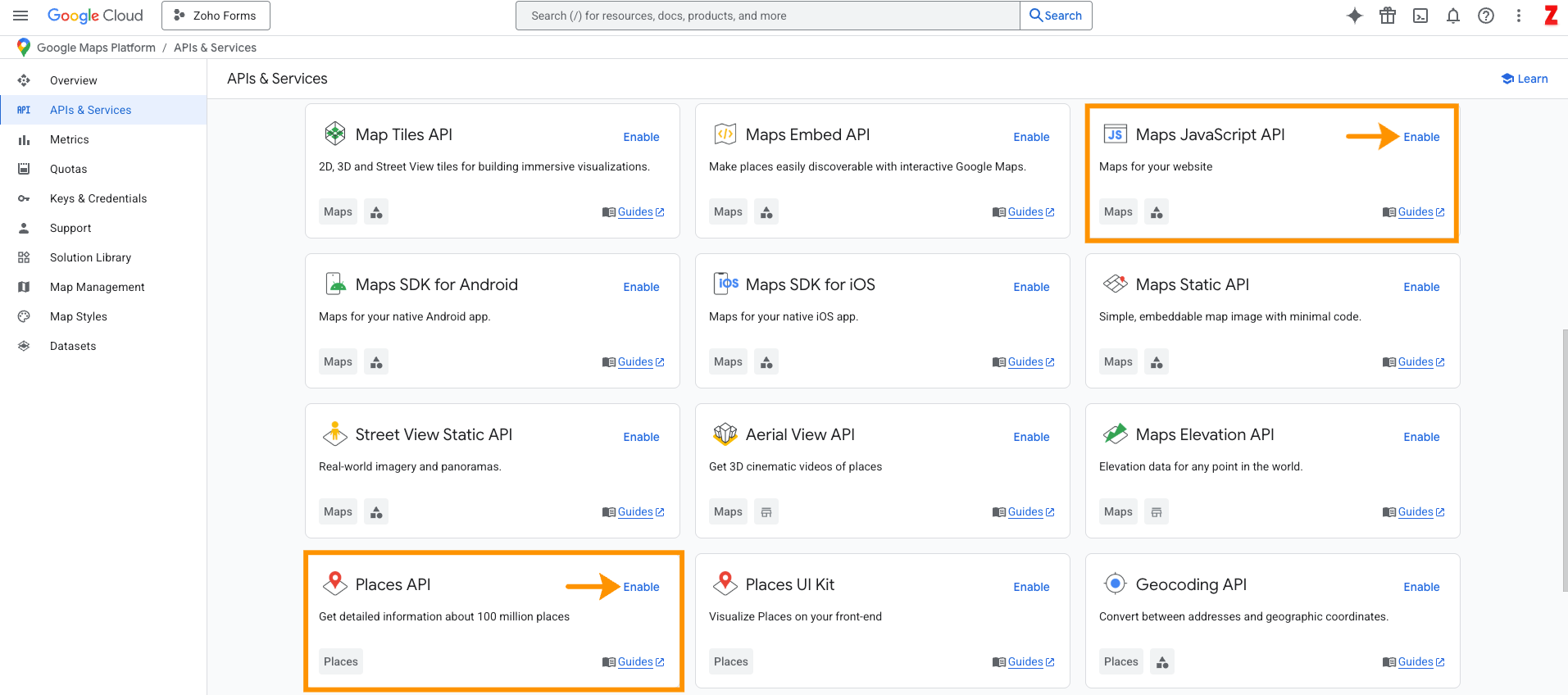

   To use Google Maps features in the web app, enable the Places API and Maps JavaScript API. Additionally, the Geocoding API is required for Postal/Zip Code Validation feature. After creating the key, provide the Google Maps API Key – Client value in the Google Maps connection. Learn More

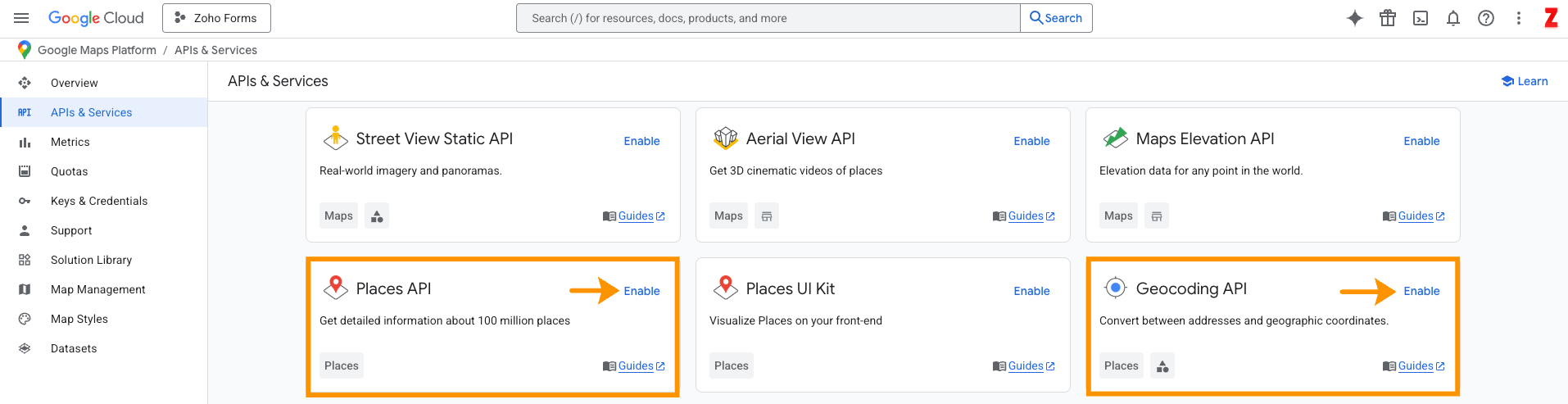

      To use Google Maps features in the Zoho Forms Mobile app, enable the Places API and Geocoding API. After creating the key, provide the Google Maps API Key – Mobile value in the Google Maps Connection. Learn More

Note:  If you have an existing Google Cloud Project and Google Cloud Billing Account, you need not create a new one. You can simply link them and proceed.

Creating an API Key

1. Go to the Google Cloud Console.

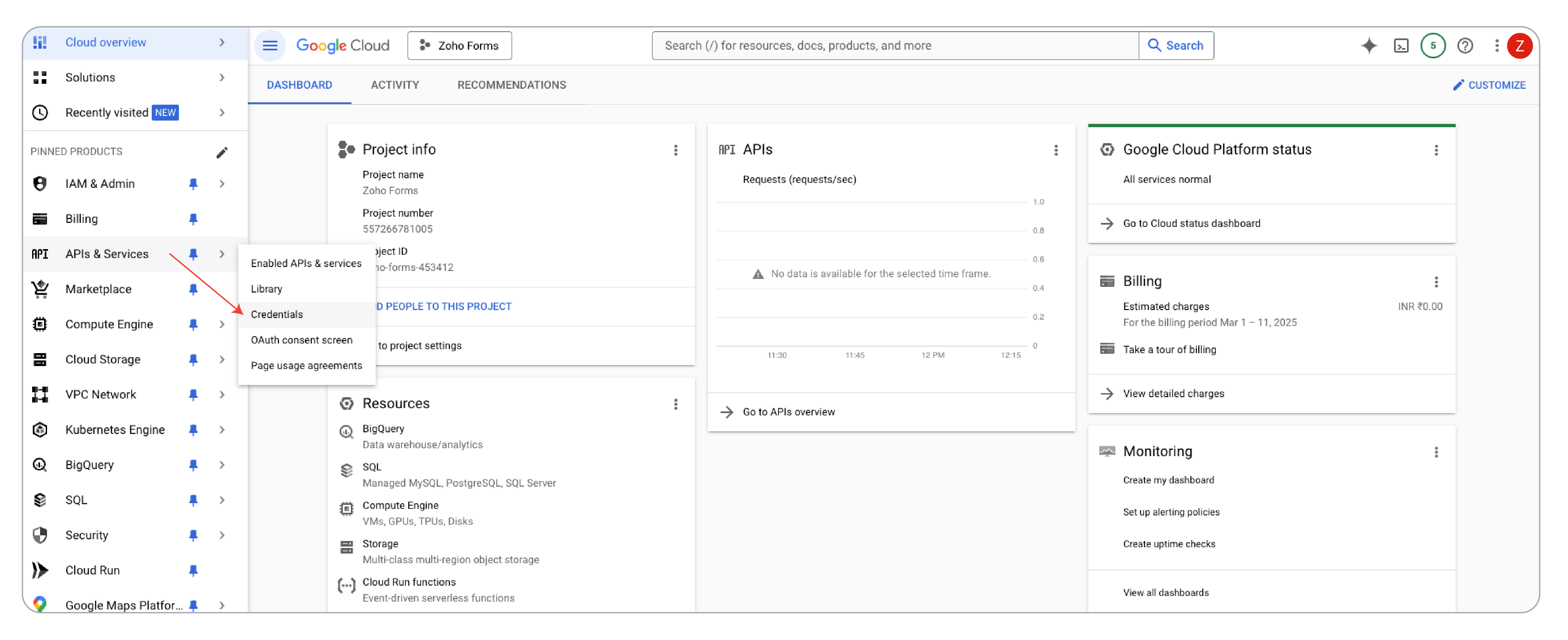

2. In the top-left corner, click APIs & Services.

3. Click Credentials from the available options.

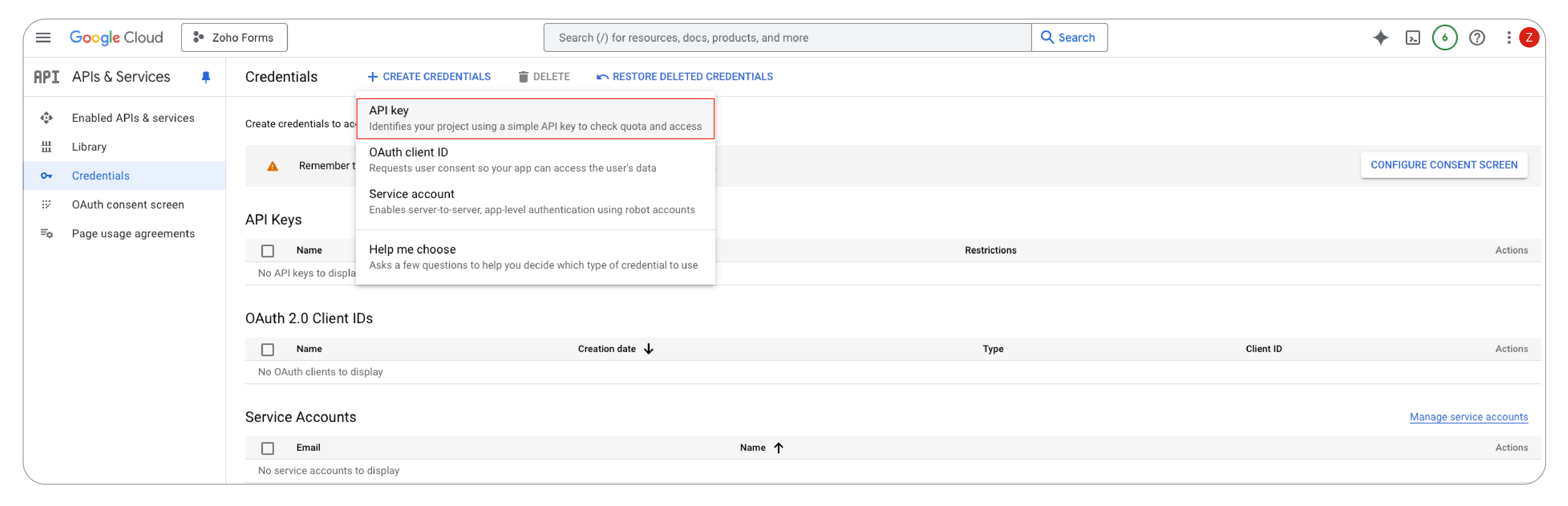

4. Click the + Create Credentials button at the top.

5. Choose API key from the list of options.

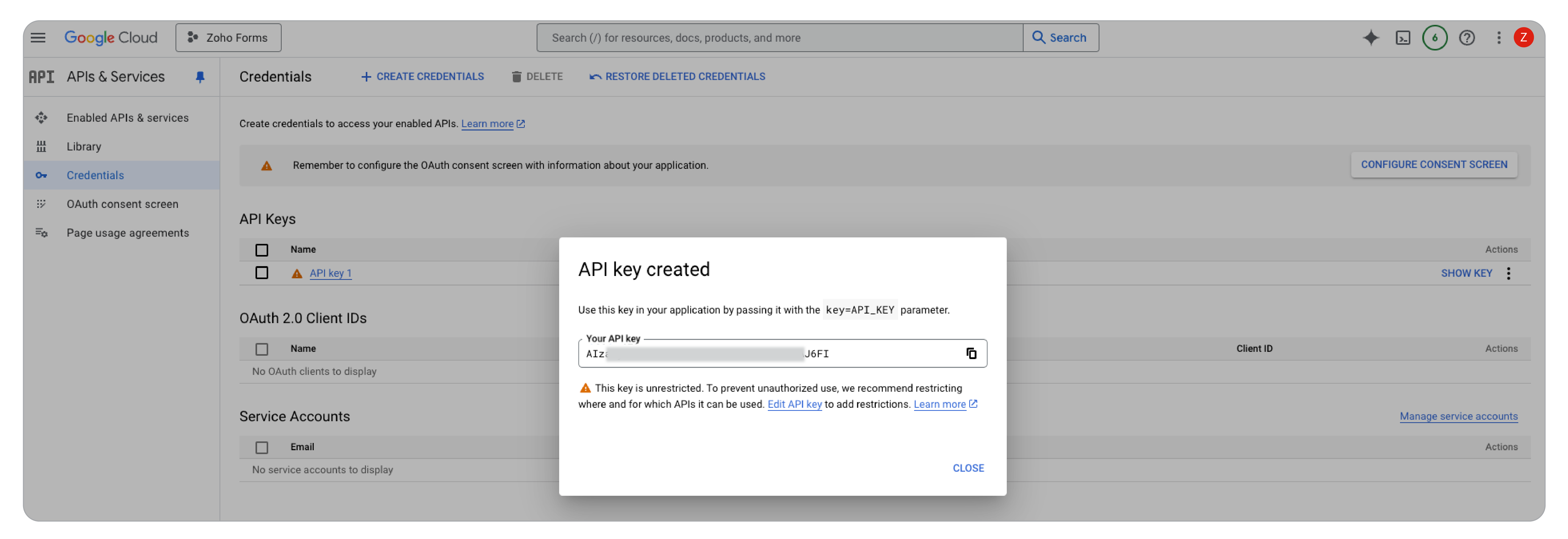

6. Copy the created API Key as shown in the image below.




Application restrictions defines which websites, IP addresses, or apps can use the API key. If you want to prevent unauthorized access outside of Zoho Forms, you should configure these restrictions accordingly.

API restrictions determine which APIs can be accessed using the API key.If you want to limit access to specific APIs, you must configure these settings.

To configure the restrictions:

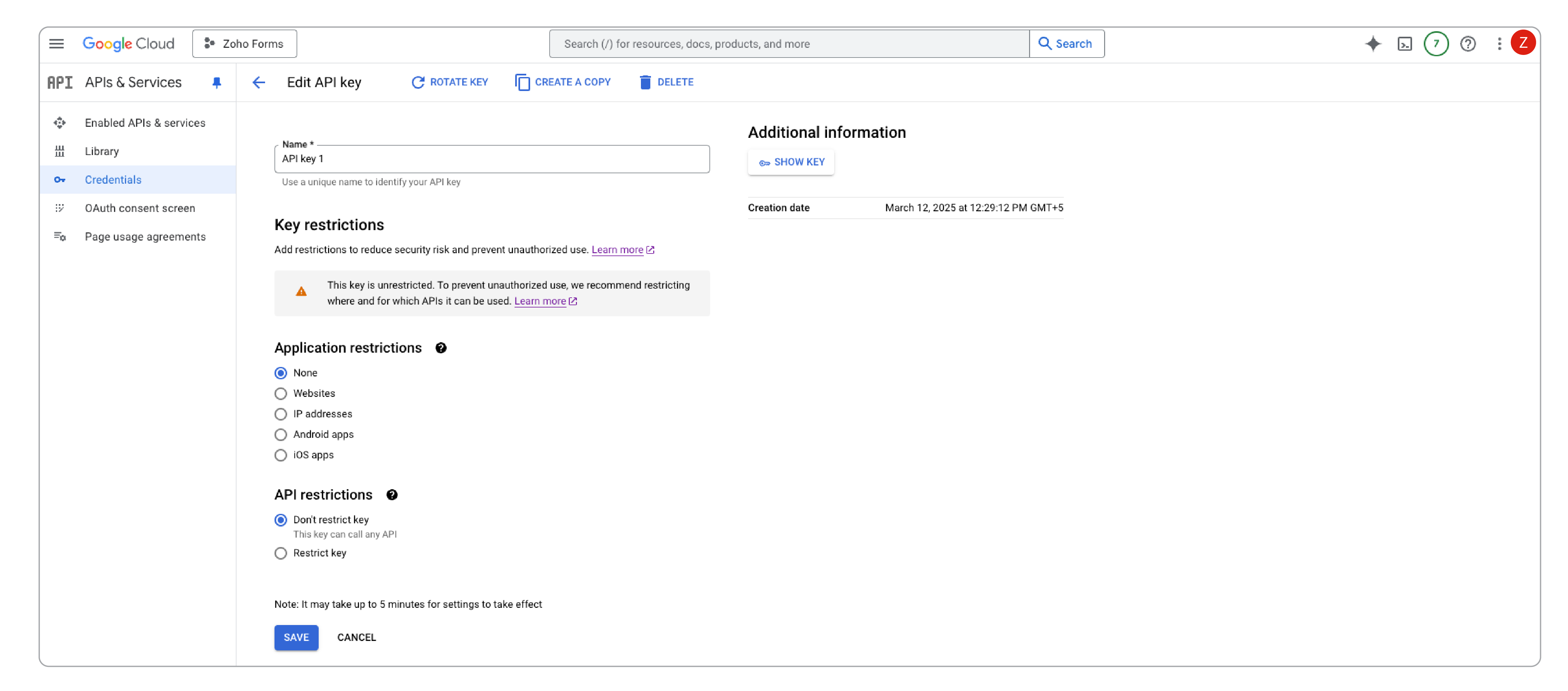

1. Click the Edit API key link in the popup shown in the previous image. Alternatively, navigate to Google Cloud Console > APIs & Services, click Credentials,
   and click the API key you just created.

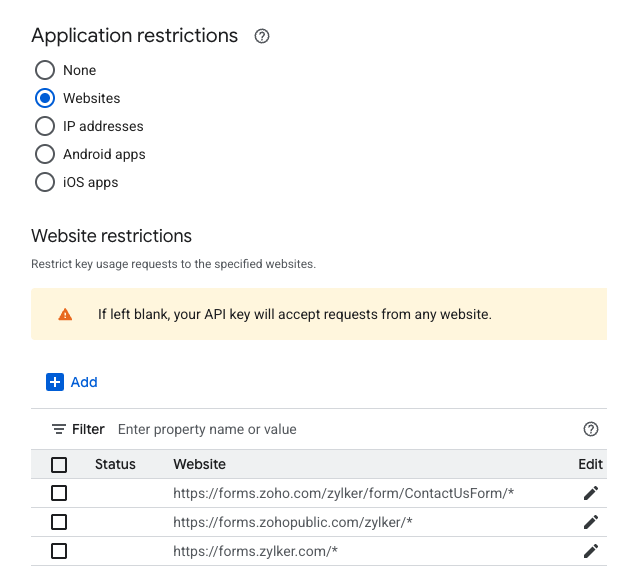

2. Under Application restrictions, select Websites (HTTP referrers) and add the websites to restrict the key usage.





   Add the domains based on your region. As you have added forms.zoho.com above for the US region, you can add forms.zoho.eu for the EU region, forms.zoho.in for the India region, and other domains as applicable. Custom domains, such as forms.zylker.com, can also be added if needed, as shown above.

   Note : To ensure Google Maps features work seamlessly in the Zoho Forms mobile app, it is not recommended to set any Application restrictions or API restrictions on the API key used.

3. Under API restrictions, click Restrict key and then select APIs you want to restrict.





   For example, to use the Google Maps feature Address Auto-fill in the web app, only Places API and Maps Javascript API are required. Hence, API usage can be limited to these two APIs.

   Note : Only the APIs enabled for the project will be listed here. To check the list of enabled APIs, navigate to the Google Maps Platform > APIs & Services. Learn More

4. Click Save.
