response = map();
response.put("send_to_device", true);
response.put("command_payload", {'value': 'on', 'status':1});
return response;

response = map();
response.put("send_to_device", true);

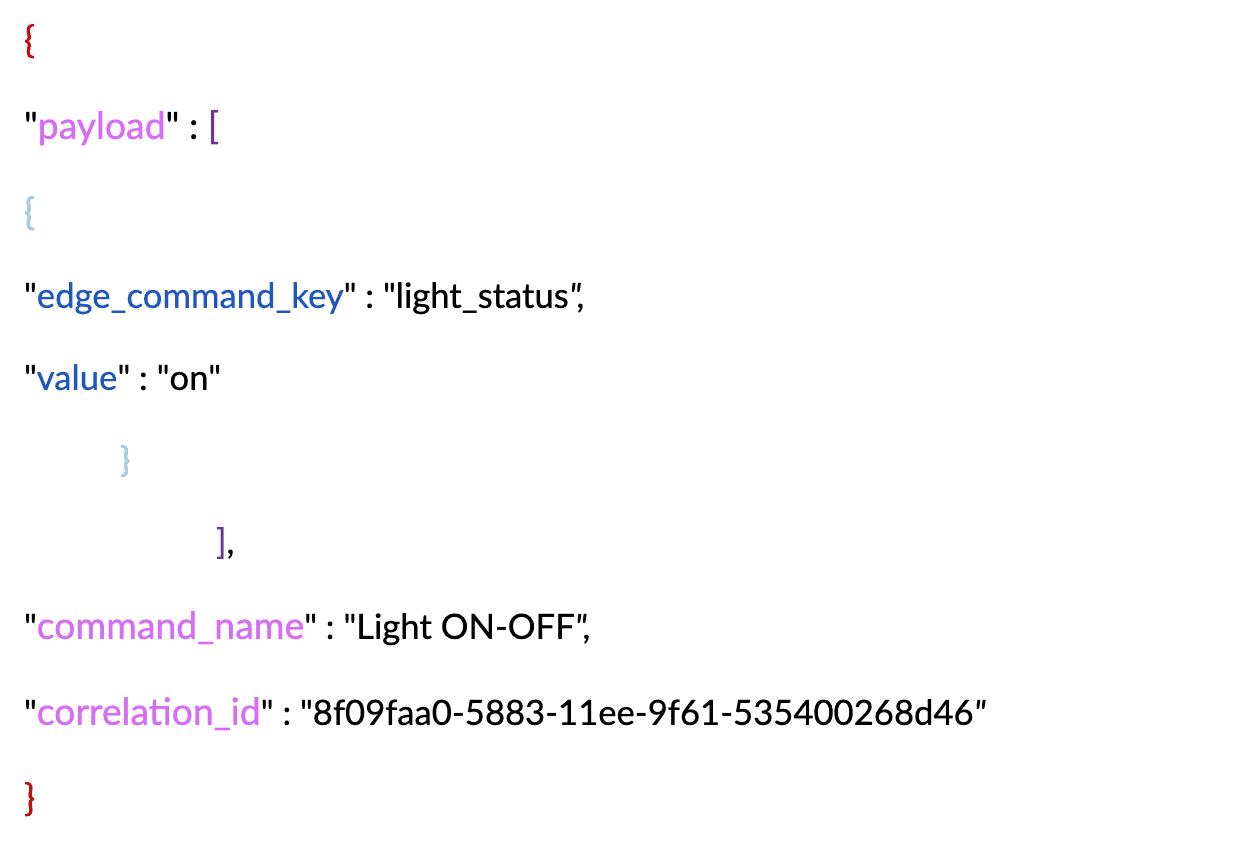

command_key = payload_map.get("commands").get(0).get("payload").get(0).get(" edge_command_key");
command_value = payload_map.get("commands").get(0).get("payload").get(0).get("value");
response.put("command_payload", {command_key, command_value});
return response;

response = map();
response.put("send_to_device",true);
response.put("post_function_ack",true); //handles acknowledgement internally
response.put("ack_status",1001); //acknowledgement set to success
response.put("command_payload",{"value":"on","status":1});
return response;

response.put("send_to_device",true);
response.put("post_function_ack",true);  //handles acknowledgement internally
response.put("ack_status",1001);  //acknowledgement set to success
command_key = payload_map.get("commands").get(0).get("payload").get(0).get("edge_command_key");
command_value = payload_map.get("commands").get(0).get("payload").get(0).get("value")
response.put("command_payload",{command_key:command_value});
return response;

Obtain the Command Custom Function ID

To obtain the command custom function ID,

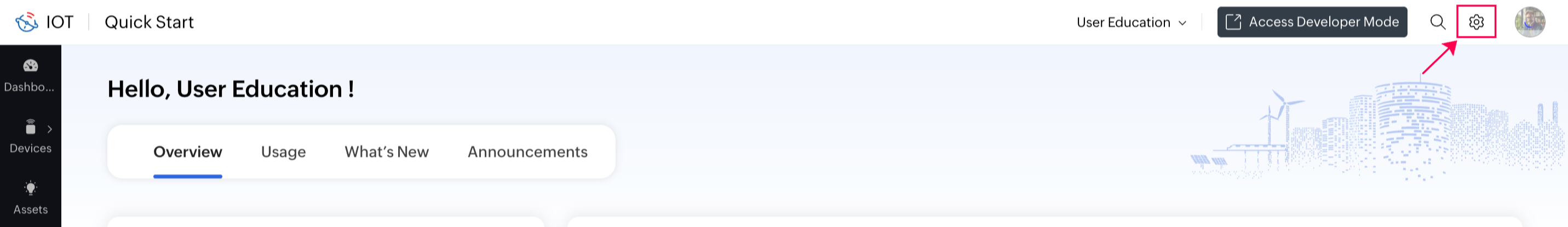

1. Click the Settings icon in the top right corner.

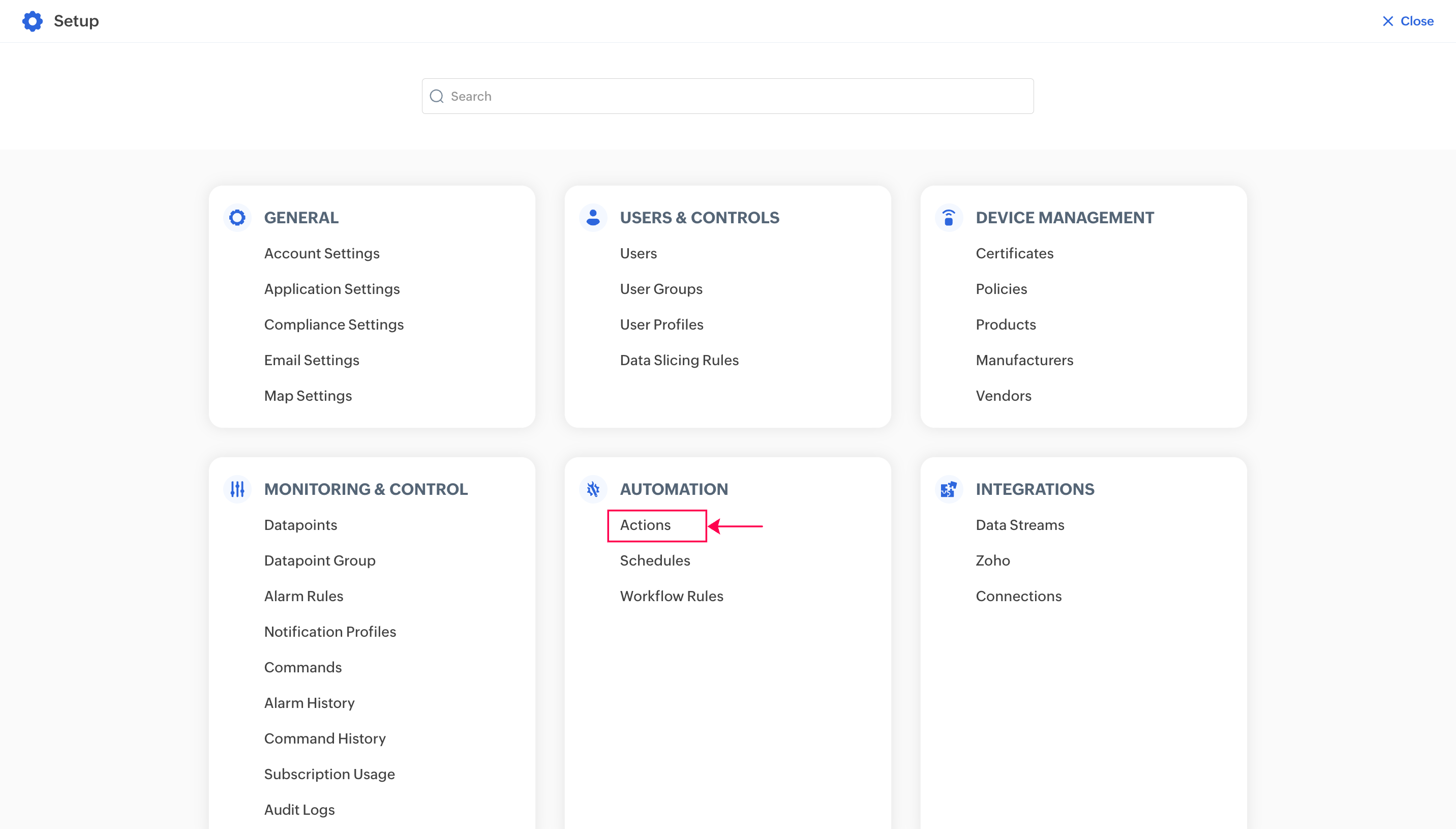

2. Click Actions in the Automation section.

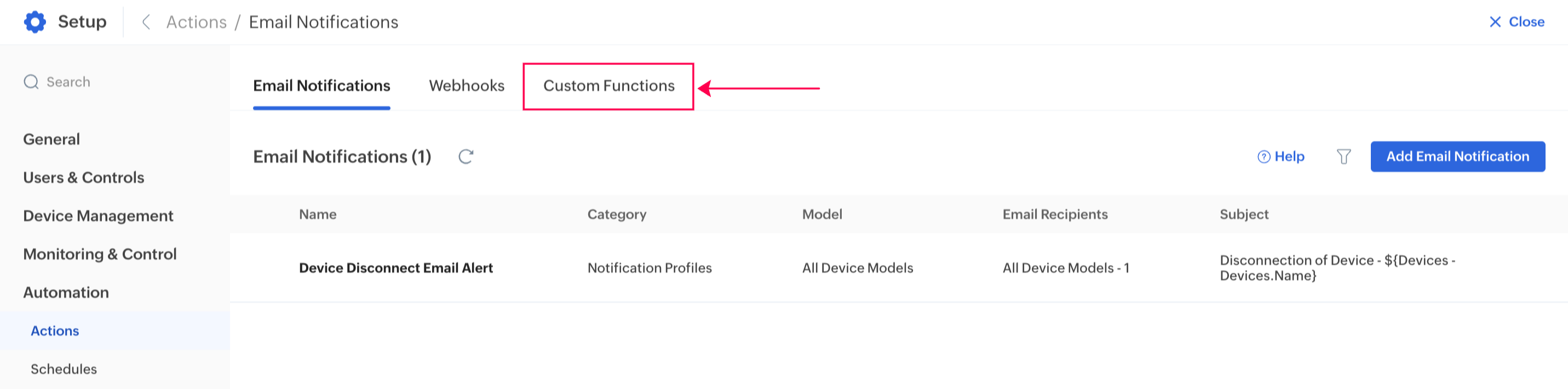

3. Select the Custom Functions tab.

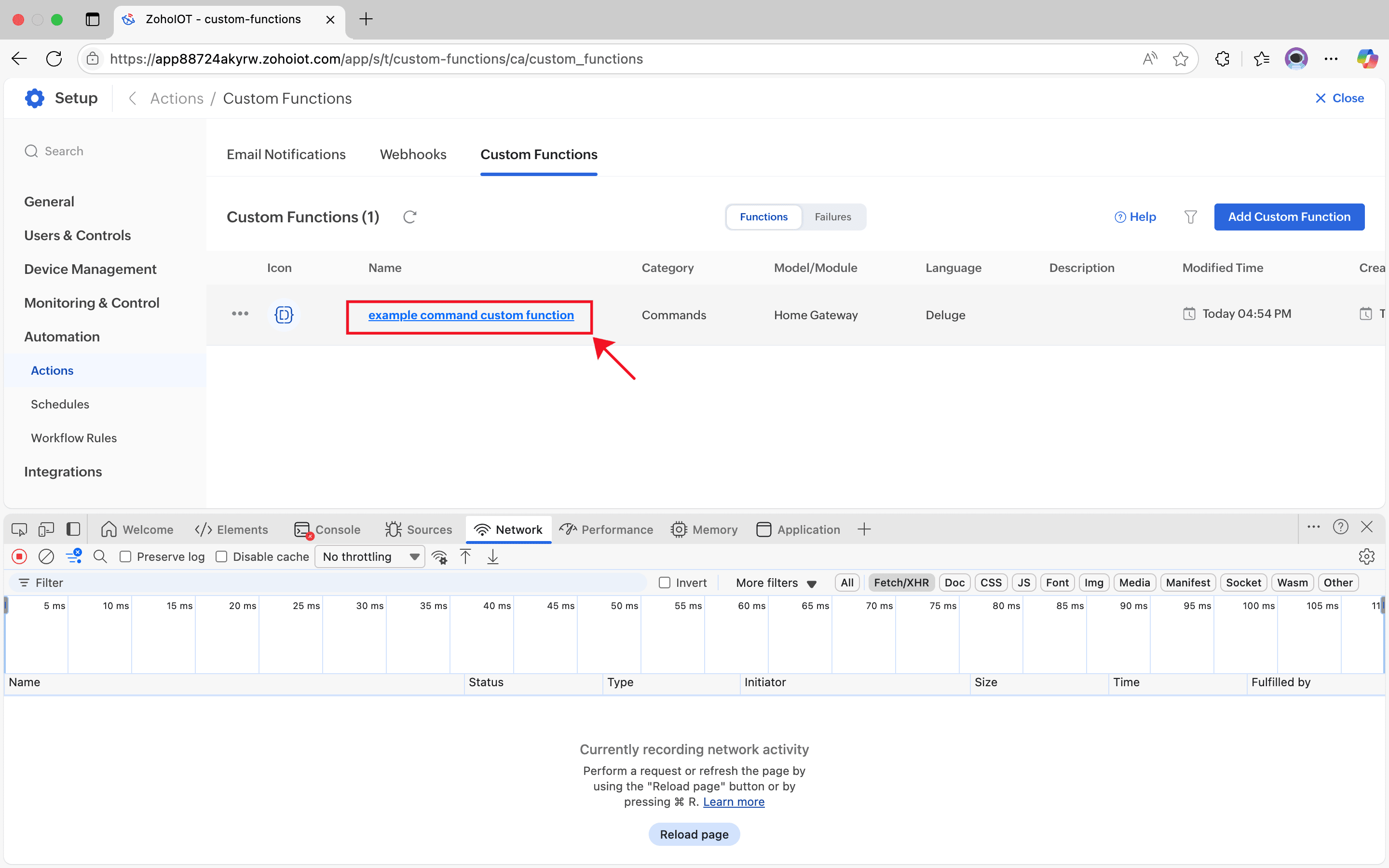

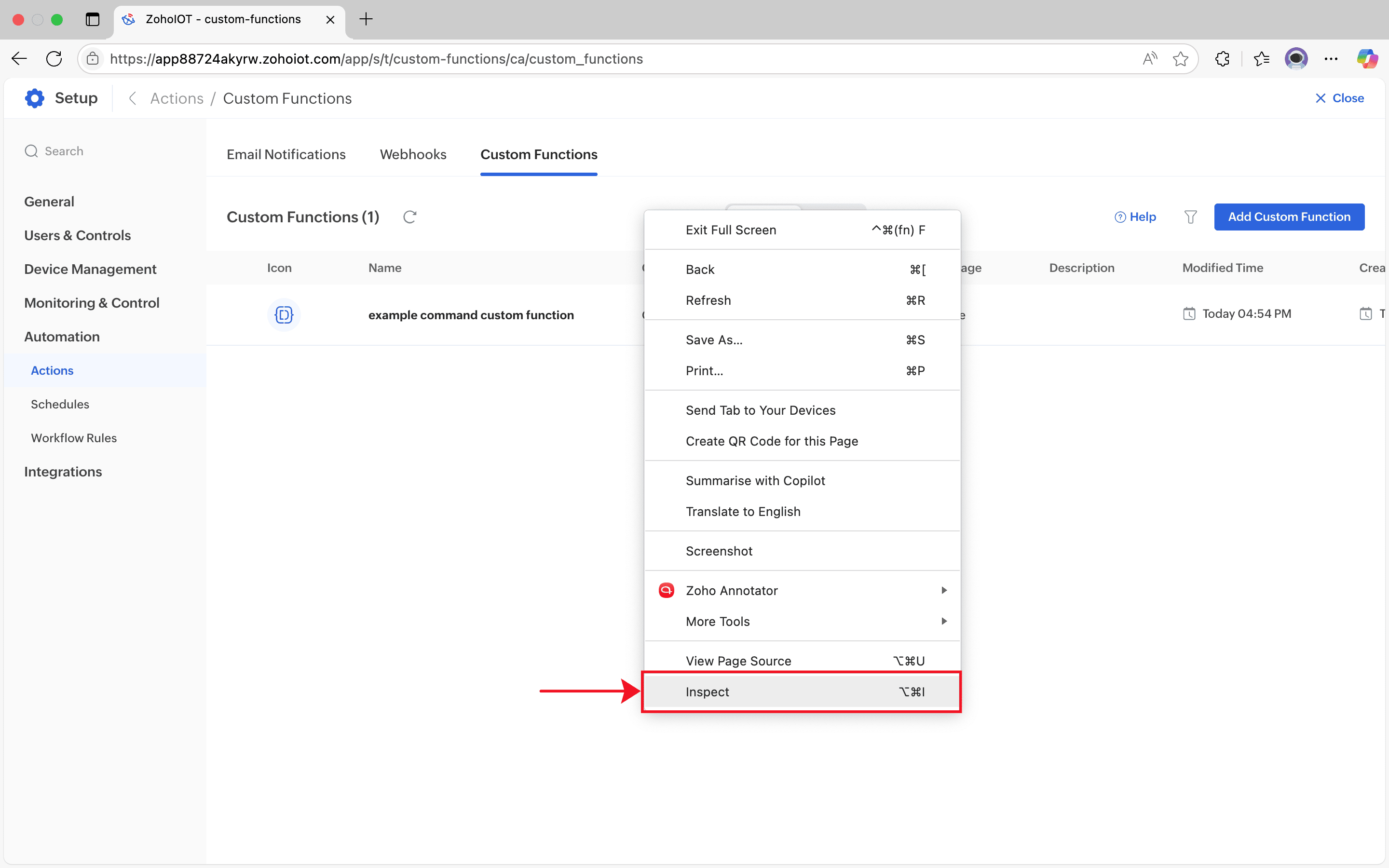

4. In the custom functions list view, right click on the page and select Inspect in the context menu.

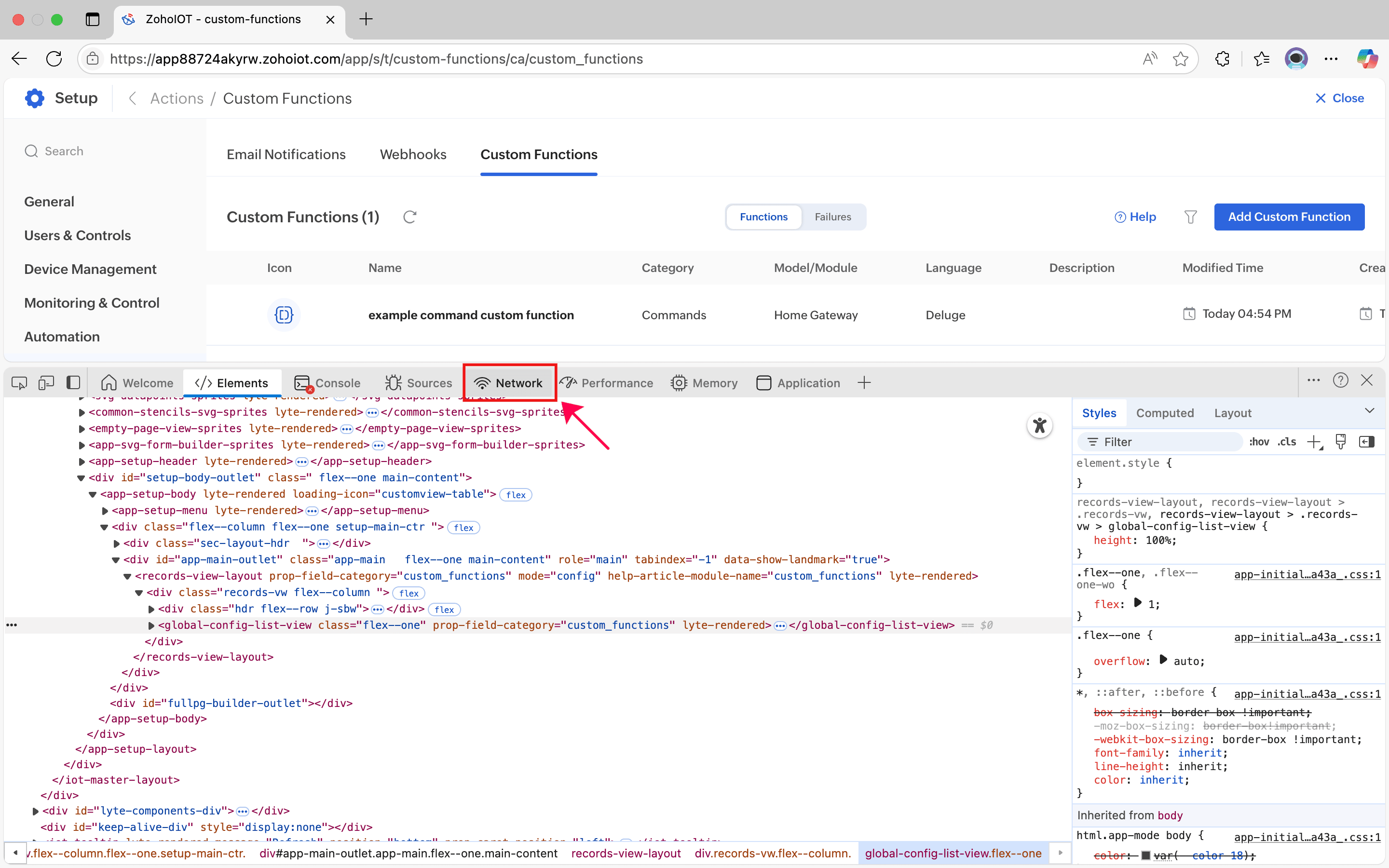

5. Select the Network tab.

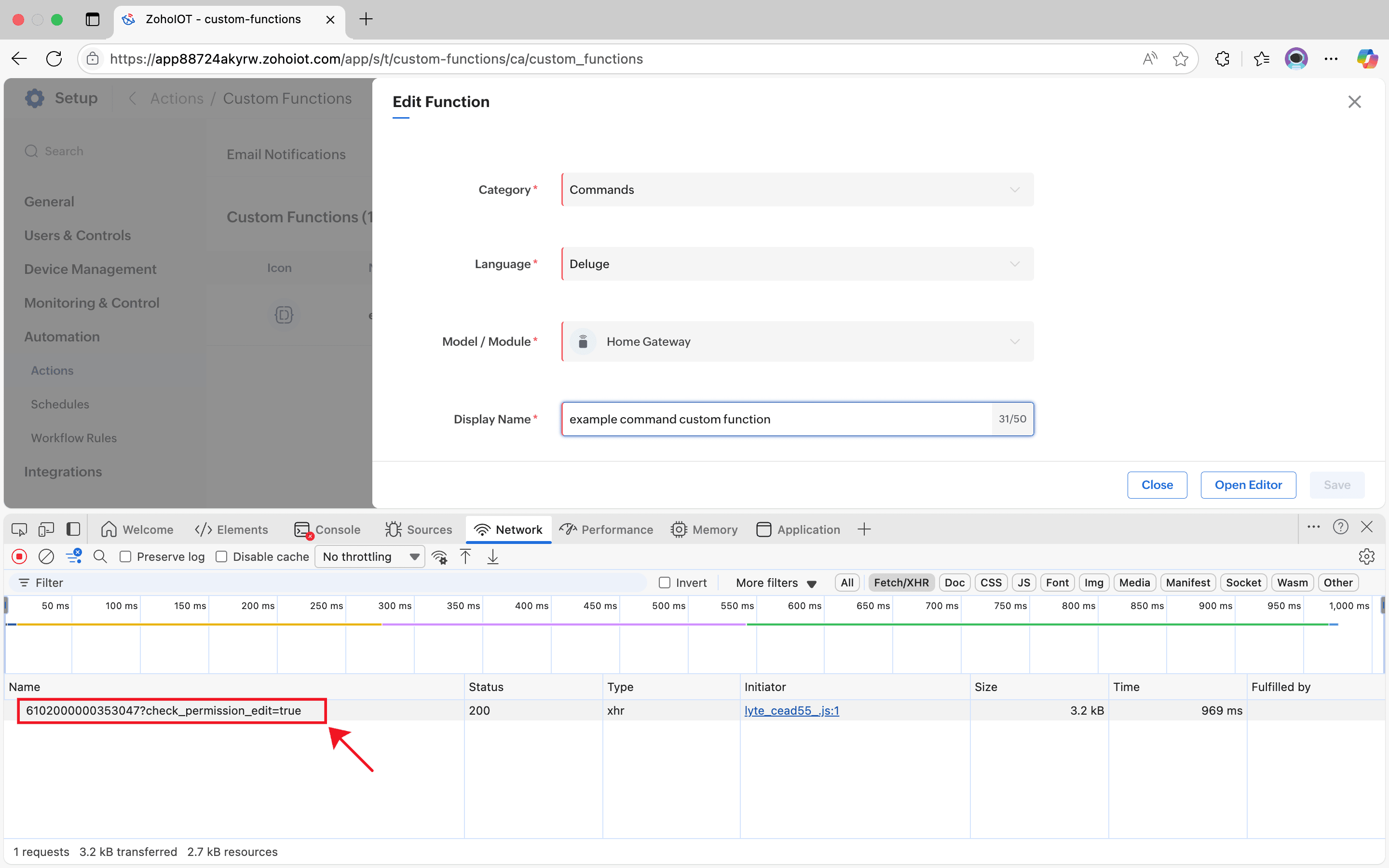

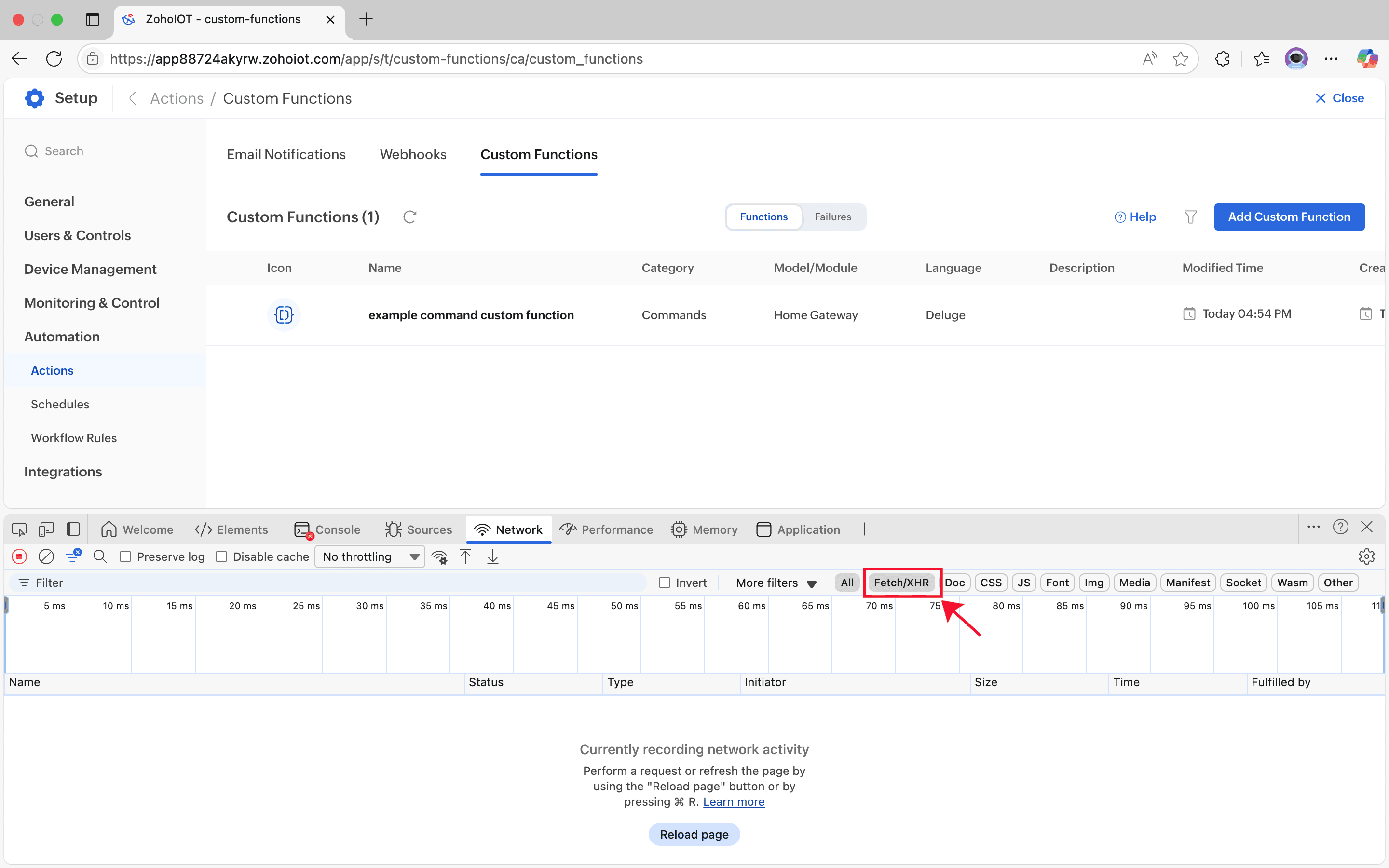

6. Select Fetch/XHR.




7. Now, click the required command custom function.




8. Click the value that appears in the Name Section of the inspect panel.

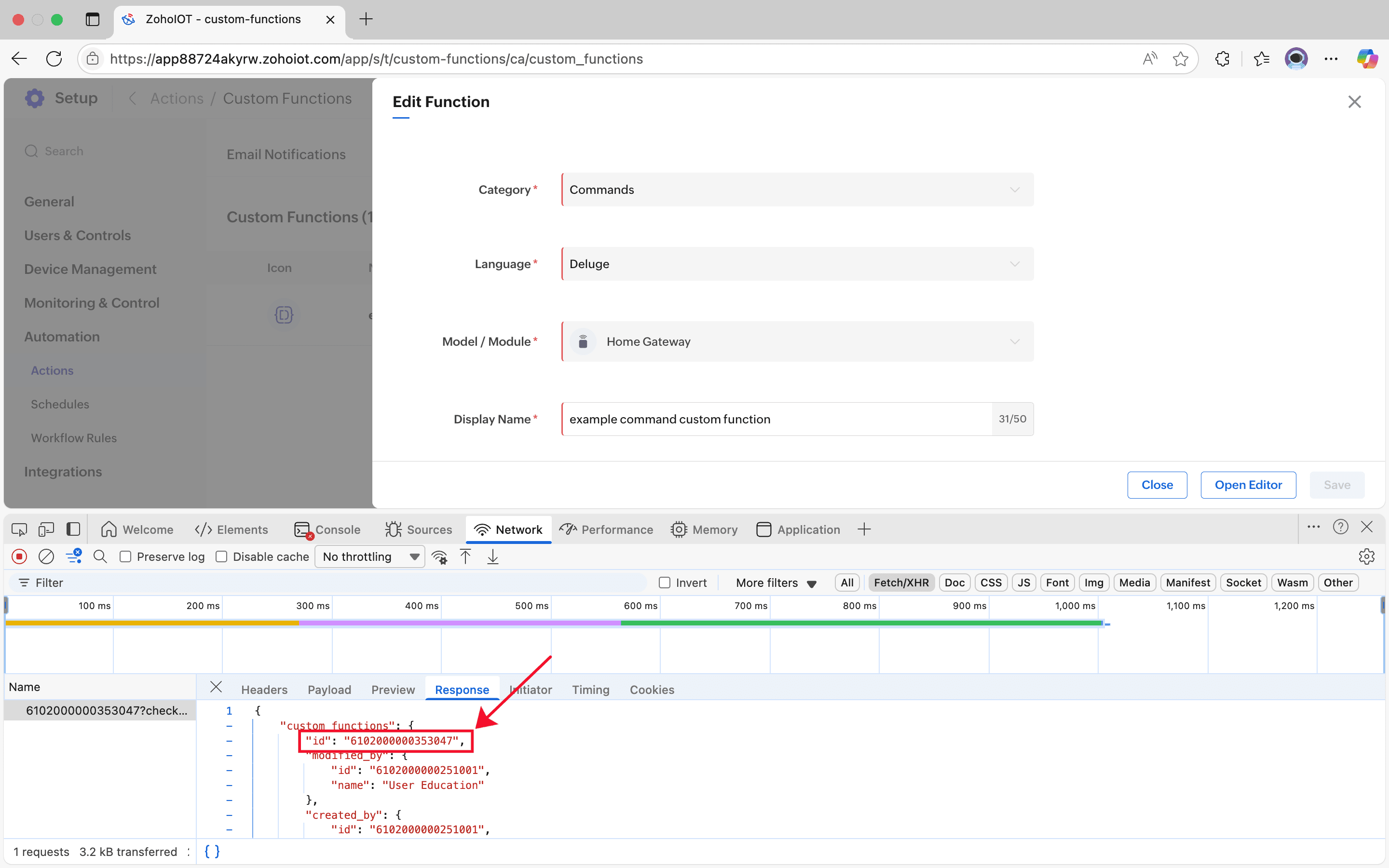

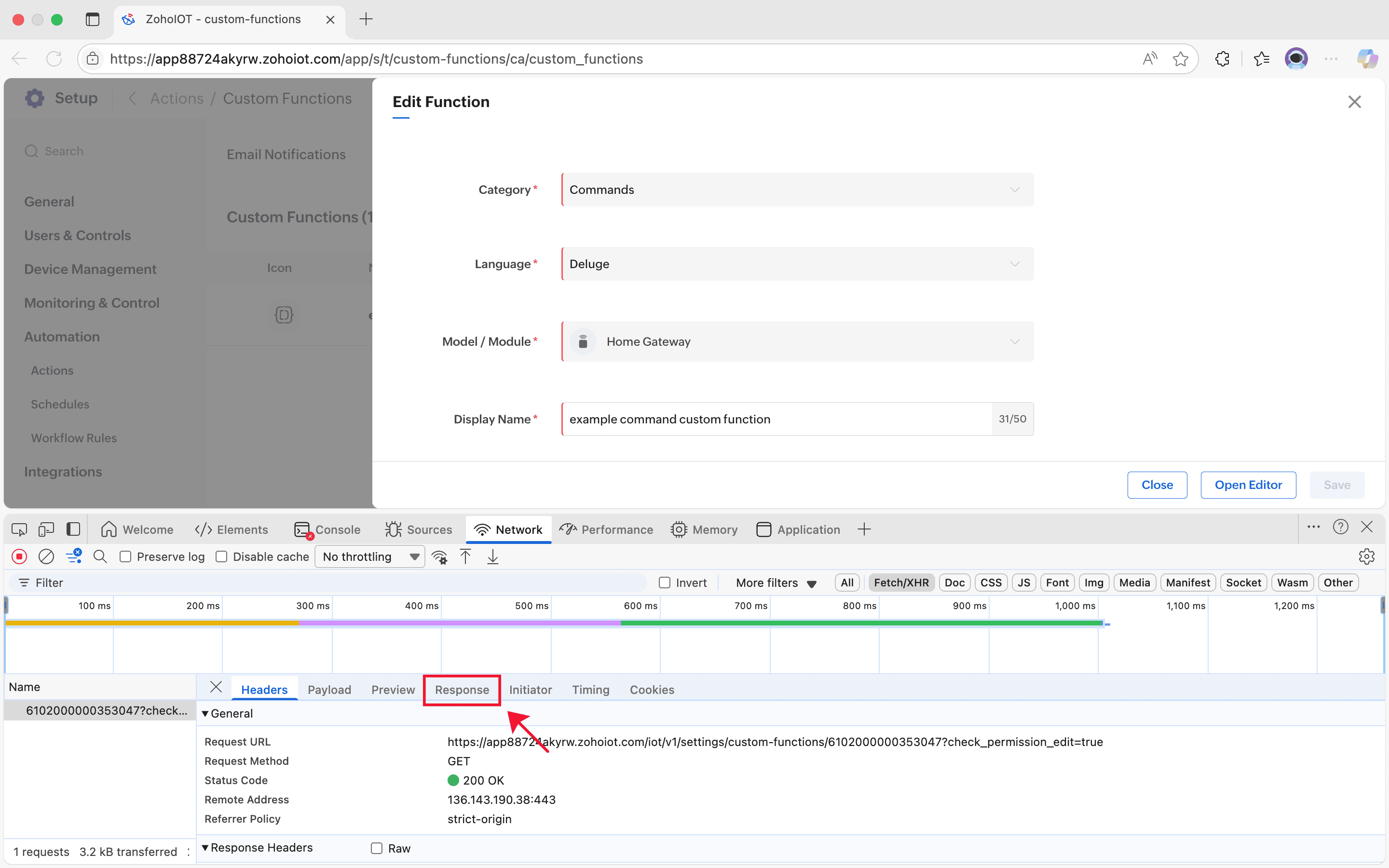

9. Select the Response tab.




10. From there, scroll up or down to get the 16 digit custom function ID.




Executing Association code

Note: Before proceeding with this step, make sure you have added the required Command Template to the selected model.

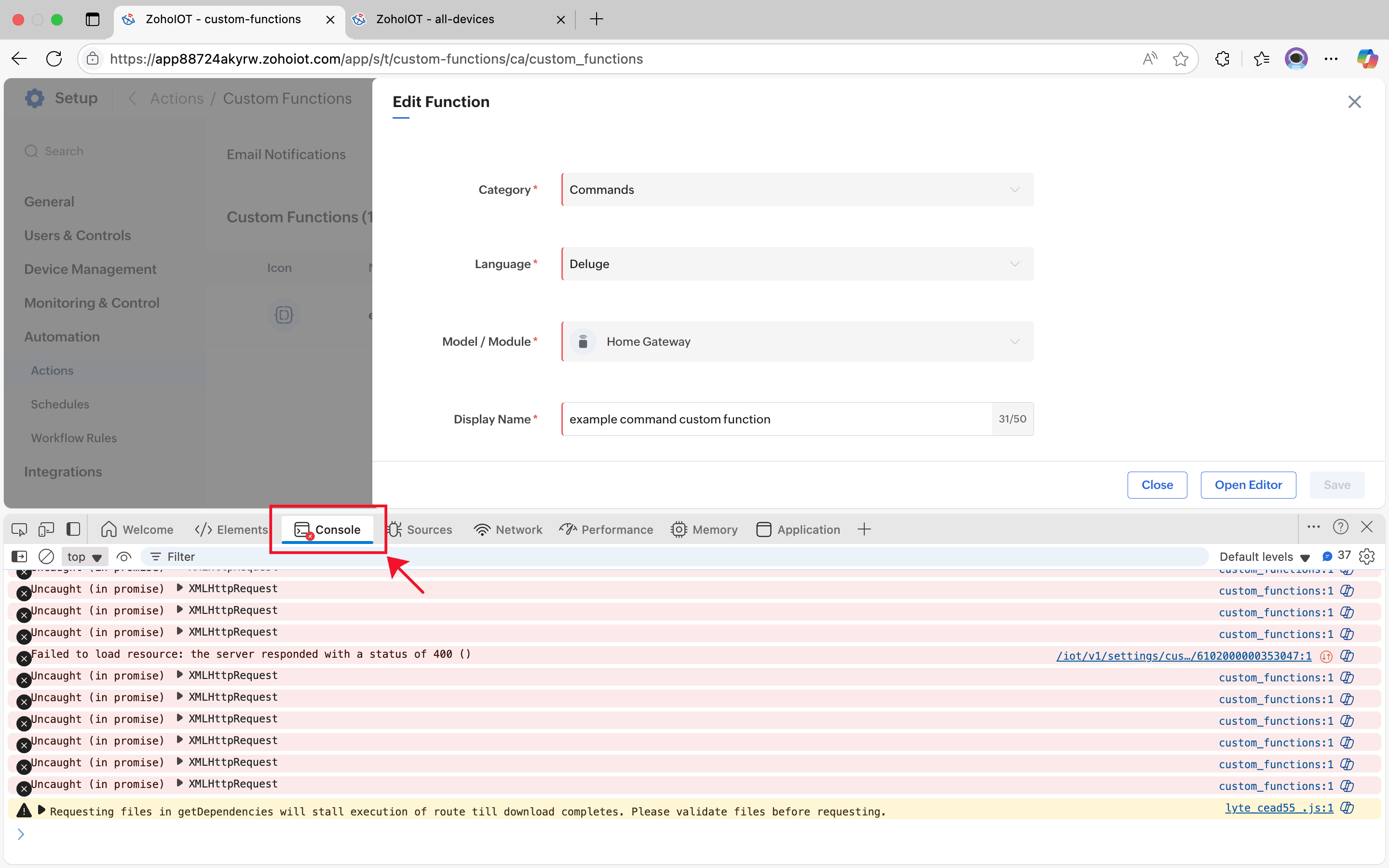

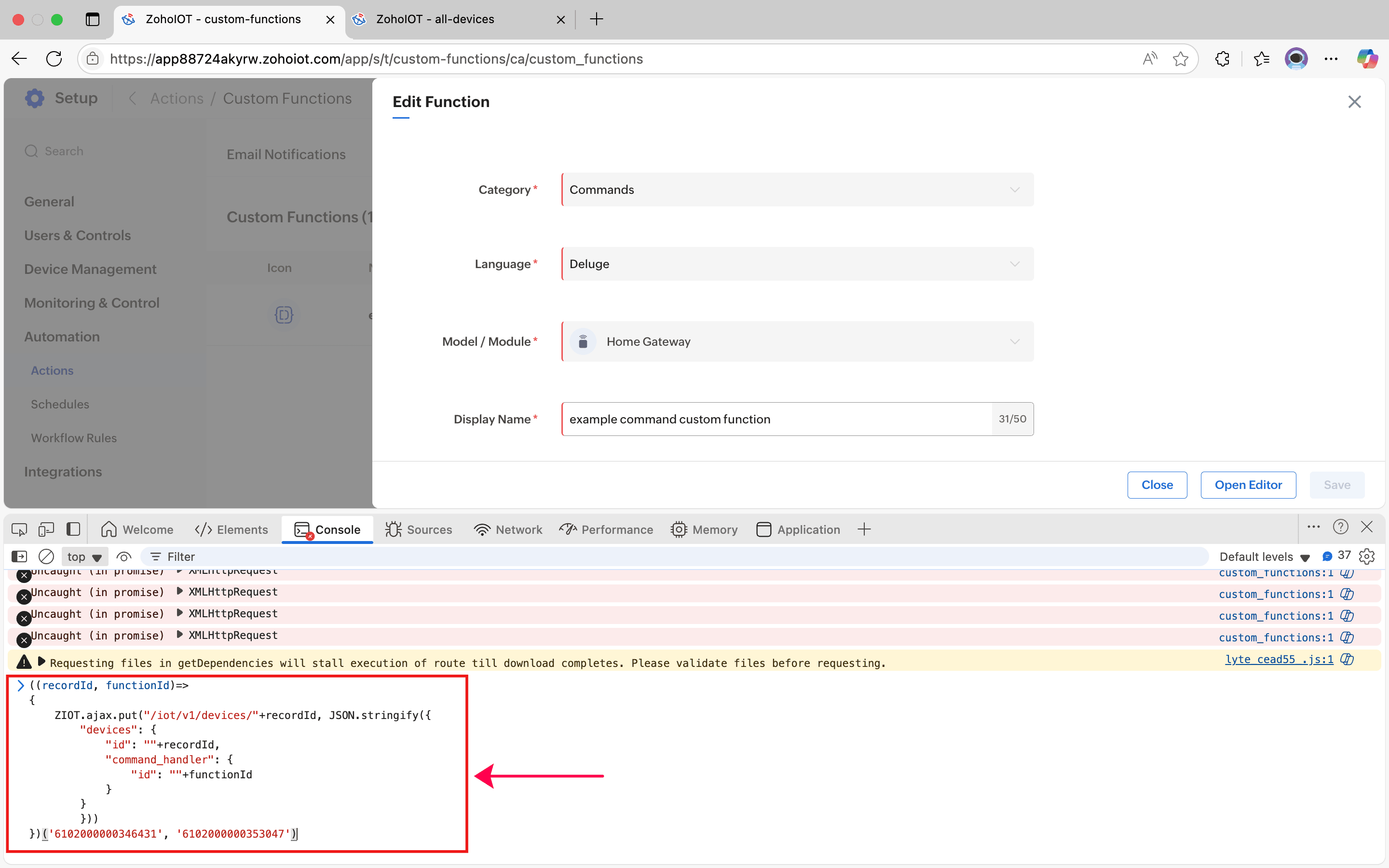

1. Select Console in the Inspect window.




2. Paste the following lines of code, with <device_ID > and <custom_function_ID> replaced with the actual values obtained.



   Code without DeviceID and CustomFunctionID



   ((recordId, functionId)=>
   {
       ZIOT.ajax.put("/iot/v1/devices/"+recordId, JSON.stringify({
           "devices": {
               "id": ""+recordId,
               "command_handler": {
                   "id": ""+functionId
               }
           }
           }))
   })('<device_id>', '<custom_function_id>')

   Code with DeviceID and CustomFunctionID



   ((recordId, functionId)=>
   {
       ZIOT.ajax.put("/iot/v1/devices/"+recordId, JSON.stringify({
           "devices": {
               "id": ""+recordId,
               "command_handler": {
                   "id": ""+functionId
               }
           }
           }))
   })('6102000000346431', '6102000000353047')




3. Press Enter.

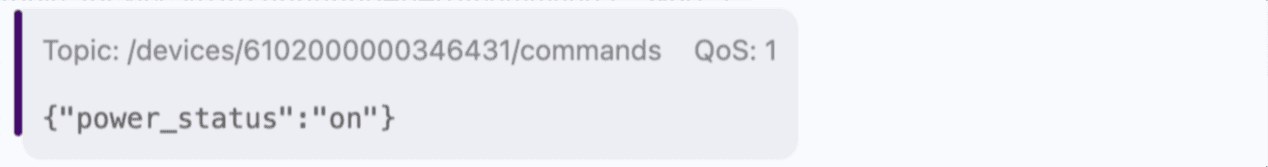

Executing the Command

The device (connected device, in the case of assets and locations) must be connected with the Zoho IoT application before executing the command.

Note: The below steps are applicable to both assets and locations.

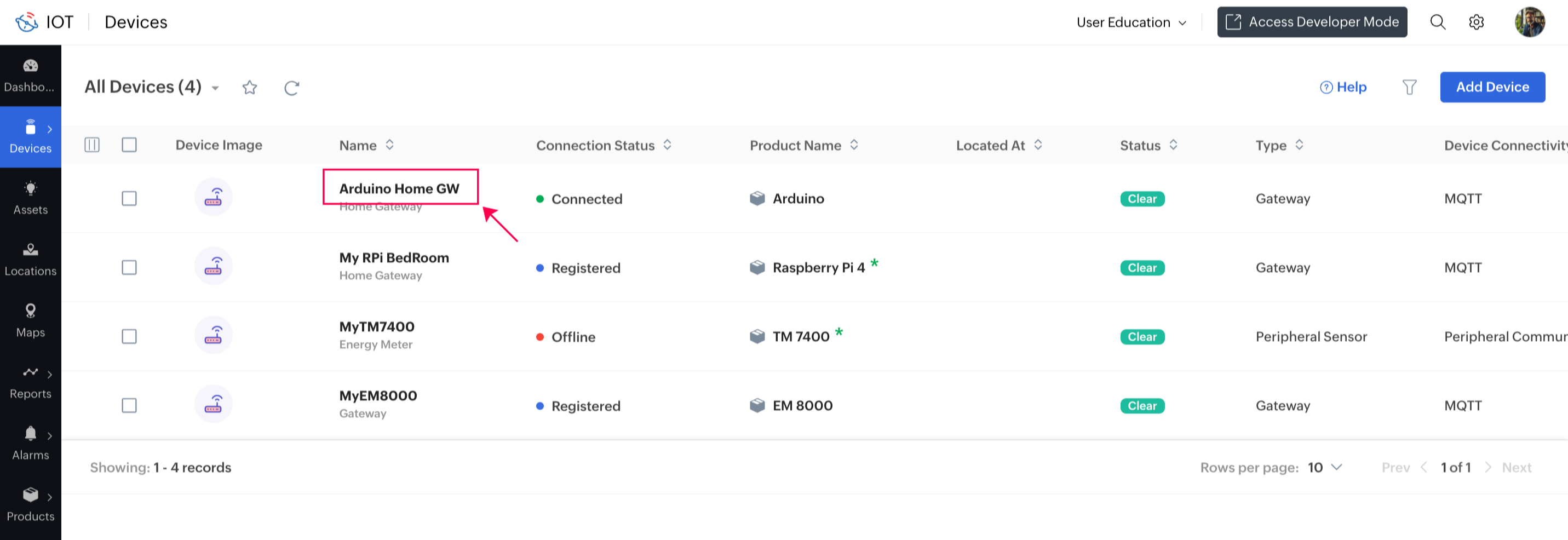

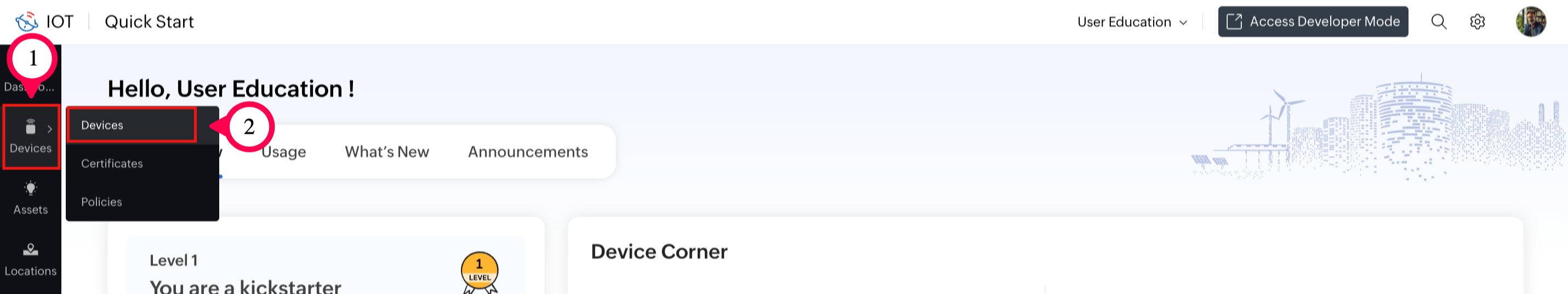

1. Navigate to Device > Device in the navigation pane.




2. Click the device for which you want to execute the command. For this illustration, Arduino Home GW is selected.

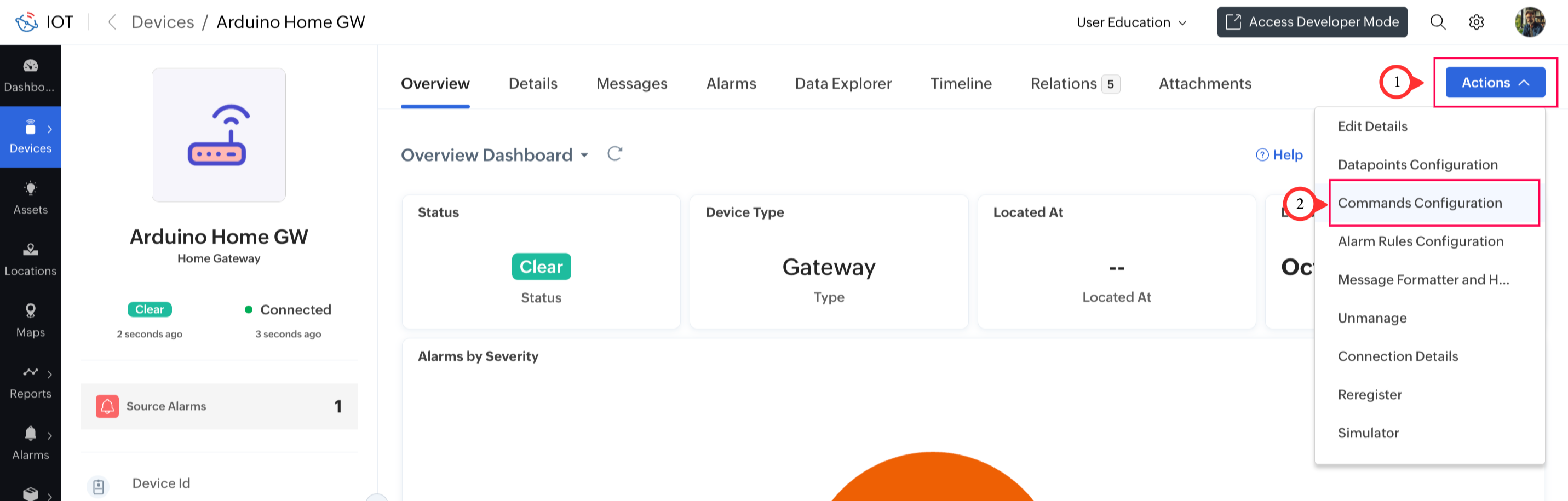

3. In the device information page, select Actions > Command Configuration.

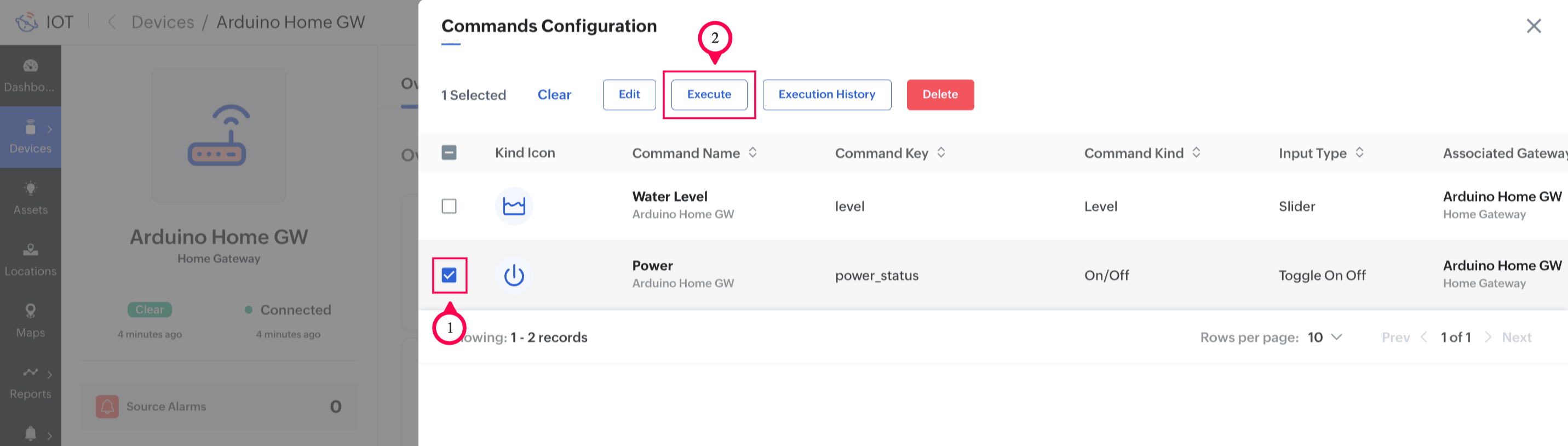

4. Check the box near the required command and click Execute.

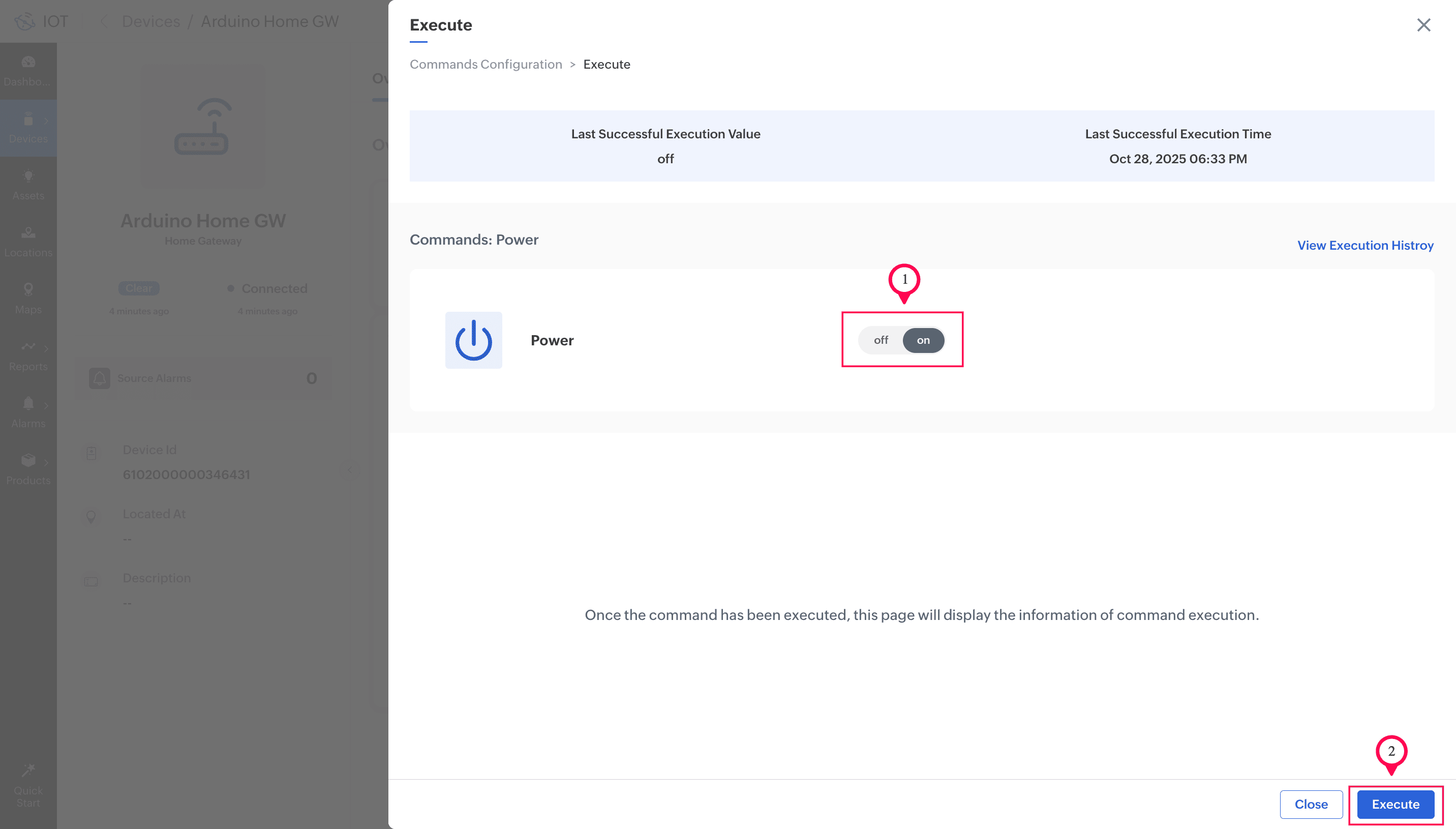

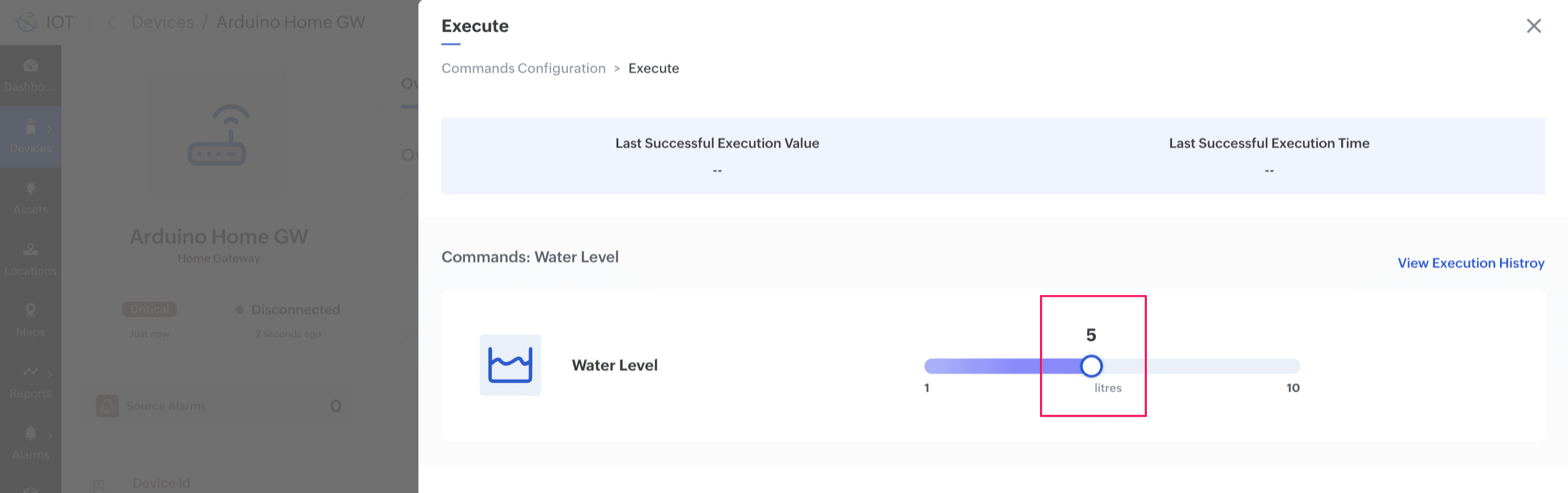

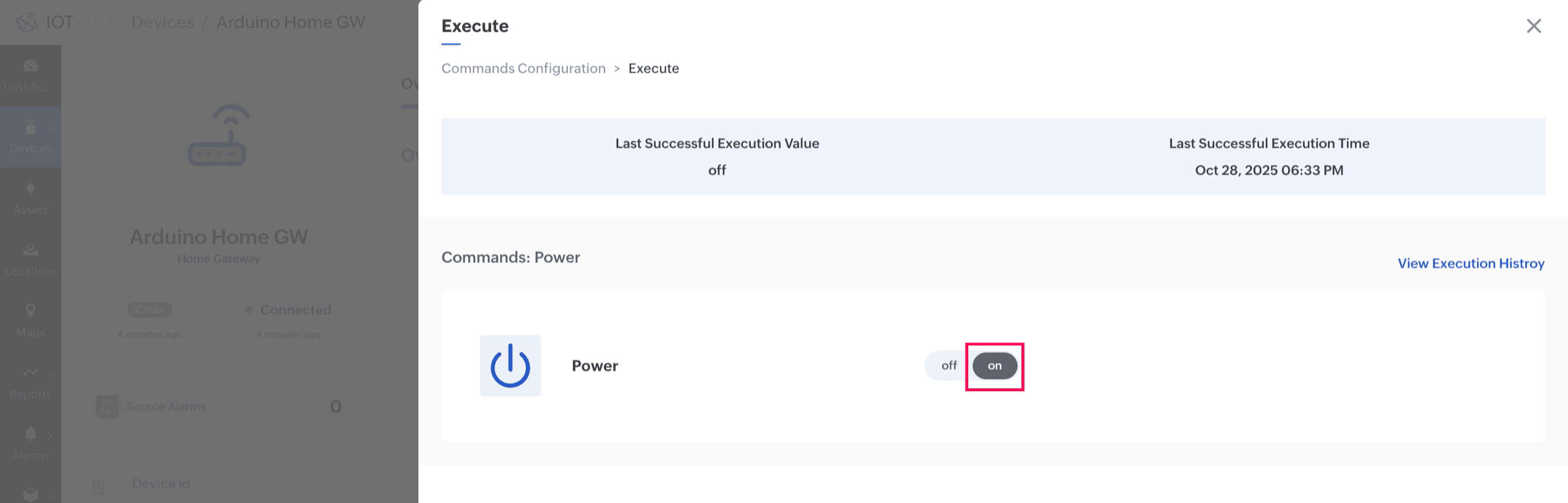

5. Select the required value and click Execute.

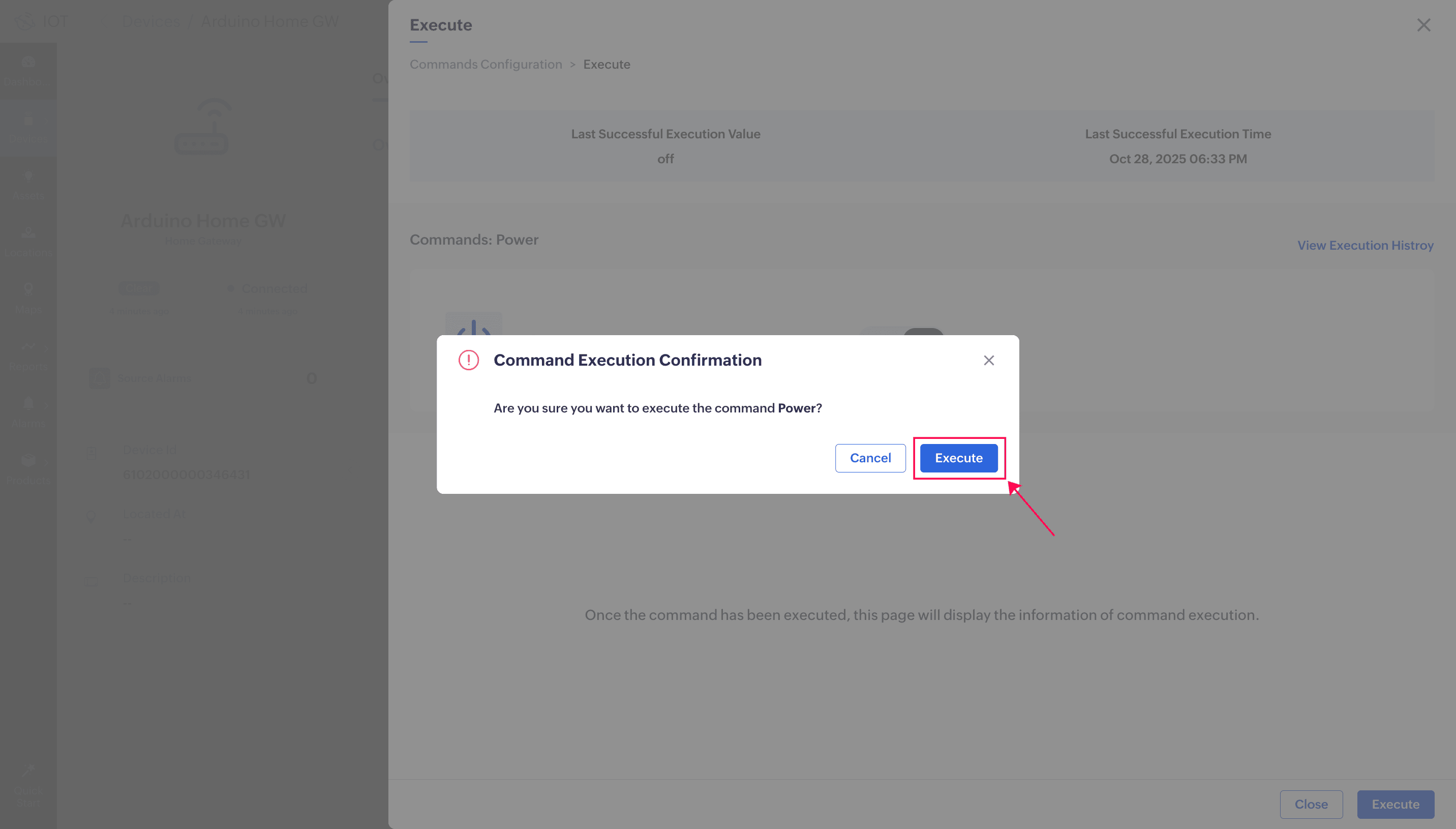

6. In the command execution confirmation dialog box, click Execute.

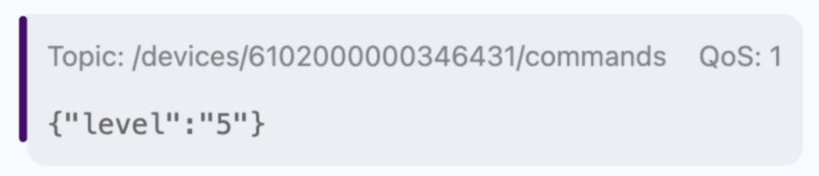

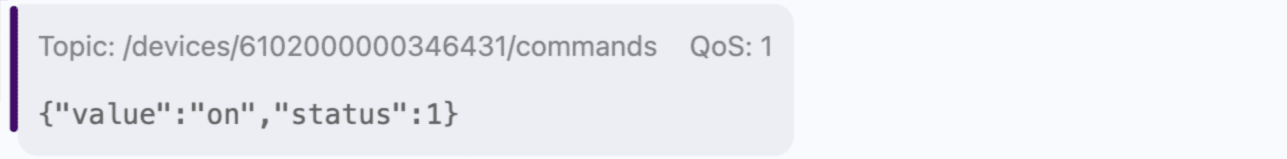

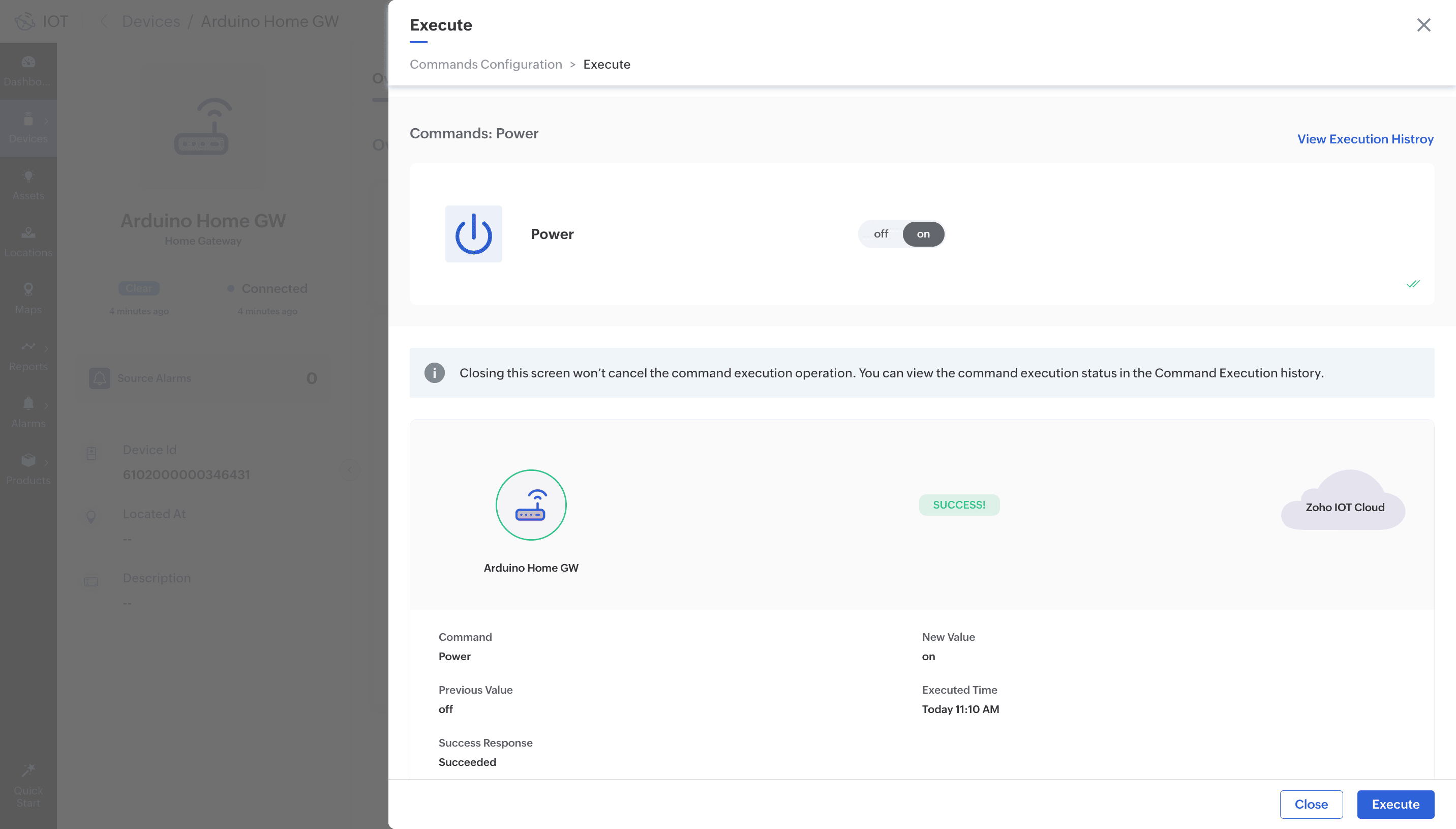

7. The command will be successfully executed.
