Web charts resemble a spider web, where its axes radiate out from the center and data points are plotted on each axis using a common scale. These charts are preferred for large sets of different data groups.
Web chart configuration includes setting values for the x and y axes.
To configure a column chart
- Edit your application.
- Select the required page, then open the page builder .
- Click the Chart option from the page elements menu on the left. A menu will slide in.

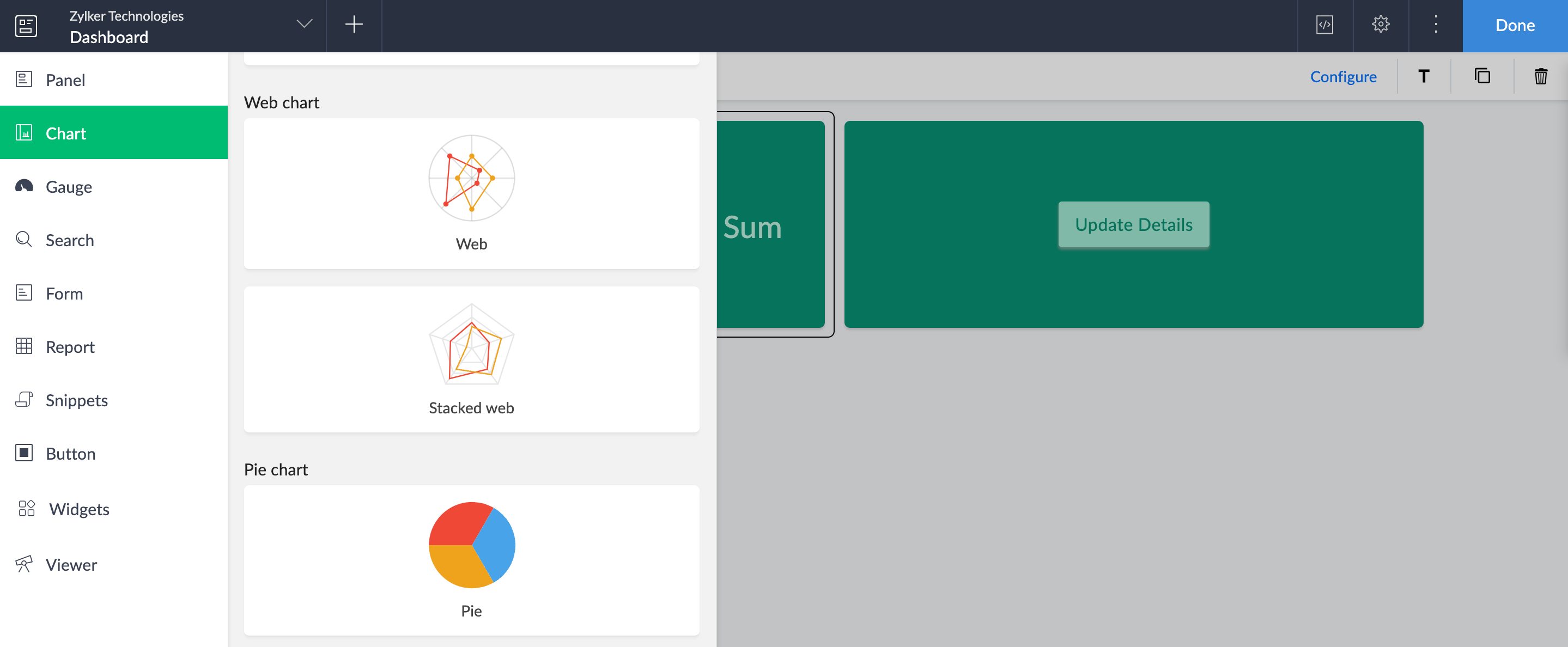

- Drag and drop a web chart from the chart gallery. The Chart Configuration pane slides in from the right.

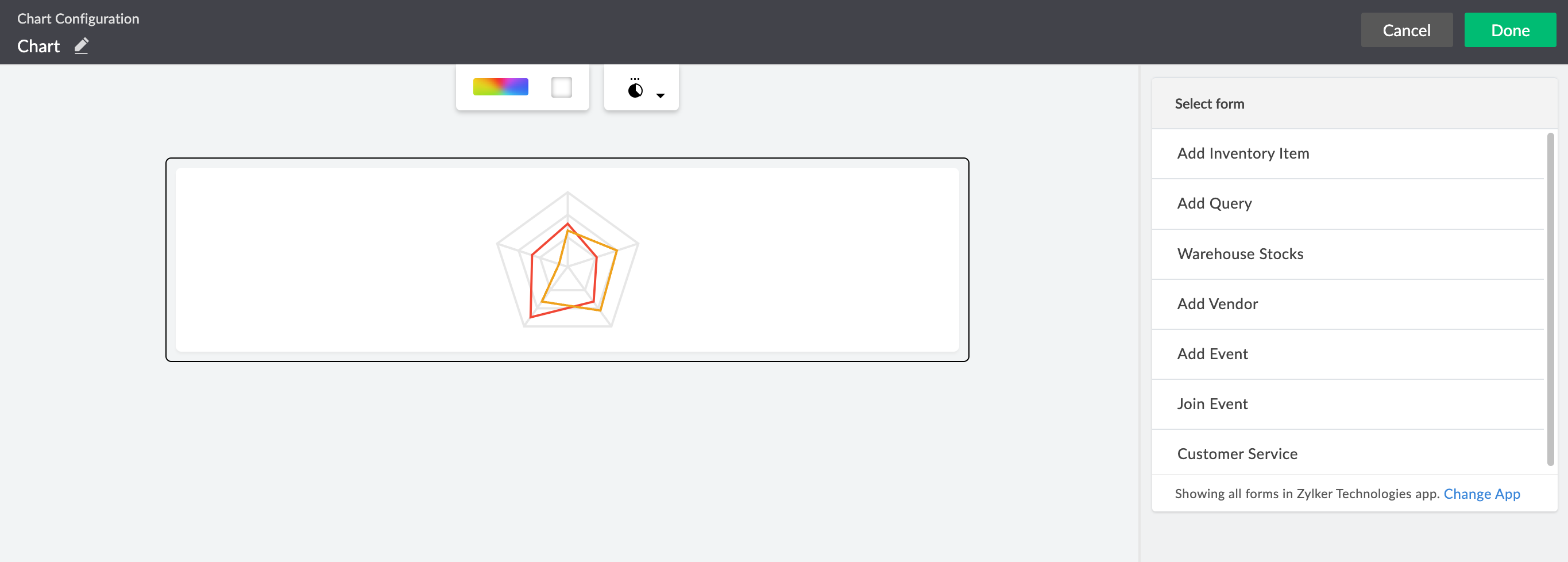

- Select a form to represent its data on the chart.
- Select a field to map the category axis (x-axis).
- Enter a label for the x-axis.
- Choose a value type to be displayed on the y-axis.
-
Aggregate : Display the aggregate such as Sum or Count of the field.
-
Actual : Display the actual value of the field.
-
- Enter a label for the y-axis.
- Evaluate for:
-
All Records : Evaluates for all the records in the form.
-
Selected Records : Evaluates for records based on the set criteria.
- To set criteria: Click Selected Records > Select Field > Select Operator > Enter a value . Choose AND or OR to add criteria.
-

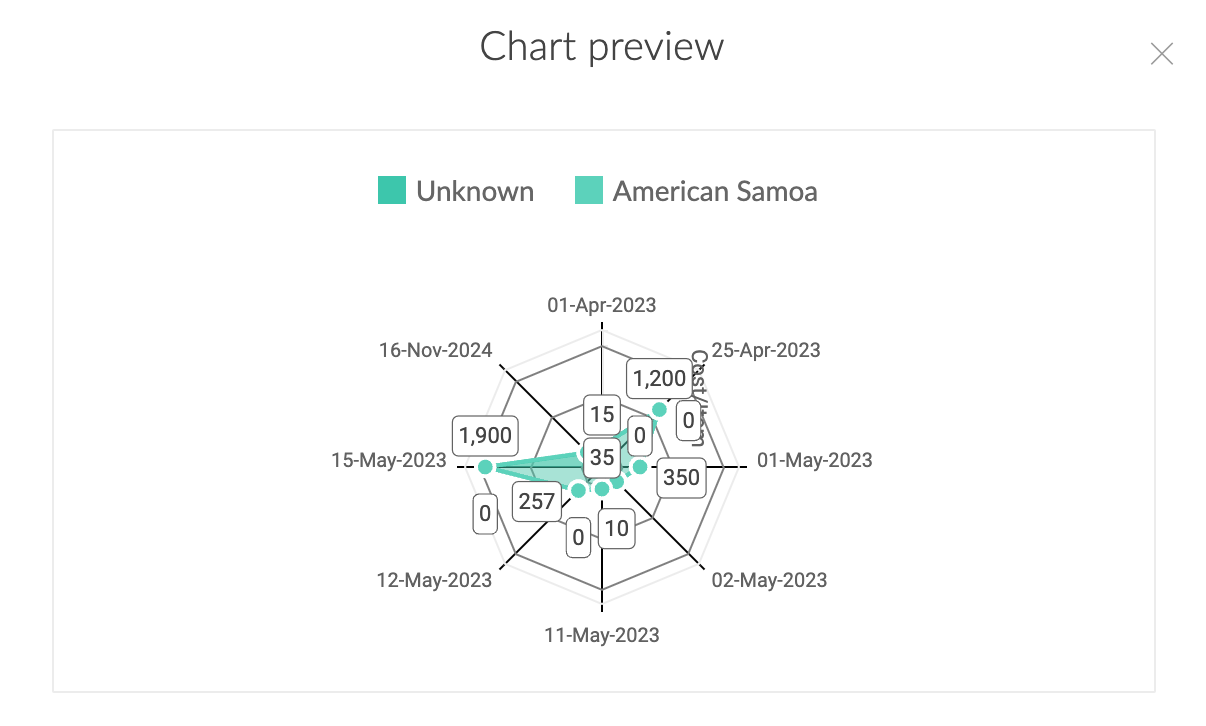

- Click the Preview option at the top right of the chart configuration sheet.
- Close the preview window and make further edits to the chart or click Done to confirm submission.
To configure a stacked web chart
- After Step 4 in the simple column chart configuration, choose a Stack by field from the drop down.
- Continue configuring from Step 5 . Below is a gif that shows the preview of a stacked web chart:
